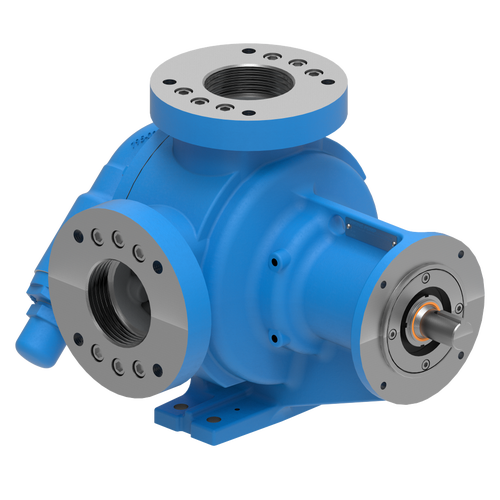

The RTPg Series™ internal gear tanker pump is the cost-effective cast iron option for your fleet. The RTPg delivers the reliability of our proven internal gear technology without the need for stainless steel. Enjoy smooth, quiet performance and the benefit of a fully rebuildable design—eliminating “throw away” pumps and reducing downtime. Proudly manufactured and assembled in the USA, the RTPg protects your bottom line while keeping your operations moving at flows up to 170 GPM (38 m³/h).
Features & Benefits
- Modular porting can accommodate ANSI 4 bolt flanges and NPT
- Long-lasting PTFE double lip seal located behind the shaft
- Only ONE bushing in the process fluid
- Easily rebuildable
Capacity
up to 170 GPM
up to 38 m3/h
Viscosity
to 2,500 SSU
to 540 cSt
Pressure
125 PSI
8.6 BAR
Temperature
to +250°F
to +120°C
Options
Porting
Drives
Mounting
Sealing
Specifications
| Model | Standard Port Size | Nominal Pump Rating (GPM) | Nominal Pump Rating (m³/h) | Maximum RPM | Maximum Pressure PSI | Maximum Pressure BAR |
|---|---|---|---|---|---|---|
| RTPg20 | 2 Inches | 135 GPM | 30 m³/h | 600 | 125 PSI | 8.6 BAR |
| RTPg30 | 3 Inches | 170 GPM | 38 m³/h | 600 | 125 PSI | 125 BAR |
Videos
Crude Oils
This is a very generic term for unrefined oils typically being recovered from the ground. Some crude oil may contain particulates from the oil well or recovery method. They are considered to be flammable liquids. Crude oils are later refined and used for everything from making plastics to gasoline.
Biofuels
Biofuels include Biodiesel and Ethanol. These are fuels made from renewable resources and typically blended with refined fuels as additives.
Lube Oil Blending
Local blending plants take bulk petroleum or synthetic base oils and mix them together with additives to create unique oil blends for specific applications and customers.
Asphalt Emulsions
Emulsions are asphalt suspended in a mixture with water or other liquids. This is done to ease the application of the asphalt. Uses would be crack filling, coating roadways, or waterproofing. These emulsions are shear sensitive and must be handled with care.
Paints
Paints are shear sensitive liquids that can have a variety of solvents & pigment load concentrations that bring with them abrasive wear and chemical compatibility concerns.
Inks
Inks for flexible packaging are shear sensitive liquids that can have a variety of solvents, waxes, surfactants, and semi-solid resin particles, and pigment load concentrations that bring with them abrasive wear and chemical compatibility concerns.
Caustic (Sodium Hydroxide)
Sodium hydroxide is soluble in water, alcohol and glycerol. It is used in the manufacture of other chemicals, rayon and film, petroleum refining, pulp and paper, making of aluminum, refining vegetable oil, in detergents, soaps, textile processing, in reclaiming rubber and as an alkali in foods. The viscosity ranges from water-thin to 40 cP depending on concentration and temperature.
Edible Oils
This group of oils may consist of olive, palm, soybean, canola, pumpkin seed, corn, sunflower, safflower, peanut, grape seed, sesame, and rice bran or a blend of these oils that is typically referred to as vegetable oil.
Cooking Oils
Hot cooking oils are used primarily for deep fat frying of vegetables and meats. Some cooking oils or fats will become solid at room temperature, however the pumps are typically located close enough to the supply that it keeps the pump warm. The viscosity is typically water-thin at normal operating temperatures.
Sugar Solution
A generic term used to describe a mixture of water with a sweetener such as sucrose derived from sugar cane or sugar beets.
