The GB-414 Series™ is the ultimate solution for pipeline injection applications. The rebuildable design is a direct drop-in replacement for Viking Pump's Gen 2 GP-414 Series™ and features new advanced materials on critical internal wear surfaces. It can handle flows up to 210 GPM.

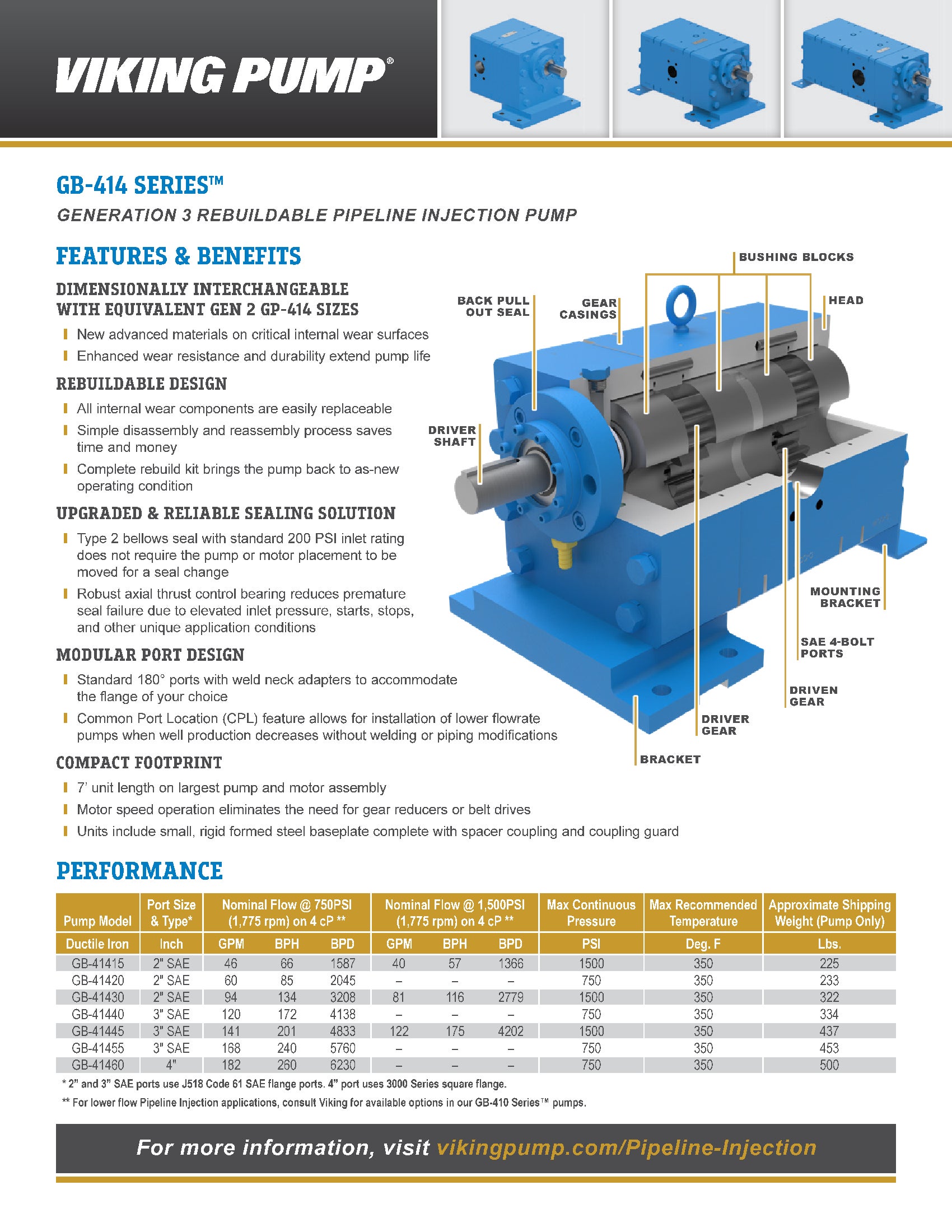

Features & Benefits
Dimensionally Interchangeable with Equivalent Gen 2 GP-414 Sizes
- New advanced materials on critical internal wear surfaces
- Enhanced wear resistance and durability extend pump life
Rebuildable Design
- All internal wear components are easily replaceable
- Simple disassembly and reassembly process saves time and money
- Complete rebuild kit brings the pump back to as-new operating condition
Upgraded and Reliable Sealing Solution
- Type 2 bellows seal with standard 200 PSI inlet rating does not require the pump or motor placement to be moved for a seal change
- Robust axial thrust control bearing reduces premature seal failure due to elevated inlet pressure, starts, stops, and other unique application conditions
Modular Port Design
- Standard 180⁰ ports with weld neck adapters to accommodate the flange of your choice
- Common Port Location (CPL) feature allows for installation of lower flowrate pumps when well production decreases without welding or piping modifications
Compact Footprint
- 7’ unit length on largest pump and motor assembly
- Motor speed operation eliminates the need for gear reducers or belt drives
- Units include small, rigid formed steel baseplate complete with spacer coupling and coupling guard
Video file
Photos
Videos
Crude Oils
This is a very generic term for unrefined oils typically being recovered from the ground. Some crude oil may contain particulates from the oil well or recovery method. They are considered to be flammable liquids. Crude oils are later refined and used for everything from making plastics to gasoline.
