The SG Series™ spur gear pump is the ideal solution for pipeline injection, pipeline sampling, oil polishing, and more due to its high pressure capabilities and efficiencies. It can handle flows up to 190 GPM (719 LPM).
Features & Benefits
- Needle bearings provide high pressure capabilities, sleeve bear options available
- Close-coupled motor mount or foot bracket options to match space or motor requirements
- Double pump configurations offer two flow rates operating from a single power source, reducing equipment costs
Capacity
to 190 GPM
to 43 m³/h
Viscosity
28 to 1,000,000 SSU
1 to 250,000 cSt
Pressure
to 500 PSI
to 34 Bar
Temperature
-40 to +450 °F
-40 to +230 °C
Options
Porting
Drives
Mounting
Sealing
Specifications
Standard Size | Standard Port Inches | Nominal Capacity At 1750 RPM (GPM) | Nominal Capacity At 1750 RPM (LPM) | Continuous Pressure* PSI | Continuous Pressure* BAR |
---|---|---|---|---|---|
SG-0417 / 4041 | 0.375 | 0.06 | 0.23 | 500 | 34 |
SG-0418 / 40418 | 0.375 | 0.14 | 0.53 | 500 | 34 |
SG-0425 / 40425 | 0.375 | 0.18 | 0.68 | 500 | 34 |
SG-0470 / 40470 | 0.375 | 0.5 | 1.89 | 500 | 34 |
SG-0518 / 40518 / 80518 | 0.375 | 0.7 | 2.6 | 500 | 34 |
SG-0525 / 40525 / 80525 | 0.5 | 1 | 3.8 | 500 | 34 |
SG-0535 / 40335 / 80535 | 0.5 | 1.4 | 5.3 | 500 | 34 |
SG-0550 / 40550 / 80550 | 0.5 | 2 | 7.6 | 500 | 34 |
SG-0570 / 40570 / 80570 | 0.5 | 2.8 | 10.6 | 500 | 34 |
SG-0510 / 40510 / 80510 | 0.5 | 4 | 15.1 | 500 | 34 |
SG-0514 / 40514 / 80514 | 0.75 | 5.6 | 21.2 | 500 | 34 |
SG-0519 / 40519 / 80519 | 0.75 | 7.6 | 28.8 | 200 | 14 |
SG-0528 / 40528 / 80528 | 0.75 | 11.2 | 42.4 | 100 | 7 |
SG-0729 / 40729 / 80729 | 1 | 2.8 | 10.6 | 500 | 34 |
SG-0741 / 40741 / 80741 | 1 | 4 | 15.1 | 500 | 34 |
SG-0758 / 40758 / 80758 | 1 | 5.6 | 21.2 | 500 | 34 |
SG-0782 / 40782 / 80782 | 1 | 8 | 30.3 | 500 | 34 |
SG-0711 / 40711 / 80711 | 1 | 11.2 | 42.4 | 500 | 34 |
SG-0716 / 40716 / 80716 | 1 | 16 | 61 | 500 | 34 |
SG-0722/ 40722 / 80722 | 1.50 X 1.25 | 22 | 83 | 500 | 34 |
SG-0732 / 40732 / 80732 | 1.50 X 1.25 | 32 | 121 | 500 | 34 |
SG-1009 / 41009 | 1 | 16 | 61 | 500 | 34 |
SG-1013 / 41013 | 1.5 | 25 | 95 | 500 | 34 |
SG-1026 / 41026 | 2 | 50 | 189 | 500 | 34 |
SG-1420 / 41420 | 2 | 70 | 265 | 500 | 34 |
SG-1436 / 41436 | 3 | 125 | 473 | 290 | 20 |
SG-1456 / 41456 | 4 | 190 | 719 | 190 | 13 |
*Intermittent Pressure Rating to 2500 psi (170 bar) max available, size and seal dependent |
Videos

Biofuels
Biofuels include Biodiesel and Ethanol. These are fuels made from renewable resources and typically blended with refined fuels as additives.

Refined Fuels
Refined fuels would include petroleum based fuel oils and some Jet Fuels. Their viscosity and temperature handled can vary greatly. Normally these are handled in bulk transfer operations.

Lube Oil (Machinery Lubrication)
Machinery lubrication pumps are used in everything from small backup generators to naval ships. Lube oils, as the name implies, are the liquids used to lubricate rotating and reciprocating machinery. Lube oils may be handled at higher pressures to ensure their penetration of the equipment.

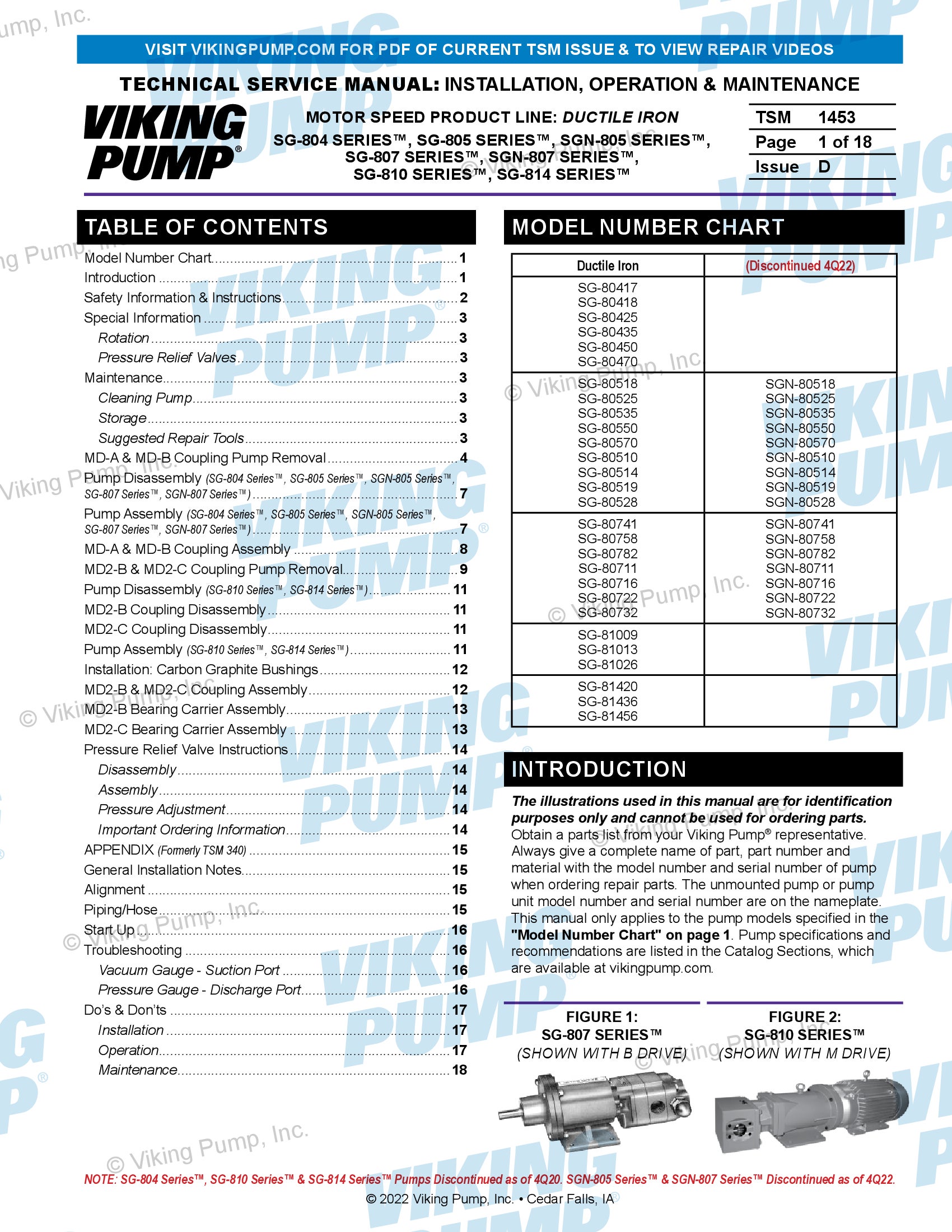

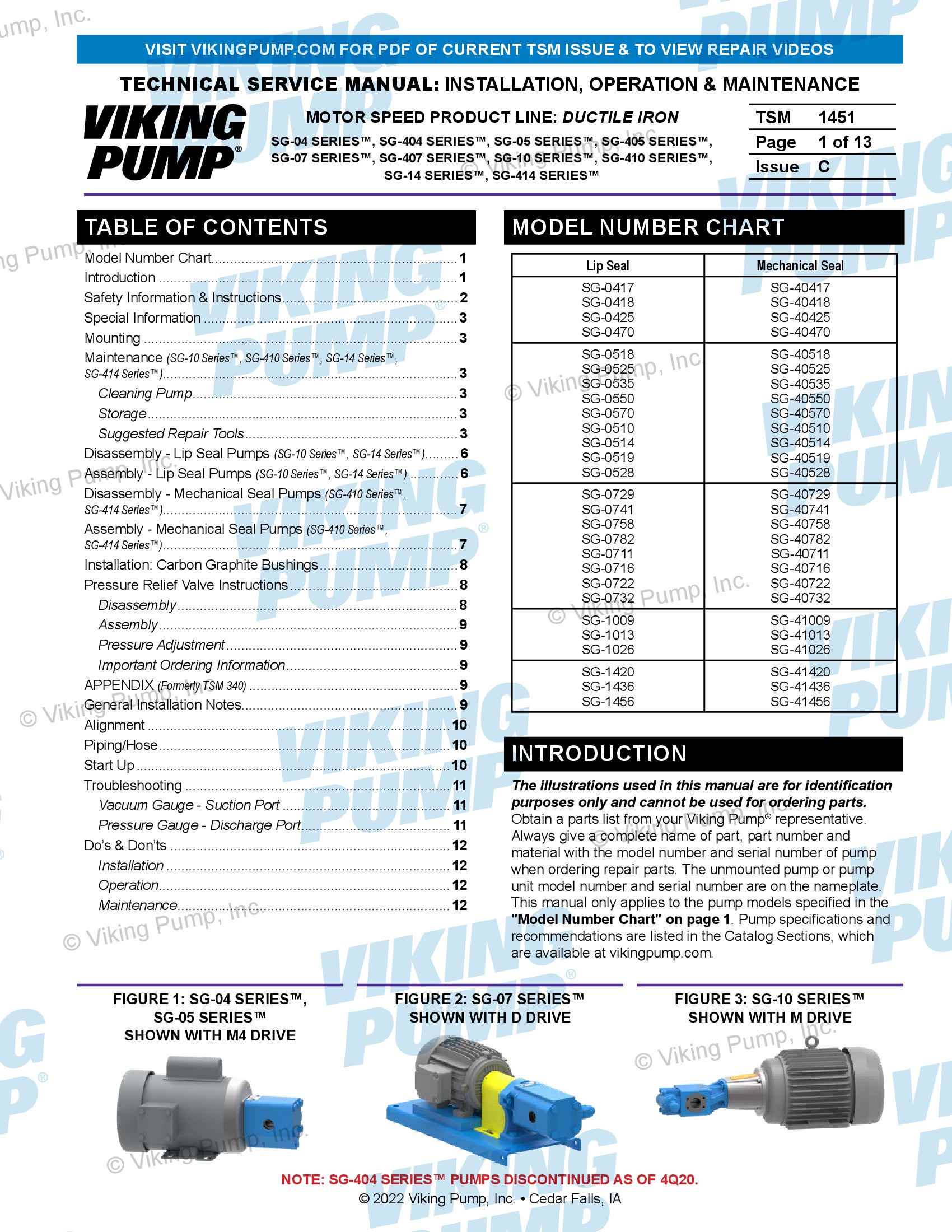

Technical Service Manuals
Technical Service Manuals

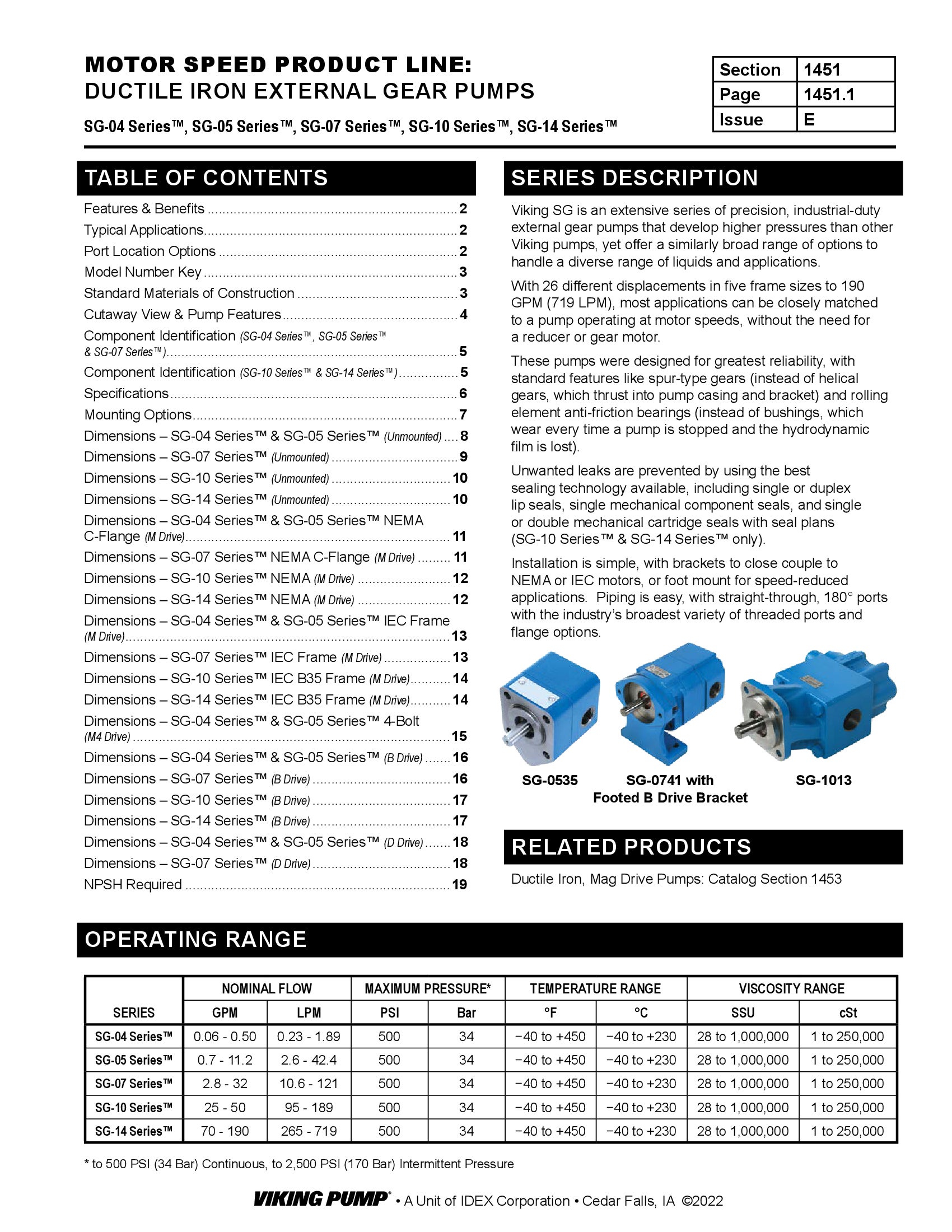

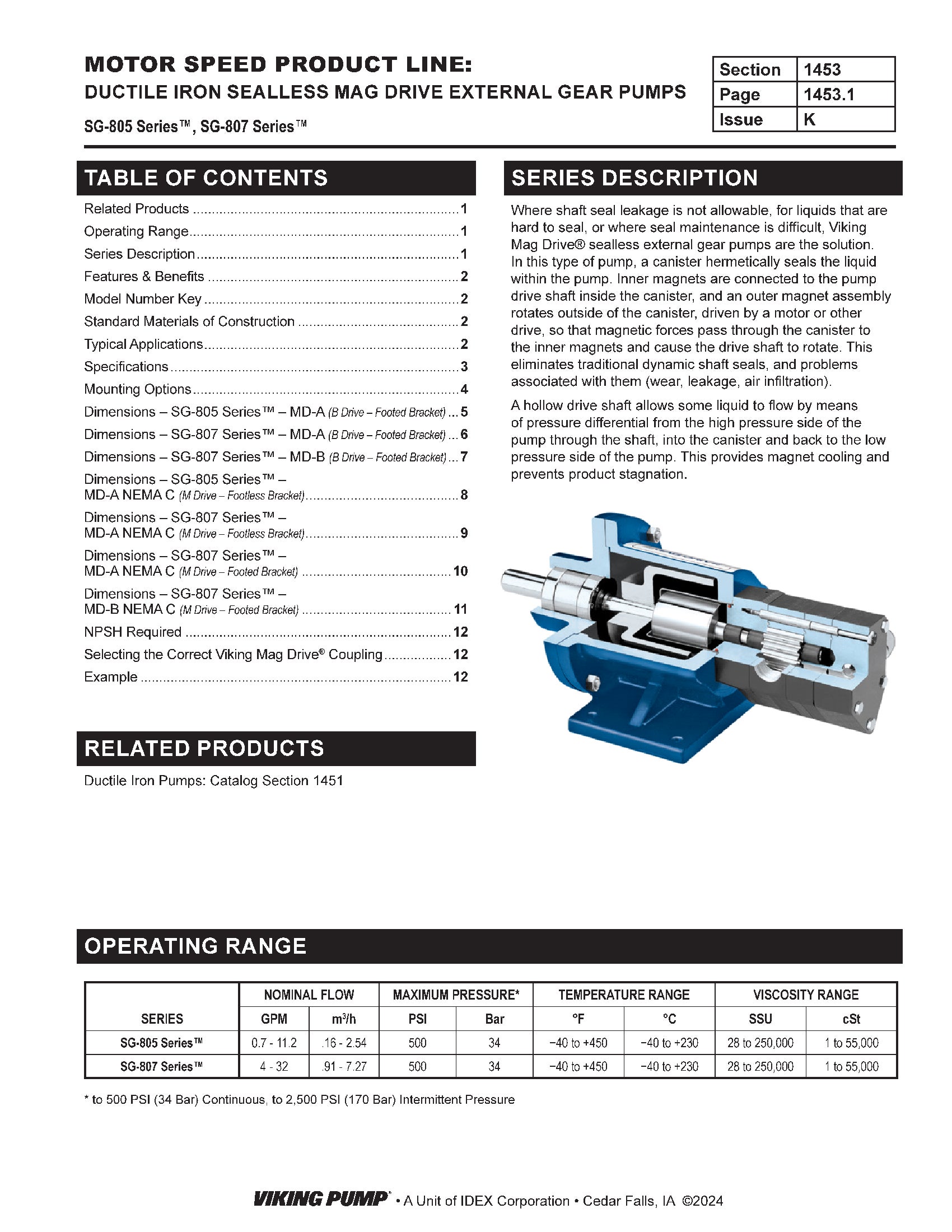

Catalog Sections
Catalog Sections

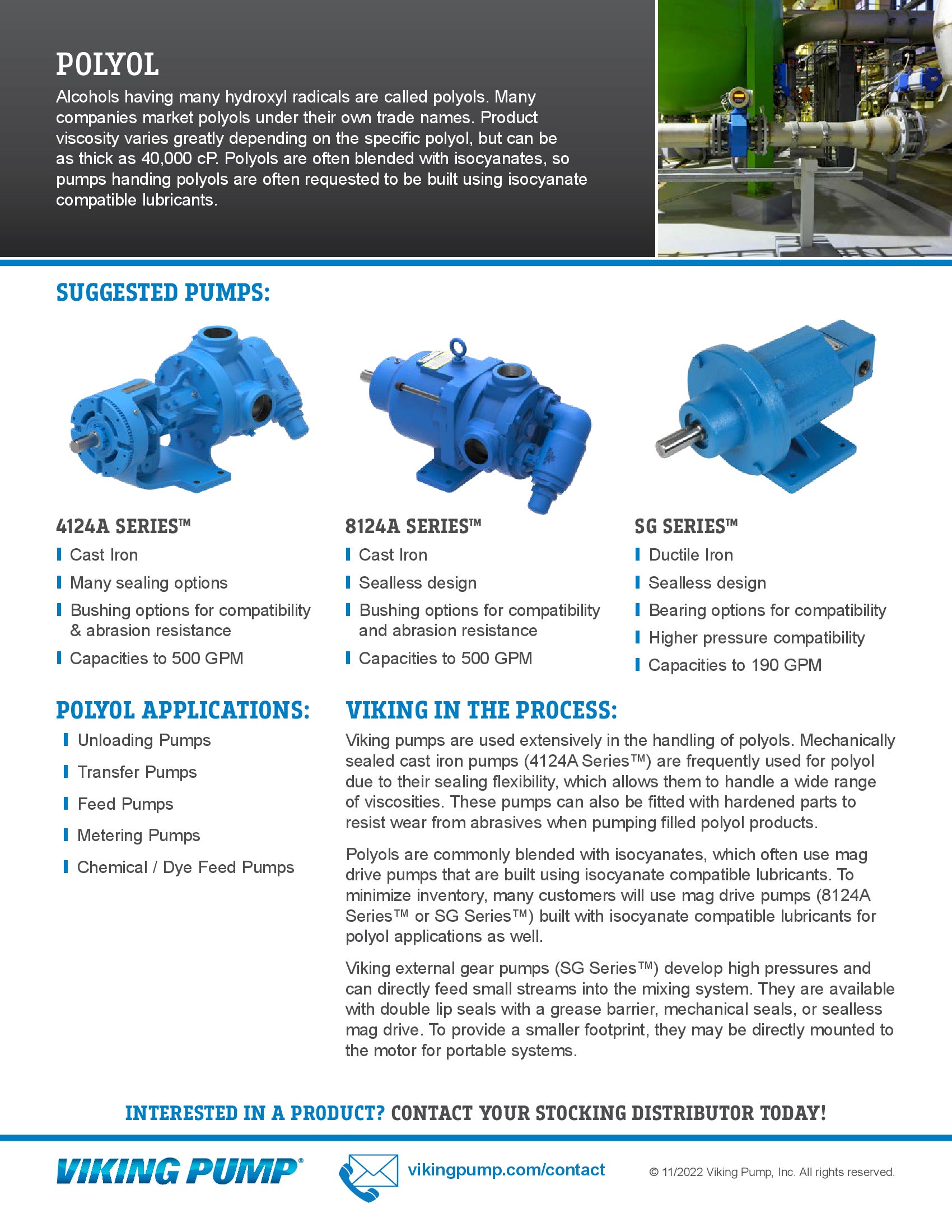

Product Flyers
-
DRAWINGS
SG0425 with Plain Head- 0.375" NPT Opposite PDF
SGN0425 with Plain Head- 0.375" NPT Opposite PDF
SG40510 with Relief Valve - 0.5" NPT Opposite PDF
SGN40510 with Relief Valve - 0.5" NPT Opposite PDF
SG0510 with Relief Valve - 0.5" NPT Opposite PDF
SGN0510 with Relief Valve - 0.5" NPT Opposite PDF
SG40514 with Relief Valve - 0.75" NPT Opposite PDF
SGN40514 with Relief Valve - 0.75" NPT Opposite PDF
SG0514 with Relief Valve - 0.75" NPT Opposite PDF
SGN0514 with Relief Valve - 0.75" NPT Opposite PDF
SG40518 with Relief Valve - 0.5" NPT Opposite PDF
SGN40518 with Relief Valve - 0.5" NPT Opposite PDF
SG0518 with Relief Valve - 0.5" NPT Opposite PDF
SGN0518 with Relief Valve - 0.5" NPT Opposite PDF
SG40519 with Relief Valve - 0.75" NPT Opposite PDF
SGN40519 with Relief Valve - 0.75" NPT Opposite PDF
SG0519 with Relief Valve - 0.75" NPT Opposite PDF
SGN0519 with Relief Valve - 0.75" NPT Opposite PDF
SG40525 with Relief Valve - 0.5" NPT Opposite PDF
SGN40525 with Relief Valve - 0.5" NPT Opposite PDF
SG0525 with Relief Valve - 0.5" NPT Opposite PDF
SGN0525 with Relief Valve - 0.5" NPT Opposite PDF
SG0528 with Relief Valve - 0.75" NPT Opposite PDF
SGN0528 with Relief Valve - 0.75" NPT Opposite PDF
SG40528 with Relief Valve - 0.75" NPT Opposite PDF
SG40535 with Relief Valve - 0.5" NPT Opposite PDF
SGN40535 with Relief Valve - 0.5" NPT Opposite PDF
SG0535 with Relief Valve - 0.5" NPT Opposite PDF
SGN0535 with Relief Valve - 0.5" NPT Opposite PDF
SG40550 with Relief Valve - 0.5" NPT Opposite PDF
SGN40550 with Relief Valve - 0.5" NPT Opposite PDF
SG0550 with Relief Valve - 0.5" NPT Opposite PDF
SGN0550 with Relief Valve - 0.5" NPT Opposite PDF
SG40570 with Relief Valve - 0.5" NPT Opposite PDF
SGN40570 with Relief Valve - 0.5" NPT Opposite PDF
SG0570 with Relief Valve - 0.5" NPT Opposite PDF
SG40711 with Relief Valve - 1" NPT Opposite PDF
SGN40711 with Relief Valve - 1" NPT Opposite PDF
SG0711 with Relief Valve - 1" NPT Opposite PDF
SGN0711 with Relief Valve - 1" NPT Opposite PDF
SG40716 with Relief Valve - 1" NPT Opposite PDF
SGN40716 with Relief Valve - 1" NPT Opposite PDF
SG0716 with Relief Valve - 1" NPT Opposite PDF
SGN0716 with Relief Valve - 1" NPT Opposite PDF
SG40722 with Relief Valve 1.5" NPT Suction and 1.25" Discharge Opposite PDF
SG0722 with Relief Valve 1.5" NPT Suction and 1.25" Discharge Opposite PDF
SG40722 with Relief Valve 1.5" NPT Suction/Discharge and 1.25" Discharge/Suction Opposite PDF
SGN40722 with Relief Valve 1.5" NPT Suction/Discharge and 1.25" Discharge/Suction Opposite PDF
SG0732 with Relief Valve with Relief Valve 1.5" NPT Suction and 1.25" Discharge Opposite PDF
SG0732 with Relief Valve 1.5" NPT Suction/Discharge and 1.25" Discharge/Suction Opposite PDF
SGN0732 with Relief Valve 1.5" NPT Suction/Discharge and 1.25" Discharge/Suction Opposite PDF
SG40732 with Relief Valve 1.5" NPT Suction/Discharge and 1.25" Discharge/Suction Opposite PDF
SGN40732 with Relief Valve 1.5" NPT Suction/Discharge and 1.25" Discharge/Suction Opposite PDF
SG0741 with Relief Valve - 1" NPT Opposite PDF
SGN0741 with Relief Valve - 1" NPT Opposite PDF
SG40741 with Relief Valve - 1" NPT Opposite PDF
SGN40741 with Relief Valve - 1" NPT Opposite PDF
SG0758 with Relief Valve - 1" NPT Opposite PDF
SGN0758 with Relief Valve - 1" NPT Opposite PDF
SG40758 with Relief Valve - 1" NPT Opposite PDF
SG0782 with Relief Valve - 1" NPT Opposite PDF
SGN0782 with Relief Valve - 1" NPT Opposite PDF
SG40782 with Relief Valve - 1" NPT Opposite PDF
SGN40782 with Relief Valve - 1" NPT Opposite PDF
SG1009 - 1" SAE 4-Bolt Flange PDF
SG1013 - 1.5" SAE 4-Bolt Flange with 4" Pilot PDF
SG1013 - 1.5" SAE 4-Bolt Flange with 100mm Pilot PDF
SG1026 - 2" SAE 4-Bolt Flange with 4" Pilot PDF
SG1026 - 2" SAE 4-Bolt Flange with 100mm Pilot PDF
SG1420 - 2" SAE 2" SAE 4-Bolt Flange with 5" Pilot PDF
SG1420 - 2" SAE 2" SAE 4-Bolt Flange with 125mm Pilot PDF
SG1436 - 3" SAE 4 Bolt Flange PDF
SG1436 - 1.5" SAE 4 Bolt Flange PDF
SG41436 - 1.5" SAE 4 Bolt Flange PDF
SG1456 - 1.5" 4 Bolt Flange 5" Pilot PDF
SG1456 - 1.5" 4 Bolt Flange 125mm Pilot PDF
