The SG-807 Series™ sealless external gear pump is designed for applications where shaft seal leakage is unacceptable. This mag drive pump offers a hermetically sealed solution using magnet drive technology which eliminates traditional shaft seals and associated issues like wear, leakage, and air infiltration. It can handle flows up to 32 GPM (7.27 m³/h).
Features & Benefits
- Leak-Free Operation: Hermetically sealed design eliminates shaft seals, preventing leakage and air infiltration—ideal for hard-to-seal or hazardous liquids.
- Low Maintenance: Magnetic drive system reduces wear and eliminates seal-related maintenance, improving reliability and uptime.
- Enhanced Cooling & Flow: Hollow shaft enables internal fluid circulation for magnet cooling and product movement, preventing stagnation and ensuring consistent performance.
Capacity
4 to 11.2 GPM
0.91 to 7.27 m³/h
Viscosity
28 to 250,000 SSU
1 to 55,000 cSt
Pressure
500 PSI
34 BAR
Temperature
-40 to +450°F
-40 to +230°C
Options
Porting
NPT
Opposite (180°)
Drives
M Motor Mounted Drive
Mounting
Foot Mount
Motor Mount
Sealing
Mag Drive
Specifications
| Model | Standard Port (Inches) | Nominal Capacity At 1750 RPM (GPM) | Nominal Capacity At 1750 RPM (LPM) | Continuous Pressure* PSI | Continuous Pressure* BAR | Maxiumum Temp (F) | Maximum Temp. (C) |
|---|---|---|---|---|---|---|---|
| SG-80741 | 1 in NPT | 4 GPM | 0.91 LPM | 500 PSI | 34 BAR | 225 F | 107 C |
| SG-80758 | 1 in NPT | 5.6 GPM | 1.27 LPM | 500 PSI | 34 BAR | 225 F | 107 C |
| SG-80782 | 1 in NPT | 8 GPM | 1.82 LPM | 500 PSI | 34 BAR | 225 F | 107 C |

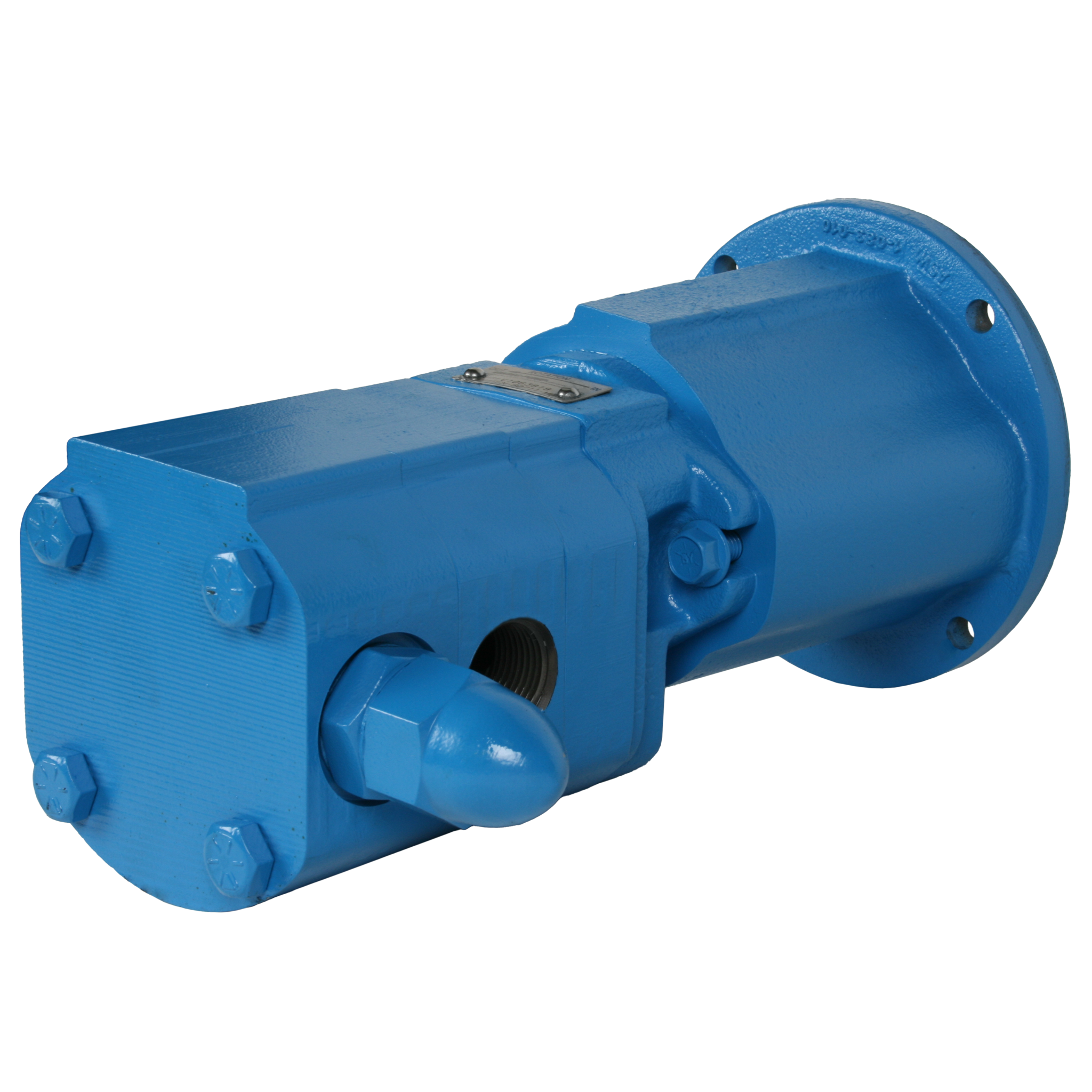

| SG-80711 | 1 in NPT | 11.2 GPM | 2.54 LPM | 500 PSI | 34 BAR | 225 F | 107 C |
| SG-80716 | 1 in NPT | 16 GPM | 3.63 LPM | 500 PSI | 34 BAR | 225 F | 107 C |
| SG-80722 | 1 1/2 x 1 1/4 in NPT | 22 GPM | 5.00 LPM | 500 PSI | 34 BAR | 225 F | 107 C |
| SG-80732 | 1 1/2 x 1 1/4 in NPT | 32 GPM | 7.27 LPM | 500 PSI | 34 BAR | 225 F | 107 C |
