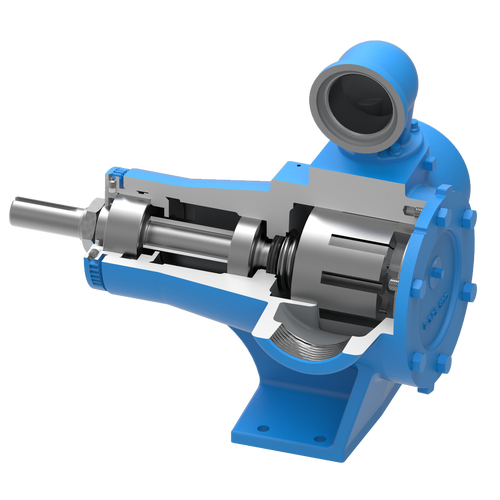

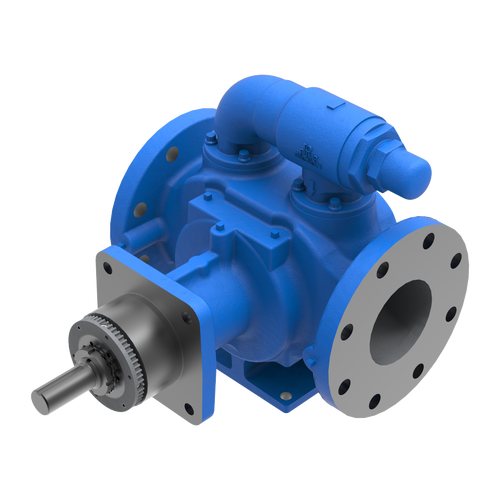

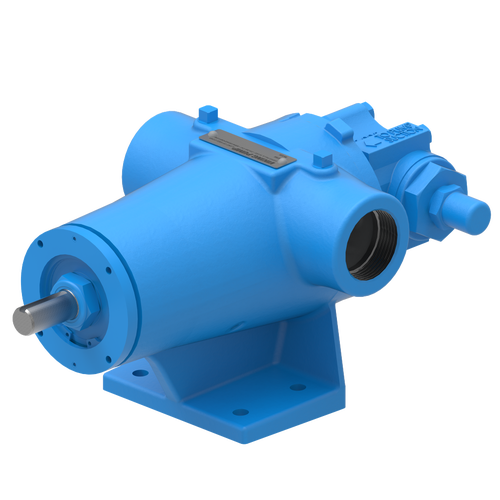

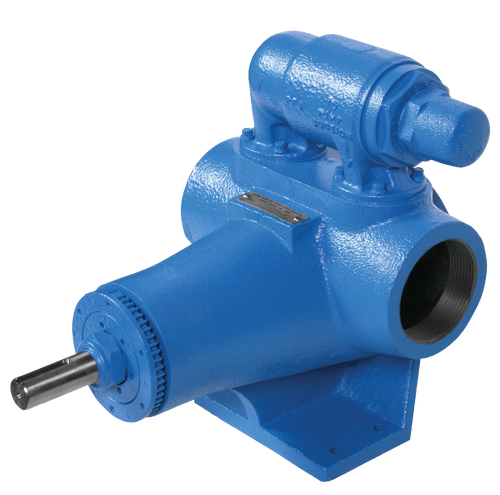

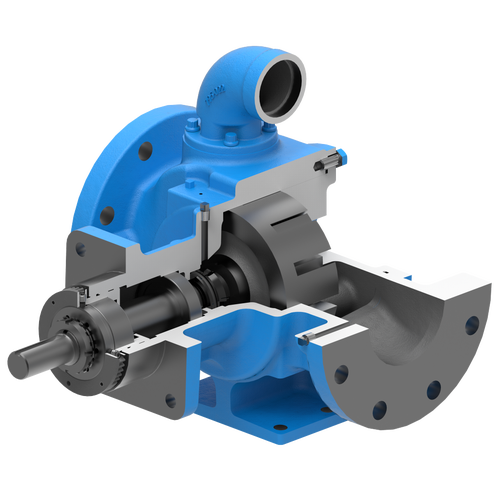

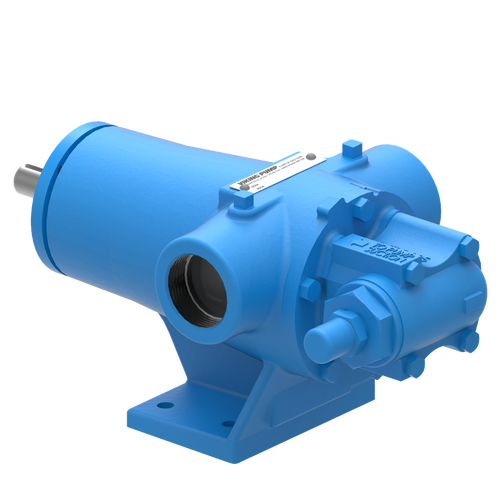

The 4195 Series™ internal gear pump is the perfect solution for refined fuels, lube oils, rotating equipment lubrication, and more due to its high speed operation for thin to moderate viscosity applications. It can handle flows up to 580 GPM (132 m³/h).
Features & Benefits
- The most compact gear pump series available to fit tight space constraints
- High speed operation for the most economical pump option for thin to moderate viscosity applications
- Vertical mounting options to further reduce the unit footprint
to 580 GPM
to 132 m³/h
28 to 15,000 SSU
1 to 3,300 cSt
to 250 PSI
to 17 Bar
-40 to +300 °F
-40 to +150 °C
|Model||NTP Ports||Flange Ports Class 125 (in)||Flange Ports DIN PN-16 (mm)||Nominal Pump Rating (60hz) GPM||Nominal Pump Rating (60hz) m³/h||Maximum RPM||Maximum Pressure PSI||Maximum Pressure BAR|
Refined fuels would include petroleum based fuel oils and some Jet Fuels. Their viscosity and temperature handled can vary greatly. Normally these are handled in bulk transfer operations.
Lube Oil (Machinery Lubrication)
Machinery lubrication pumps are used in everything from small backup generators to naval ships. Lube oils, as the name implies, are the liquids used to lubricate rotating and reciprocating machinery. Lube oils may be handled at higher pressures to ensure their penetration of the equipment.
Glycol (Ethylene Glycol, Ethylene Alcohol)
A clear, colorless, syrupy liquid used in a variety of applications involving lacquers, resins, printing inks, adhesives, waxes, and pharmaceuticals. It is often blended with water and used as a coolant and anti-freezing agent.
