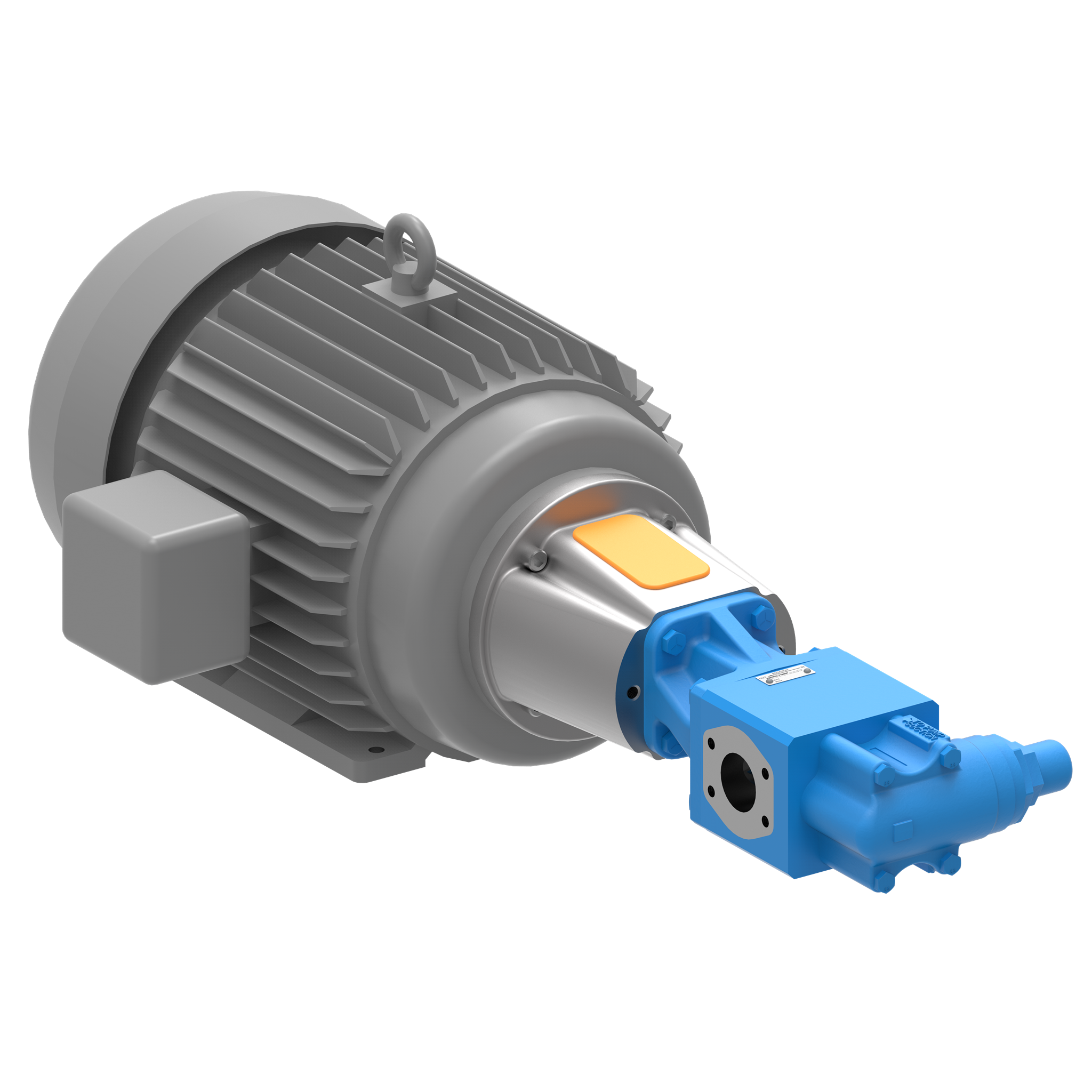

The SG-10 Series™ spur gear pump is the ideal solution for pipeline injection, pipeline sampling, oil polishing, and more due to its high pressure capabilities and efficiencies. It can handle flows up to 50 GPM (189 LPM).
Features & Benefits
- Needle bearings provide high pressure capabilities, sleeve bear options available
- Close-coupled motor mount or foot bracket options to match space or motor requirements
- Double pump configurations offer two flow rates operating from a single power source, reducing equipment costs
Capacity
25 to 50 GPM
95 to 189 LPM
Viscosity
28 to 1,000,000 SSU
1 to 250,000 cSt
Pressure
to 500 PSI
to 34 BAR
Temperature
-40 to +450°F
-40 to +230°C
Options
Porting
Drives
Mounting
Sealing
Specifications
Model | Standard Port (Inches) | Nominal Capacity At 1750 RPM (GPM) | Nominal Capacity At 1750 RPM (LPM) | Continuous Pressure* PSI | Continuous Pressure* BAR | Maxiumum Temp (F) | Maximum Temp. (C) |
---|---|---|---|---|---|---|---|
SG-1013 | 1 1/2 in SAE | 25 GPM | 95 LPM | 500 PSI | 34 BAR | 225 F | 105 C |
SG-1026 | 2 in SAE | 50 GPM | 189 LPM | 500 PSI | 34 BAR | 225 F | 105 C |
Videos

Edible Oils
This group of oils may consist of olive, palm, soybean, canola, pumpkin seed, corn, sunflower, safflower, peanut, grape seed, sesame, and rice bran or a blend of these oils that is typically referred to as vegetable oil.

Glycerol/Glycerin
This chemical is typically produced in the same process as soaps and surfactants. It is used in a wide variety of products ranging from food and beverage to personal care and disinfectants.

Hot Melt
Hot Melt adhesives are thermoplastic polymers that soften (become less viscous) when heated. Applied by a local system that melts the adhesive and adjusts pump speed to match the speed of the converting machine.

Lube Oil (Machinery Lubrication)
Machinery lubrication pumps are used in everything from small backup generators to naval ships. Lube oils, as the name implies, are the liquids used to lubricate rotating and reciprocating machinery. Lube oils may be handled at higher pressures to ensure their penetration of the equipment.

Lube Oil Blending
Local blending plants take bulk petroleum or synthetic base oils and mix them together with additives to create unique oil blends for specific applications and customers.

Biofuels
Biofuels include Biodiesel and Ethanol. These are fuels made from renewable resources and typically blended with refined fuels as additives.

Isocyanate
Also known as TDI, MDI, or diisocyanate. Isocyanate is used as a hardening or curing agent in polyurethane foams, industrial coatings, elastomers, inks, and resins. It is extremely sensitive to moisture in the air and hydrocarbons making air-tight seal options extremely critical.

Polyol
Alcohols having many hydroxyl radicals are called polyols. Many companies market polyols under their own trade names. Product viscosity varies greatly depending on the specific polyol, but can be as thick as 40,000 cP. Polyols are often blended with isocyanates, so pumps handing polyols are often requested to be built using isocyanate compatible lubricants.
