1127C Series™

The 1127C Series™ internal gear stainless steel pump is the flexible, simple, and adaptable solution for a wide range of applications. This new generation of pumps comes standard with the patented O-Pro® Guard Seal for superior sealing capability, as well as the ProPort™ casing that accommodates a variety of port sizes and types depending on your needs. It can handle flow rates up to 320 GPM (73 m³/h).

Features & Benefits

All stainless steel construction for corrosion resistance over a wider pH range
ProPort™ casing utilizes mounting pads on each port designed to fit a variety of different flange types and sizes, enabling flexibility when connecting pumps to piping
U-Plus™ bracket, available on H-QS sizes, offers seal location to be in the stuffing box or behind the rotor
Opposite porting on all pump sizes available

Downloads

Performance

Videos

Liquids

Downloads

Capacity

to 320 GPM
to 73 m³/h

Viscosity

28 to 2,000,000 SSU
0.1 to 440,000 cSt

Pressure

to 150 PSI
to 10 BAR

Temperature

0 to +350°F
-15°C to +175°C

Options

Porting

Right Angle (90°) (Rotatable Casing), H-Q

Opposite (180°) (Rotatable Casing), H-QS

NPT

Flanged (ASME / ANSI or DIN Compatible)

Drives

R Offset Gear Reducer Drive

P Purchased Gear Reducer Drive

D Direct-Mounted Drive, H-HL

V Drive | V-Belt Drive

Mounting

Foot Mount

Sealing

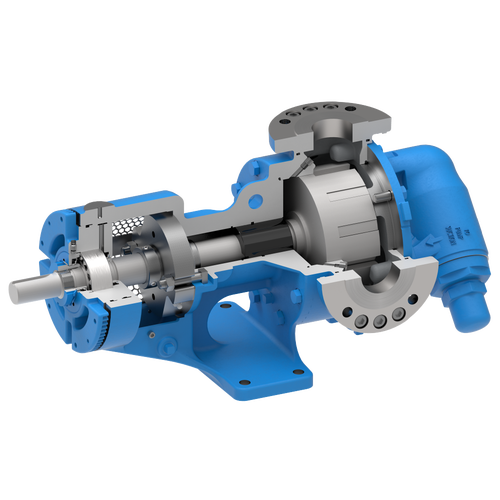

O-Pro® Seal

Specifications

Specifications
Model	Standard Port Size	Nominal Pump Rating (GPM)	Nominal Pump Rating (m3/h)	Maximum RPM	Maximum Pressure PSI	Maximum Pressure BAR
H1127C	1.5	6	1.4	760	150	10
HL1127C	1.5	13	3	760	150	10
K1127C	2	50	11	520	150	10
KK1127C	2	65	15	520	150	10
L1127C	2.5	100	23	520	150	10
LL1127C	3	135	31	520	150	10
LS1127C	3	160	36	520	150	10
Q1127C	4	200	45	350	150	10
QS1127C	6	320	73	350	150	10

Select model for more detailed information:

H1127C , HL1127C , K1127C , KK1127C , L1127C , LL1127C , LS1127C , Q1127C , QS1127C

Videos

Trucks with logs on their way to a pulp mill

Black Liquor Soap

A natural intermediate byproduct of kraft pulping, black liquor soap is the rosin and fatty acid content that floats to the top as black liquor is left to settle. It is skimmed off and can be used as a raw material for tall oil production. Black liquor soap can be somewhat abrasive and range in viscosity from 22 to 5500 cP, depending on the temperature it is handled at.

1124C

Cast iron

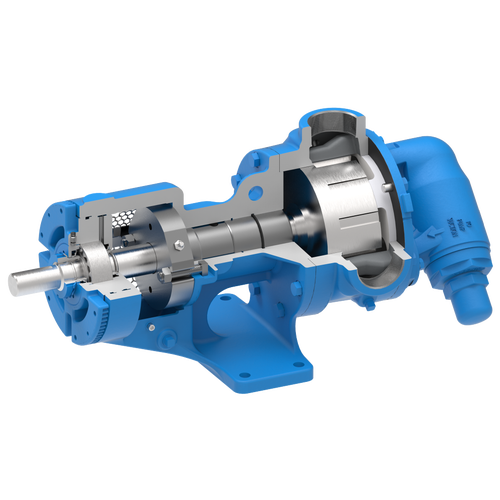

O-Pro® Barrier seal
High viscosity & abrasive resistant options
Diverse selection of port sizes & ratings
Capacities to 400 GPM

1127C

316 Stainless Steel
O-Pro® Guard seal low shear
Capacities to 320 GPM

1224C

Cast iron
Jacketed for steam/oil prior to pump startup
O-Pro® Barrier seal
Diverse selection of port sizes & ratings
Capacities to 400 GPM

Creams (Medicinal, Cosmetic)

Creams are typically for personal use by consumers for cosmetic and surface medical treatments. Physical properties and chemistry can vary greatly depending on the cream base and added substituents. Some creams will be petroleum based like Petroleum Grease, while others may be emulsions suspended in water. They typically are shear-thinning mixtures.

4127C

316 Stainless Steel
Cartridge lip seal options
Low shear
Capacities to 320 GPM

1127C

316 Stainless Steel
O-Pro® Guard seal low shear
Capacities to 320 GPM

REVOLUTION®

316 Stainless steel
Front loading seal
Low shear
Capacities to 761 GPM

Greases

Commonly referred to as lubricating, automotive, or bearing grease. Generally mixtures of a mineral oil with one or more metallic soaps; the most common are those of sodium, calcium, barium, aluminum, lead, lithium, potassium and zinc. The texture of grease may be smooth, buttery, ropy, fibrous, spongy or rubbery and have a variety of viscosities.

1124C

Cast Iron
O-Pro® Barrier seal
Diverse selection of port sizes & ratings
Capacities to 400 GPM

1127C

Stainless Steel
O-Pro® Guard seal
Diverse selection of port sizes & ratings
Capacities to 320 GPM

4124C

Cast iron
High viscosity construction options
Diverse selection of port sizes & ratings
Capacities to 500 GPM

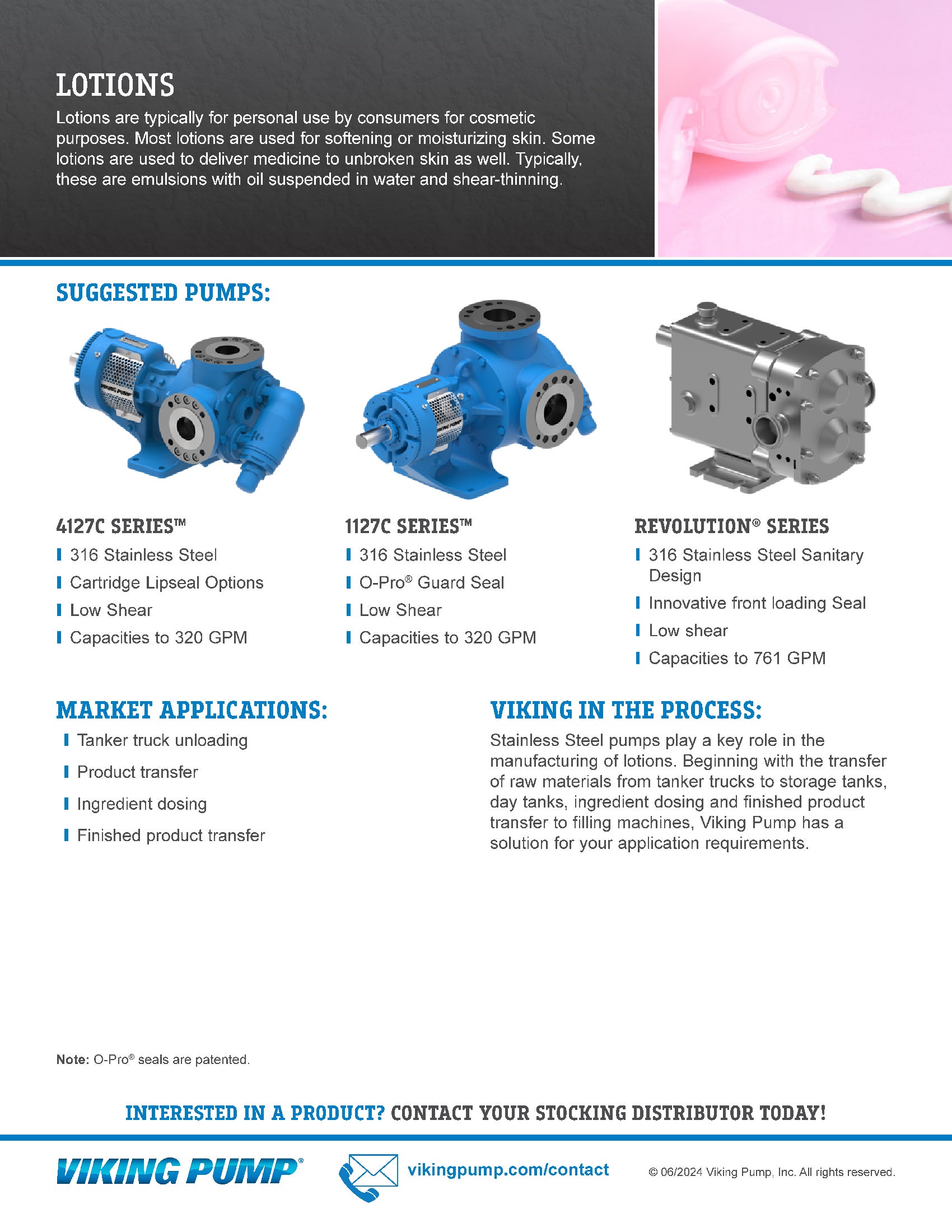

Lotions

Lotions are typically for personal use by consumers for cosmetic purposes. Most lotions are used for softening or moisturizing skin. Some lotions are used to deliver medicine to unbroken skin as well. Typically these are emulsions with oil suspended in water and shear-thinning.

4127C

316 stainless steel
Cartridge lip seal options
Low shear
Capacities to 320 GPM

1127C

316 stainless steel
O-Pro® Guard seal
Low shear
Capacities to 320 GPM

detergent pod being placed into dish washer

Detergent Slurry

Detergent Slurry is a blend of liquid surfactant with powdered and granulated materials, such as builders and additives, that help to improve surfactant and cleaning performance.

4127C

316 Stainless Steel
High viscosity and abrasive resistant sealing options
Diverse selection of port sizes & ratings
Capacities to 320 GPM

1127C

316 Stainless Steel
O-Pro® Guard seal
Diverse selection of port sizes & ratings
Capacities to 320 GPM

4327A

316 Stainless Steel
High viscosity & abrasive resistant options
up to 1600 GPM

TSM / Catalog / Flyers / Brochures

Service Manual | 2700

Download

Technical Service Manuals

Catalog Section | 2701 | Non-Jacketed

Download

Catalog Sections

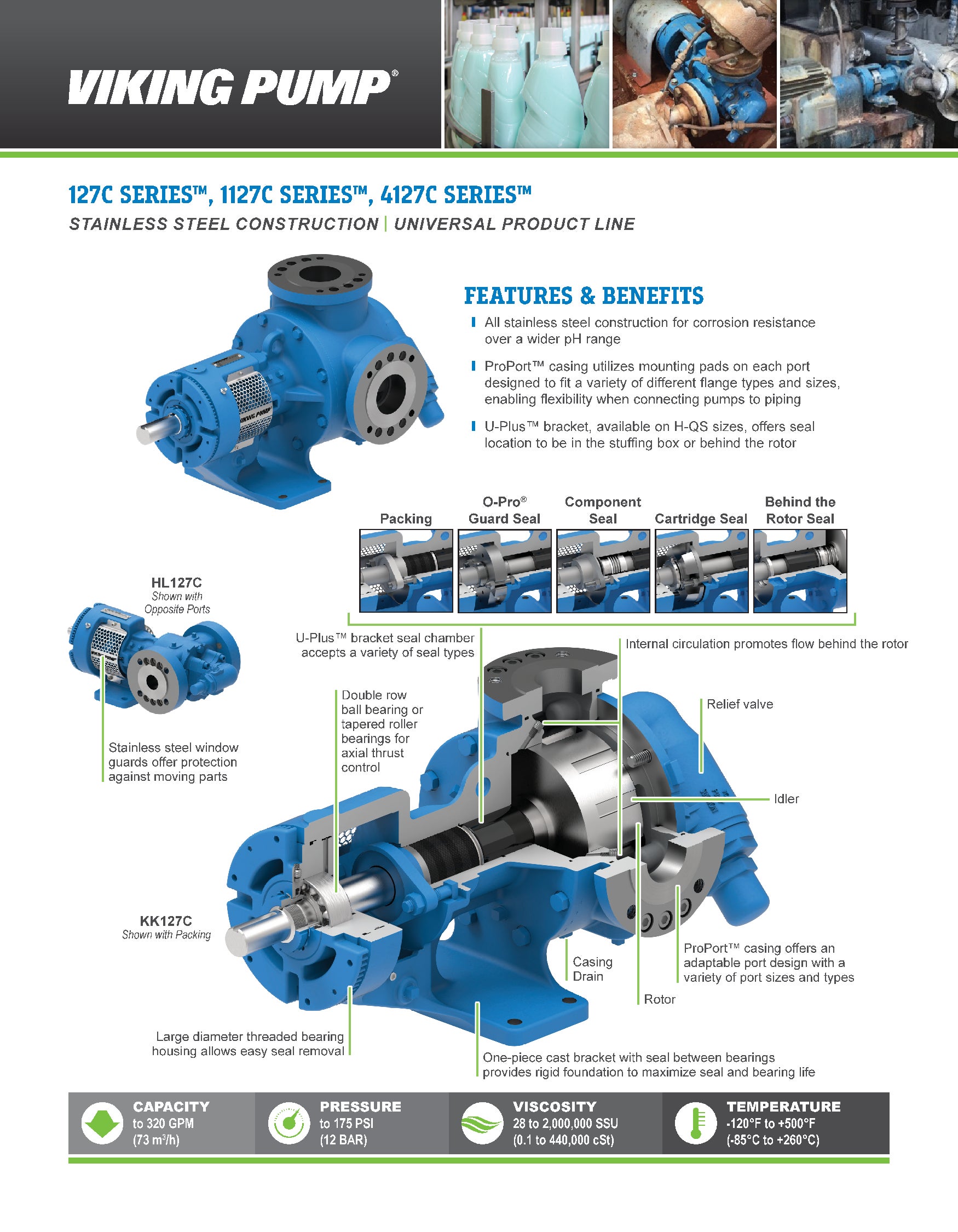

Flyer | Form 2701 | 127C / 1127C / 4127C
