1224A-BXB SERIES™

This product has been replaced by a new innovation.

Click here to navigate to our recommended replacement

OBSOLETE

REPLACEMENT

Model

Manual

Catalog Section

Model

Manual

Catalog Section
H1224A-BXB

Service Manual | 1400

Catalog Section | 1402 | Jacketed

H1224C-BXB

Service Manual | 2400

Catalog Section | 2460 | BXB
HL1224A-BXB

Service Manual | 1400

Catalog Section | 1402 | Jacketed

HL1224C-BXB

Service Manual | 2400

Catalog Section | 2460 | BXB
K1224A-BXB

Service Manual | 1400

Catalog Section | 1402 | Jacketed

K1224C-BXB

Service Manual | 2400

Catalog Section | 2460 | BXB
KK1224A-BXB

Service Manual | 1400

Catalog Section | 1402 | Jacketed

KK1224C-BXB

Service Manual | 2400

Catalog Section | 2460 | BXB
L1224A-BXB

Service Manual | 1400

Catalog Section | 1402 | Jacketed

L1224C-BXB

Service Manual | 2400

Catalog Section | 2460 | BXB
LQ1224A-BXB

Service Manual | 1400

Catalog Section | 1402 | Jacketed

L1224C-BXB

Service Manual | 2400

Catalog Section | 2460 | BXB
LL1224A-BXB

Service Manual | 1400

Catalog Section | 1402 | Jacketed

LL1224C-BXB

Service Manual | 2400

Catalog Section | 2460 | BXB
LS1224A-BXB

Service Manual | 1400

Catalog Section | 1402 | Jacketed

LS1224C-BXB

Service Manual | 2400

Catalog Section | 2460 | BXB

DOWNLOADS

Capacity

to 400 GPM
1.8 to 91 m³/h

Viscosity

100 zu 2,000,000 SSU
20 zu 440,000 cSt

Pressure

to 200 PSI
to 14 Bar

Temperature

0 zu +350 °F
-15 zu +175 °C

Options

Porting

Right Angle (90°) (Rotatable Casing), H-Q

Opposite (180°), QS

NPT / BSP

Flanged (ASME / ANSI)

Drives

R Offset Gear Reducer Drive

P Purchased Gear Reducer Drive

V Drive | V-Belt Drive

Mounting

Foot Mount

Sealing

O-Pro® Barrier Seal

Specifications

Specifications
Modell	Standard portstorlek	Nominell pumpkapacitet (GPM)	Nominell pumpkapacitet (m³/h)	Maximalt varvtal	Maximalt tryck PSI	Maximalt tryck BAR
H1224A-BXB	1.5	8	1.8	1000	200	14
HL1224A-BXB	1.5	18	4	1000	200	14
K1224A-BXB	2	80	18	780	200	14
KK1224A-BXB	2	100	23	780	200	14
L1224A-BXB	2	135	31	640	200	14
LQ1224A-BXB	2.5	135	31	640	200	14
LL1224A-BXB	3	140	32	520	200	14
LS1224A-BXB	3	200	45	640	200	14
Q1224A-BXB	4	275	62	470	200	14
QS1224A-BXB	6	400	91	470	200	14

Select model for more detailed information:

H1224A-BXB , HL1224A-BXB , K1224A-BXB , KK1224A-BXB , L1224A-BXB , LQ1224A-BXB , LL1224A-BXB , LS1224A-BXB

Videos

Diesel (#2 Fuel Oil)

Diesel is distilled from petroleum and is typically used in heavy equipment as fuel. While it is thin diesel is somewhat lubricating. It is typically handled in a bulk transfer application or on back-up generator skids.

4195

Cast iron
Pressures up to 250 PSI
Capacities to 580 GPM

Ductile Iron
Pressures >200 PSI
Capacities to 190 GPM
UL Listed

432-X

Cast iron
Pressures up to 100 PSI
Capacities to 30 GPM
UL Listed

TSM / Catalog / Flyers / Brochures

Service Manual | 1400

Download

Technical Service Manuals

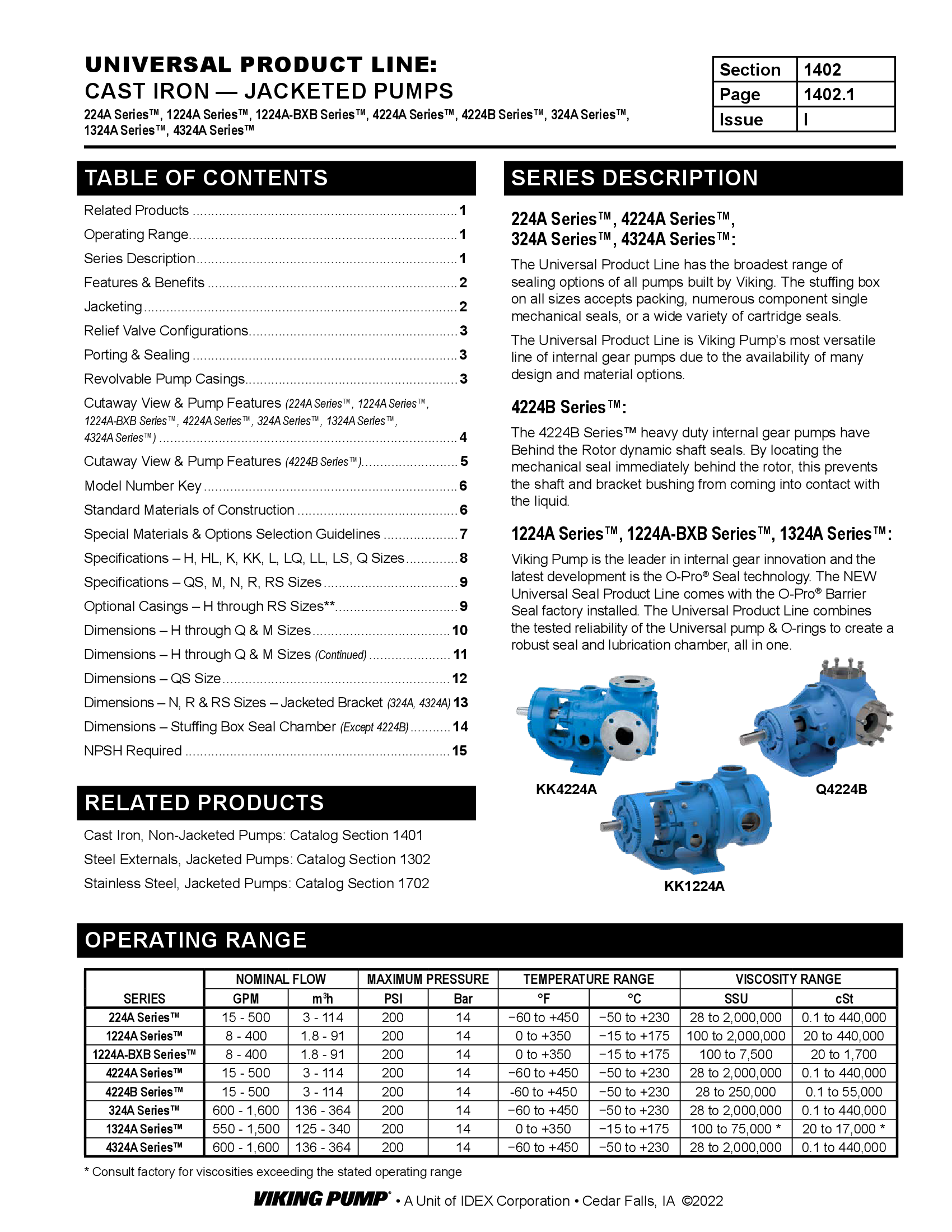

Catalog Section | 1402 | Jacketed

Download

Catalog Sections

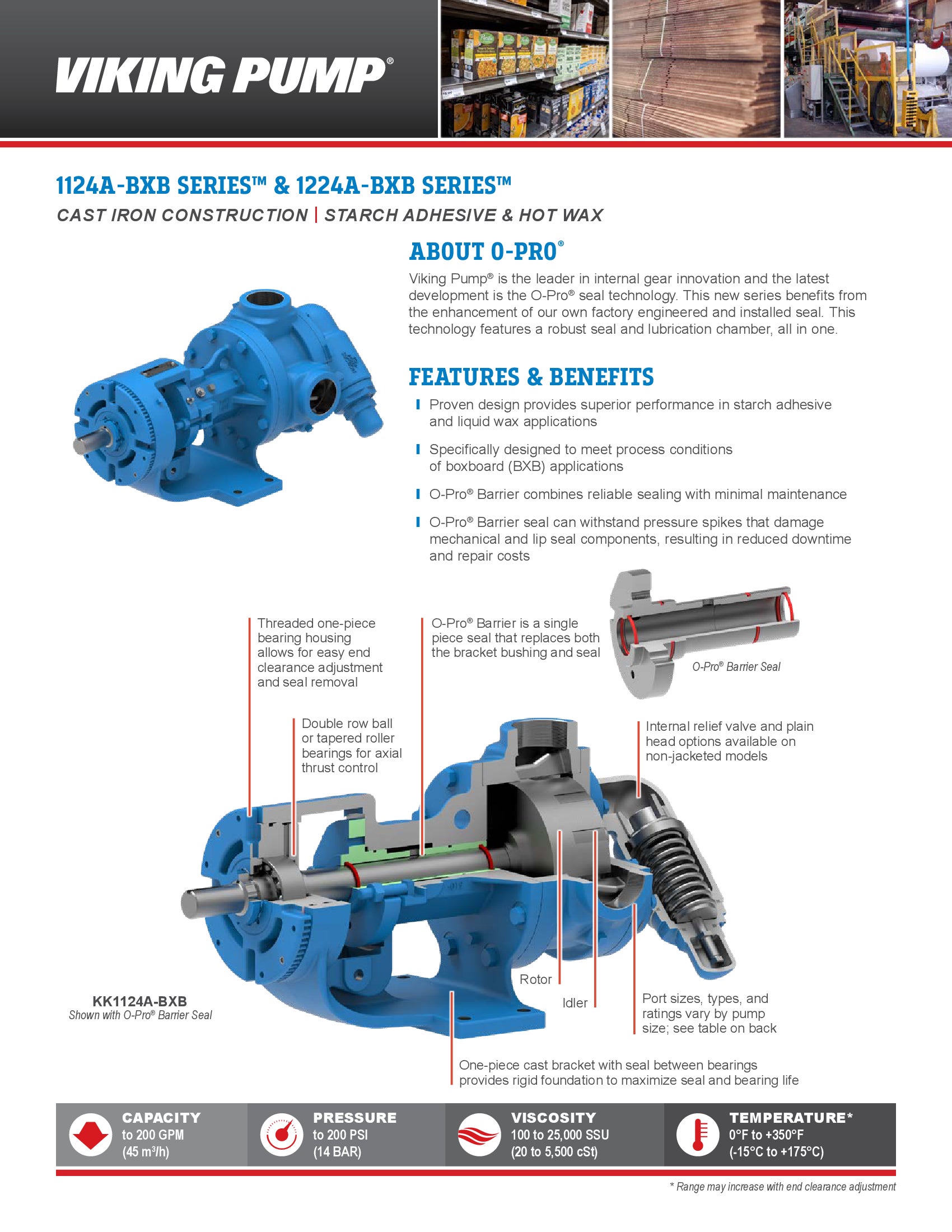

Flyer | Form 1460 | 1124A-BXB / 1224A-BXB Series

Download

Product Flyers

Flyer | O-Pro® Seals

Download
