1224C-BXB SERIES™

The 1224C-BXB Series™ jacketed internal gear pump is part of Viking Pump’s Liquid Specific Product Line. It features the O-Pro® Barrier Seal, making it an ideal solution for demanding applications such as starch and adhesives, where mechanical seals often fail and traditional packing can leak and create cleanup issues. It can handle flows up to 200 GPM (45 m³/h).

Features & Benefits

  • O-Pro® Barrier Seal to prevent process liquid from leaking
  • Jacketed chambers allow effective control of product temperature in applications requiring thermal management
  • U-Plus™ Bracket which can accommodate seal options beyond the standard O-Pro® Barrier seal such as packing, single component seals (stuffing box or behind the rotor), cartridge lip seals, and single or double cartridge seals
  • Optional ProPort™ Casing to accommodate a variety of port sizes and types to simply integration into existing piping systems

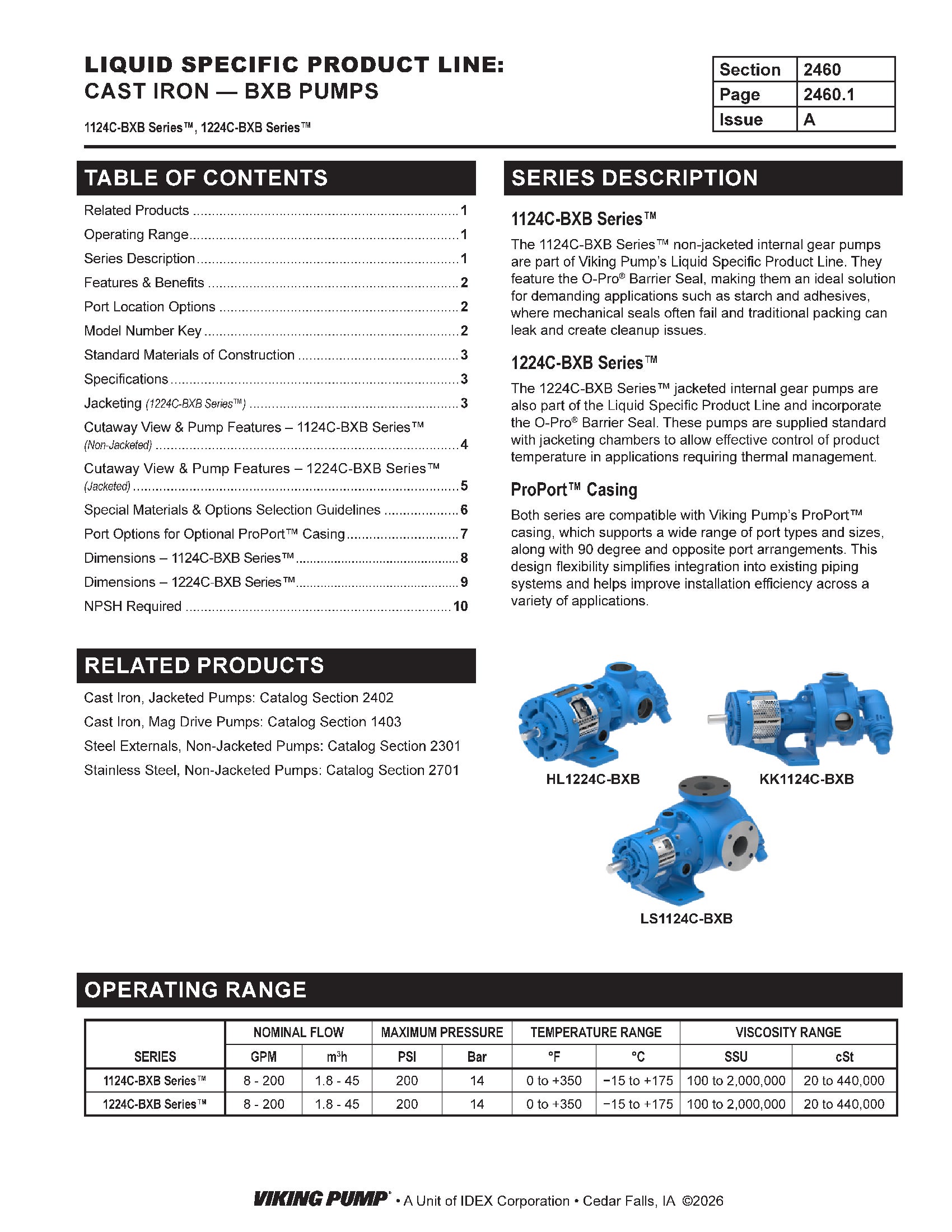

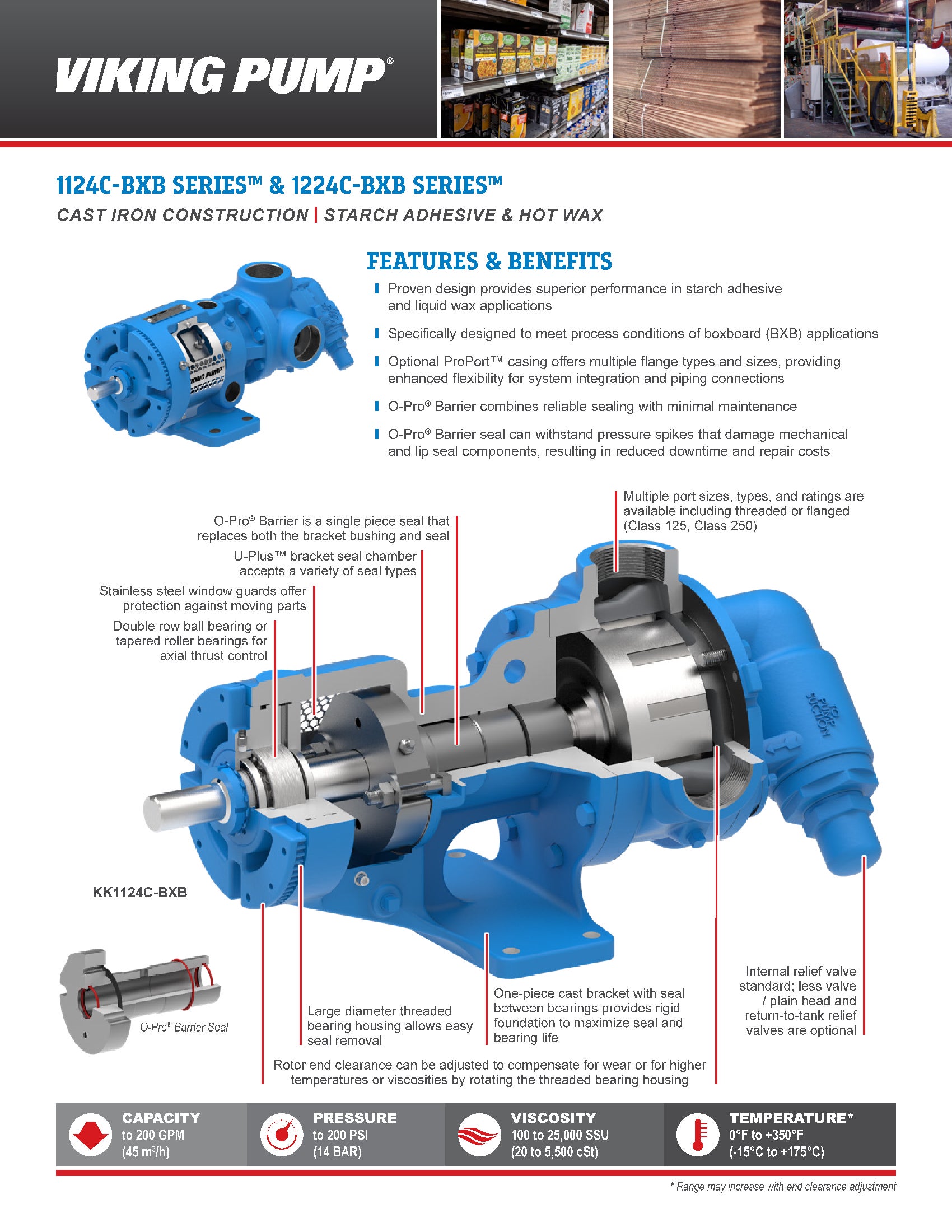

Downloads

One Pump. Endless Configurations. Zero Compromises.

One Pump. Endless Configurations. Zero Compromises.

Viking's Next Generation Universal pumps use modular design to give you more options with fewer parts reducing your inventory complexity.





Gif of various seal types that can be added to u-plus bracket

Viking Pump's U-Plus™ Bracket

  • Accepts a variety of seal types to meet your needs

  • Stainless steel window guards offer protection from rotating parts

  • Footed one-piece iron bracket provides rigid mounting to help maintain alignment, which extends seal and bearing life

ProPort gif of different flanges being implemented

Viking Pump's ProPort™ Casing

  • Adaptable port design offers a variety of port sizes and types, simplifying integration into existing piping systems and enhances installation efficiency

  • H-Q sizes available with optional opposite porting

  • Casing drain allows the pump to be drained without removing the head

  • Optional O-ring joint seals for high pressure of difficult to seal applications
