124C SERIES™

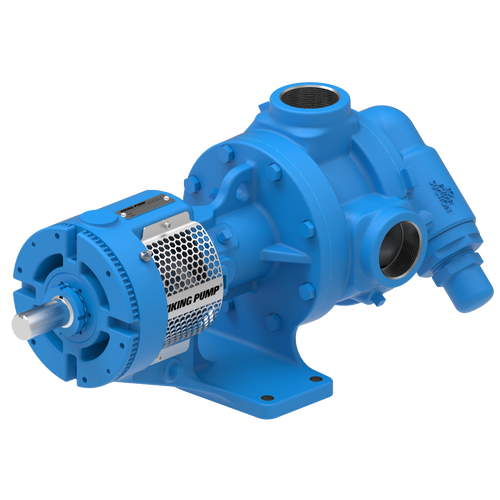

The 124C Series™ internal gear pump is Viking Pump's most versatile internal gear pump, engineered for superior flexibility and performance. Featuring the innovative U-Plus™ bracket design, these pumps come standard with packing but have the ability to adapt to your ideal sealing needs.

Built for adaptability, the 124C Series™ is fully compatible with ProPort™ casings, offering various flange types, sizes, and port arrangements for easy system integration. It is ideal for applications such as lubrication systems, hydraulic oil circulation, chemical processing, fuel transfer, and more.

Features & Benefits

Positive displacement internal gear pumping principle handles a wide range of viscosities with constant flow rate
U-Plus™ Bracket adapts the pump's sealing solution to fit your needs.
Optional ProPort™ Casing offers a variety of port sizes and types, simplifying integration into your existing piping systems
Stainless steel window guards offer protection from rotation parts

Downloads

Capacity

15 to 500 GPM
3.5 to 114 m³/h

Viscosity

28 to 2,000,000 SSU
1 to 440,000 cSt

Pressure

to 200 PSI
to 14 Bar

Temperature

-60 to +450 °F
-50 to +230 °C

Options

Porting

NPT

Class 125 ANSI Flange

Right Angle (90°) (Rotatable Casing)

Opposite (180°)

Drives

D Direct-Mounted Drive

P Purchased Gear Reducer Drive

R Offset Gear Reducer Drive

V Drive | V-Belt Drive

Mounting

Foot Mount

Sealing

Packing

Specifications

Model	Standard Port Size	Nominal Pump Rating GPM	Nominal Pump Rating m3/h	Maximum RPM	Maximum Pressure PSI	Maximum Pressure BAR
H124C	1.5 inches	15 GPM	3.5 m3/h	1750 RPM	200 PSI	14 BAR
HL124C	1.5 inches	30 GPM	7 m3/h	1750 RPM	200 PSI	14 BAR
AK124C	2 inches	65 GPM	15 m3/h	1450 RPM	200 PSI	14 BAR
AL124C	2 inches	90 GPM	20 m3/h	1450 RPM	200 PSI	14 BAR
K124C	2 inches	80 GPM	18 m3/h	780 RPM	200 PSI	14 BAR
KK124C	2 inches	100 GPM	23 m3/h	780 RPM	200 PSI	14 BAR
L124C	2 inches	135 GPM	31 m3/h	640 RPM	200 PSI	14 BAR
LL124C	3 inches	140 GPM	32 m3/h	520 RPM	200 PSI	14 BAR
LS124C	3 inches	200 GPM	45 m3/h	640 RPM	200 PSI	14 BAR
Q124C	4 inches	300 GPM	68 m3/h	520 RPM	200 PSI	14 BAR
QS124C	6 inches	500 GPM	114 m3/h	520 RPM	200 PSI	14 BAR

Select model for more detailed information:

H124C , HL124C , AK124C , AL124C , K124C , KK124C , L124C , LL124C , LS124C , Q124C , QS124C

Videos

Lecithin

Lecithin is a mixture of triglycerides, fatty acids, and carbohydrates that typically ranges in viscosity up to 5000 SSU, but may be more viscous depending on make-up and temperature. It is typically derived from soybean oil but may also be obtained from egg yolks, corn, or other vegetable seeds.

1124C

Cast iron
Leak prevention with O-Pro® Barrier seal
Diverse selection of port sizes & ratings
Capacities to 400 GPM

127C

316 Stainless steel
Diverse selection of port sizes & ratings
High temp construction options
Capacities to 320 GPM

124C

Cast Iron
High temp construction options
Diverse selection of port sizes & ratings
Capacities up to 500 GPM

TSM / Catalog / Flyers / Brochures

Service Manual | 2400

Download

Technical Service Manuals

Catalog Section | 2401 | Non-Jacketed

Download

Catalog Sections

Catalog Section | 1000 | General Information

Download

Product Flyers

Form 5000 | Product Catalog

Download

DRAWINGS


AK-AL with Plain Head - 2" NPT RH/LH	PDF

AK-AL with Relief Valve - 2" NPT Flange RH/LH	PDF

H-HL Plain Head and ProPort Casing - 1.5" Class 125 ANSI RH/LH	PDF	STEP

H-HL Plain Head and ProPort Casing - 1.5" Class 250 ANSI RH/LH	PDF	STEP

H-HL Plain Head and ProPort Casing - 1.5" NPT RH/LH	PDF	STEP

H-HL Plain Head and ProPort Casing - 2" Class 125/150 ANSI RH/LH	PDF	STEP

H-HL Plain Head and ProPort Casing - 2" Class 250/300 ANSI RH/LH	PDF	STEP

H-HL with Plain Head - 1.5" NPT RH/LH	PDF	STEP

H-HL with Plain Head and ProPort Casing - 1.5" Class 125 ANSI Flanges Opposite	PDF

H-HL with Plain Head and ProPort Casing - 1.5" Class 250 ANSI Flanges Opposite	PDF

H-HL with ProPort Casing - 1.5" NPT Opposite	PDF

H-HL with ProPort Casing - 2" Class 150 ANSI Opposite	PDF

H-HL with ProPort Casing - 2" Class 300 ANSI Opposite	PDF

H-HL with ProPort Casing - DIN 40 PN16 Opposite	PDF

H-HL with ProPort Casing - DIN 40 PN16 RH/LH	PDF

H-HL with Relief Valve - 1.5" NPT RH/LH	PDF	STEP

H-HL with Relief Valve and ProPort Casing - 1.5" Class 125 ANSI Flanges Opposite	PDF

H-HL with Relief Valve and ProPort Casing - 1.5" Class 250 ANSI Flanges Opposite	PDF

H-HL with RV and ProPort Casing - 1.5" Class 125 ANSI RH/LH	PDF	STEP

H-HL with RV and ProPort Casing - 1.5" Class 250 ANSI RH/LH	PDF	STEP

H-HL with RV and ProPort Casing - 2" ANSI Flanges Opposite	PDF

H-HL with RV and ProPort Casing - 2" Class 125/150 ANSI RH/LH	PDF	STEP

H-HL with RV and ProPort Casing - 2" Class 250/300 ANSI RH/LH	PDF	STEP

H-HL with RV and ProPort Casing - DIN 40 PN16 Opposite	PDF	STEP

H-HL with RV and ProPort Casing - DIN 40 PN16 RH/LH	PDF

K-KK Plain Head and ProPort Casing - 2" Class 125 ANSI RH/LH	PDF	STEP

K-KK Plain Head and ProPort Casing - 2" Class 250 ANSI RH/LH	PDF	STEP

K-KK Plain Head and ProPort Casing - 2" NPT RH/LH	PDF	STEP

K-KK Plain Head and ProPort Casing - 3" Class 125/150 ANSI RH/LH	PDF	STEP

K-KK Plain Head and ProPort Casing - 3" Class 250/300 ANSI RH/LH	PDF	STEP

K-KK with Plain Head - 2" NPT RH/LH	PDF	STEP

K-KK with Plain Head - 4" Class 125 ANSI RH/LH	PDF	STEP

K-KK with Plain Head and ProPort Casing - 2" Class 125 ANSI Flanges Opposite	PDF

K-KK with Plain Head and ProPort Casing - 2" Class 250 ANSI Flanges Opposite	PDF

K-KK with Plain Head and ProPort Casing - 4" Class 125 ANSI Flanges Opposite	PDF

K-KK with Plain Head and ProPort Casing - Din 50 PN16 Flanges Opposite	PDF

K-KK with Plain Head and ProPort Casing - Din 50 PN16 Flanges RH/LH	PDF

K-KK with ProPort Casing - 2" NPT Opposite	PDF

K-KK with ProPort Casing - 3" Class 300 ANSI Opposite	PDF

K-KK with Relief Valve - 2" NPT RH/LH	PDF	STEP

K-KK with Relief Valve - 4" Class 125 ANSI RH/LH	PDF	STEP

K-KK with Relief Valve and ProPort Casing - 2" Class 125 ANSI Flanges Opposite	PDF

K-KK with Relief Valve and ProPort Casing - 2" Class 250 ANSI Flanges Opposite	PDF

K-KK with Relief Valve and ProPort Casing - 4" Class 125 ANSI Flanges Opposite	PDF

K-KK with Relief Valve and ProPort Casing - DIN 50 PN16 Flanges Opposite	PDF

K-KK with RV and ProPort Casing - 2" Class 125 ANSI RH/LH	PDF	STEP

K-KK with RV and ProPort Casing - 2" Class 250 ANSI RH/LH	PDF	STEP

K-KK with RV and ProPort Casing - 2" NPT Opposite	PDF

K-KK with RV and ProPort Casing - 3" ANSI Flanges Opposite	PDF

K-KK with RV and ProPort Casing - 3" Class 125/150 ANSI RH/LH	PDF	STEP

K-KK with RV and ProPort Casing - 3" Class 250/300 ANSI RH/LH	PDF	STEP

K-KK with RV and ProPort Casing - DIN 50 PN16 Flanges RH/LH	PDF

L Plain Head and ProPort Casing - 2.5" Class 125 ANSI RH/LH	PDF	STEP

L Plain Head and ProPort Casing - 2.5" Class 250 ANSI RH/LH	PDF	STEP

L Plain Head and ProPort Casing - 3" Class 125 ANSI RH/LH	PDF	STEP

L Plain Head and ProPort Casing - 3" Class 250 ANSI RH/LH	PDF	STEP

L Plain Head and ProPort Casing - 4" Class 125/150 ANSI RH/LH	PDF	STEP

L Plain Head and ProPort Casing - 4" Class 250/300 ANSI RH/LH	PDF	STEP

L with Plain Head - 2" NPT RH/LH	PDF	STEP

L with ProPort Casing - 2" NPT RH/LH	PDF	STEP

L with ProPort Casing - DIN 80 PN16 Opposite	PDF

L with Relief Valve - 2" NPT RH/LH	PDF	STEP

L with Relief Valve and ProPortâ„¢ Casing - DIN 80 PN16 Flanges RH/LH	PDF

L with RV and ProPort Casing - 2" NPT RH/LH	PDF	STEP

L with RV and ProPort Casing - 2.5" Class 125 ANSI RH/LH	PDF	STEP

L with RV and ProPort Casing - 2.5" Class 250 ANSI RH/LH	PDF	STEP

L with RV and ProPort Casing - 3" Class 125 ANSI RH/LH	PDF	STEP

L with RV and ProPort Casing - 3" Class 250/300 ANSI RH/LH	PDF	STEP

L with RV and ProPort Casing - 4" Class 125/150 ANSI RH/LH	PDF	STEP

L with RV and ProPort Casing - 4" Class 250/300 ANSI RH/LH	PDF	STEP

L with RV and ProPort Casing - DIN 80 PN16 Opposite	PDF

LL Plain Head and ProPort Casing - 3" Class 125 ANSI RH/LH	PDF	STEP

LL Plain Head and ProPort Casing - 3" Class 250 ANSI RH/LH	PDF	STEP

LL Plain Head and ProPort Casing - 4" Class 250/300 ANSI RH/LH	PDF	STEP

LL with Plain Head - 3" Class 125 ANSI RH/LH	PDF	STEP

LL with Plain Head and ProPort Casing - 3" Class 125 ANSI Flanges Opposite	PDF

LL with Plain Head and ProPort Casing - 3" Class 250 ANSI Flanges Opposite	PDF

LL with Plain Head and ProPort Casing - 4" ANSI Flanges Opposite	PDF

LL with Plain Head and ProPort Casing - 4" ANSI Flanges Opposite	PDF

LL with Plain Head and ProPort Casing - DIN 80 PN16 Flanges Opposite	PDF

LL with Relief Valve - 3" Class 125 ANSI RH/LH	PDF	STEP

LL with Relief Valve and ProPort Casing - 3" Class 125 ANSI Flanges Opposite	PDF

LL with Relief Valve and ProPort Casing - 3" Class 250 Flanges Opposite	PDF

LL with Relief Valve and ProPort Casing - DIN 80 PN16 Flanges Opposite	PDF

LL with Relief Valve and ProPort Casing - DIN 80 PN16 Flanges RH/LH	PDF

LL with RV and ProPort Casing - 3" Class 125 ANSI RH/LH	PDF	STEP

LL with RV and ProPort Casing - 3" Class 250 ANSI RH/LH	PDF	STEP

LL with RV and ProPort Casing - 4" ANSI Flanges Opposite	PDF

LL with RV and ProPort Casing - 4" ANSI Flanges Opposite	PDF

LL with RV and ProPort Casing - 4" Class 250/300 ANSI RH/LH	PDF	STEP

LS Plain Head and ProPort Casing - 3" Class 125 ANSI RH/LH	PDF	STEP

LS Plain Head and ProPort Casing - 3" Class 250 ANSI RH/LH	PDF	STEP

LS Plain Head and ProPort Casing - 4" Class 125/150 ANSI RH/LH	PDF	STEP

LS with Plain Head - 3" Class 125 ANSI RH/LH	PDF	STEP

LS with Plain Head and ProPort Casing - 3" Flanges Class 125 ANSI Opposite	PDF

LS with Plain Head and ProPort Casing - 3" Flanges Class 250 ANSI Opposite	PDF

LS with Plain Head and ProPort Casing - DIN 80 PN16 Flanges Opposite	PDF

LS with ProPort Casing - 4" ANSI Opposite	PDF

LS with ProPort Casing - 4" Class 300 ANSI RH/LH	PDF	STEP

LS with Relief Valve - 3" Class 125 ANSI RH/LH	PDF	STEP

LS with Relief Valve and ProPort Casing - DIN 80 PN16 Flanges Opposite	PDF

LS with Relief Valve and ProPort Casing - DIN 80 PN16 Flanges RH/LH	PDF

LS with RV and ProPort Casing - 3" Class 125 ANSI Opposite	PDF

LS with RV and ProPort Casing - 3" Class 125 ANSI RH/LH	PDF	STEP

LS with RV and ProPort Casing - 3" Class 250 ANSI Opposite	PDF

LS with RV and ProPort Casing - 3" Class 250 ANSI RH/LH	PDF	STEP

LS with RV and ProPort Casing - 4" Class 125/150 ANSI RH/LH	PDF	STEP

LS with RV and ProPort Casing - 4" Class 150 ANSI Opposite	PDF

LS with RV and ProPort Casing - 4" Class 250/300 ANSI RH/LH	PDF	STEP

Q Plain Head and ProPort Casing - 4" Class 125 ANSI RH/LH	PDF	STEP

Q Plain Head and ProPort Casing - 4" Class 250 ANSI RH/LH	PDF	STEP

Q with Plain Head - 4" Class 125 ANSI RH/LH	PDF	STEP

Q with Plain Head and ProPort Casing - 6" Class 125 ANSI Opposite	PDF

Q with Plain Head and ProPort Casing - 6" Class 250 ANSI Opposite	PDF

Q with Plain Head and ProPort Casing - DIN 150 PN16 Flanges Opposite	PDF

Q with Relief Valve - 4" Class 125 ANSI RH/LH	PDF	STEP

Q with Relief Valve and ProPort Casing - 6" Class 125 ANSI Opposite	PDF

Q with Relief Valve and ProPort Casing - 6" Class 250 ANSI Opposite	PDF

Q with Relief Valve and ProPort Casing - DIN 100 PN16 Flanges RH/LH	PDF

Q with Relief Valve and ProPort Casing - DIN 150 PN16 Flanges Opposite	PDF

Q with RV and ProPort Casing - 4" Class 125 ANSI RH/LH	PDF	STEP

Q with RV and ProPort Casing - 4" Class 250 ANSI RH/LH	PDF	STEP

QS Plain Head and ProPort Casing - 6" Class 125 ANSI Opposite	PDF	STEP

QS Plain Head and ProPort Casing - 6" Class 250 ANSI Opposite	PDF	STEP

QS with Plain Head - 6" Class 125 ANSI Opposite	PDF	STEP

QS with Plain Head - 6" Class 125 ANSI RH/LH	PDF

QS with Plain Head and ProPort Casing - DIN 150 PN16 Flanges Opposite	PDF

QS with Relief Valve - 6" Class 125 ANSI Opposite	PDF	STEP

QS with Relief Valve - 6" Class 125 ANSI RH/LH	PDF

QS with Relief Valve and ProPort Casing - DIN 150 PN16 Flanges Opposite	PDF

QS with RV and ProPort Casing - 6" Class 125 ANSI Opposite	PDF	STEP

QS with RV and ProPort Casing - 6" Class 250 ANSI Opposite	PDF	STEP

Features & Benefits

Capacity

Viscosity

Pressure

Temperature

Options

Porting

Drives

Mounting

Sealing

Specifications

Select model for more detailed information:

Videos

Lecithin

Technical Service Manuals

Catalog Sections

Product Flyers

Distributor Lookup

Wood Equipment Company

Rogers Machinery Company, Inc

DXP Enterprises - New Orleans, LA

Rogers Machinery Company, Inc

JCI Industries, Inc.

Wood Equipment Company

DXP ENTERPRISES - ORV

Arroyo Process Equipment

Rogers Machinery Company, Inc

Salentine Pump & Equipment

124C SERIES™

Features & Benefits

Capacity

Viscosity

Pressure

Temperature

Options

Porting

Drives

Mounting

Sealing

Specifications

Select model for more detailed information:

Videos

Lecithin

Technical Service Manuals

Catalog Sections

Product Flyers

Related Pumps

1124C SERIES™

4124C SERIES™

Distributor Lookup
