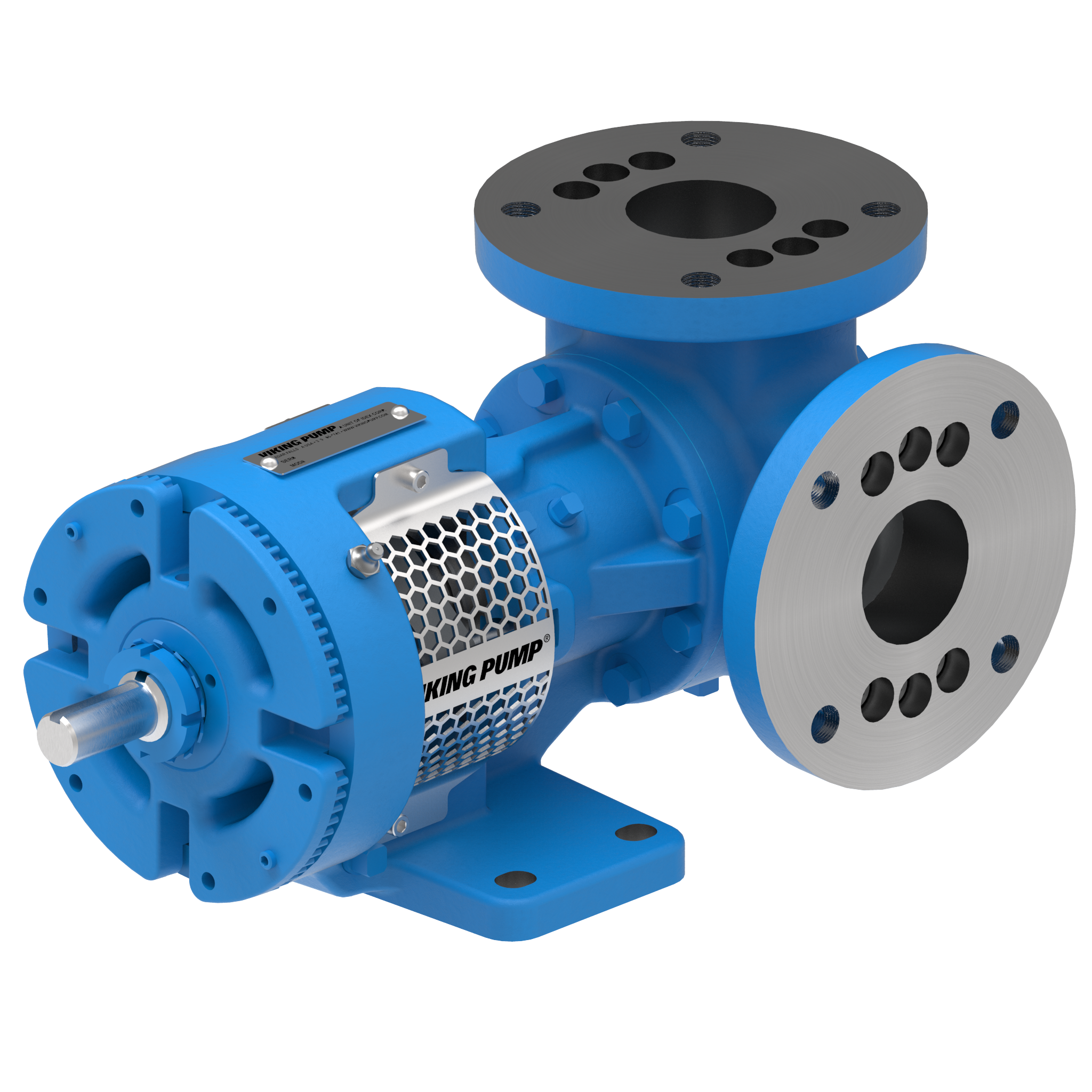

Viking Pump AL124C Model

Section

Capacity

90 GPM
20 m³/h

Viscosity

28 to 2,000,000 SSU
0.1 to 440,000 cSt

Pressure

200 PSI
14 BAR

Temperature

-60 to +450 °F
-50 to +230 °C

Options

Porting

Right Angle (90°) (Rotatable Casing)

NPT

Drives

D Direct-Mounted Drive

P Purchased Gear Reducer Drive

R Offset Gear Reducer Drive

V Drive | V-Belt Drive

Mounting

Foot Mount

Sealing

Packing

TSM / Catalog / Flyers / Brochures

Service Manual | 2400

Service Manual | 2400

Download

Catalog Section | 2401 | Non-Jacketed

Catalog Section | 2401 | Non-Jacketed

Download

Catalog Section | 1000 | General Information

Catalog Section | 1000 | General Information

Download

Flyer | Form 2401 Non-Jacketed

Flyer | Form 2401 Non-Jacketed

Download

Form 5000 | Product Catalog

Form 5000 | Product Catalog

Download


AK-AL with Plain Head - 2" NPT RH/LH	PDF

AK-AL with Relief Valve - 2" NPT Flange RH/LH	PDF
