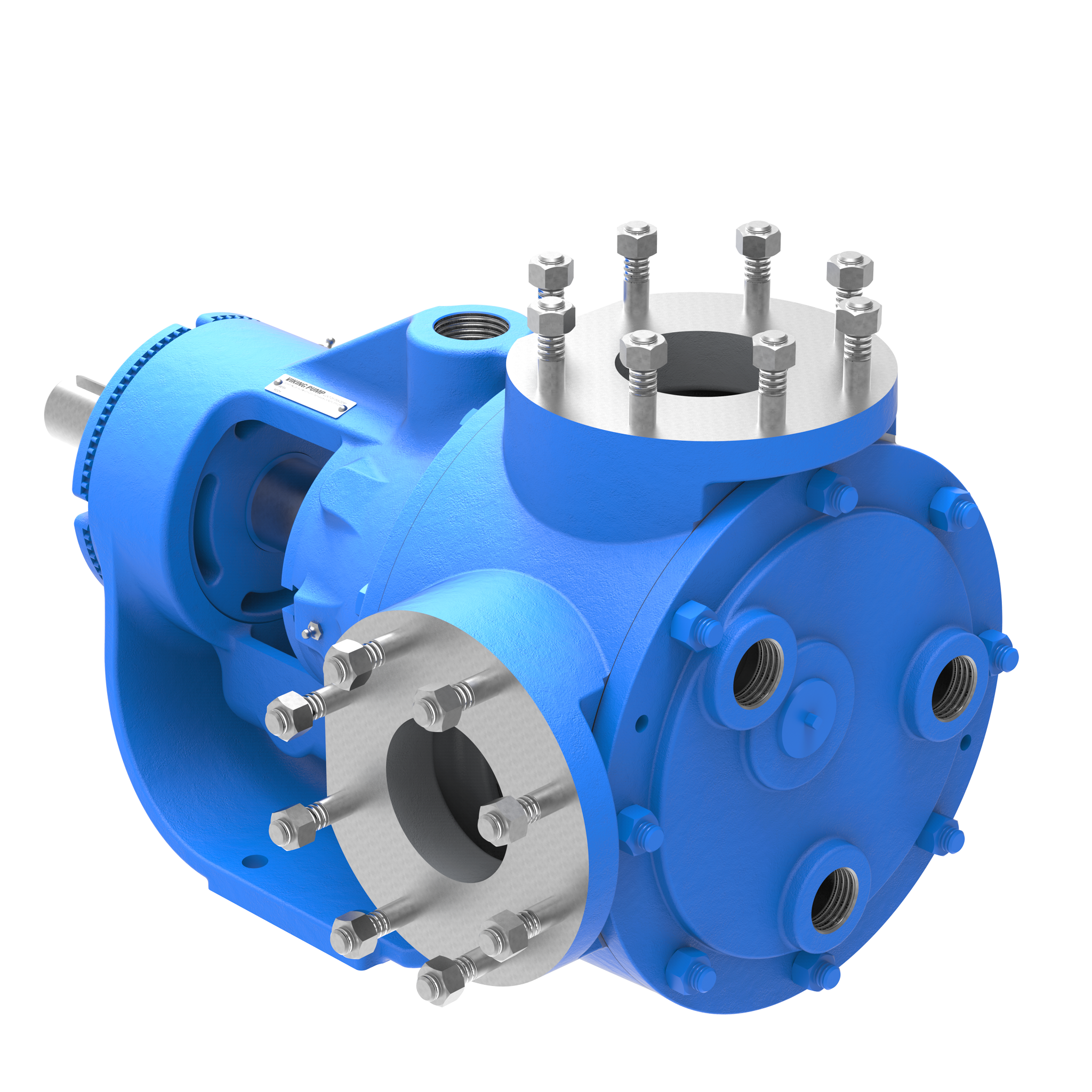

Viking Pump Q4224B Model

Section

Capacity

300 GPM
68 m³/h

Viscosity

28 to 250,000 SSU
0.1 to 55,000 cSt

Pressure

200 PSI
14 BAR

Temperature

-60 to +450°F
-50 to +230°C

Options

Porting

Flanged (ASME / ANSI)

Right Angle (90°) (Rotatable Casing), H-Q & M

Other port options available

Drives

R Offset Gear Reducer Drive

P Purchased Gear Reducer Drive

D Direct-Mounted Drive

V Drive | V-Belt Drive

Mounting

Foot Mount

Sealing

Component Mechanical Seal

Cartridge Mechanical Seal

TSM / Catalog / Flyers / Brochures

Service Manual | 1400

Service Manual | 1400

Download

Technical Service Manuals

Service Manual | 1461

Service Manual | 1461

Download

Technical Service Manuals

Catalog Section | 1402 | Jacketed

Catalog Section | 1402 | Jacketed

Download

Catalog Sections

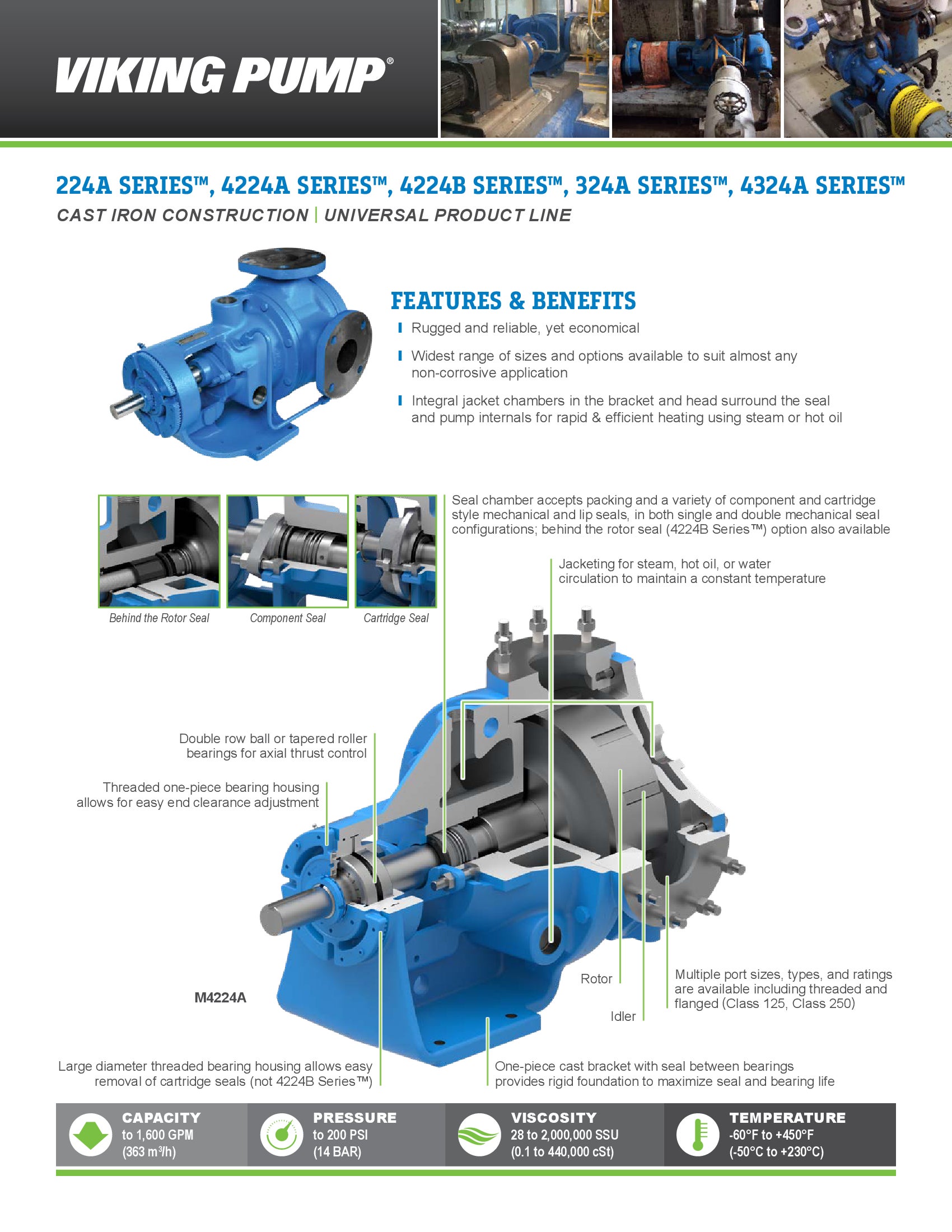

Flyer | Form 1402 | 224A / 4224A / 4224B / 324A / 4324A Series

Flyer | Form 1402 | 224A / 4224A / 4224B / 324A / 4324A Series

Download

Product Flyers

Repair Resources

Exploded Diagram for Series 4124B - 4224B - 4624B - Sizes G/H/HL/AK/AL/K/KK/L/L…
Viking Pump Universal Seal Series with Behind the Rotor Seal Disassembly, Repair & Reassembly


Q4224B with Relief Valve - 4" Class 125 ANSI RH/LH	PDF	STEP

Q4224B with Jacketed Relief Valve - 4" Class 125 ANSI RH	PDF	STEP

Q4224B with Jacketed Head - 4" Class 125 ANSI RH/LH	PDF	STEP
