Reliable Polyol Pumping with O-Pro® Seal Technology
Polyols are easy to handle, but choosing the right pump and seal is key to long-term reliability. Viking Pump’s internal gear pumps offer durable construction and precise flow control, ideal for polyol applications. Their patented O-Pro® Seal enhances leak prevention and reduces maintenance, while enabling standardized pump configurations across polyol and isocyanate systems—simplifying inventory, training, and ensuring consistent performance.
1124A SERIES™
- Rugged design provides superior performance in many markets
- Tight clearances offer high efficiency and excellent priming capabilities
- O-Pro® Barrier combines reliable sealing with easy maintenance
- O-Pro® Barrier is standard with FKM elastomers
| CAPACITY | VISCOSITY | PRESSURE | TEMPERATURE |
| 1.8 to 91 m³/h 8 to 400 GPM |
100 to 2,000,000 SSU 20 to 440,000 cSt |
to 200 PSI to 14 BAR |
0 to+350 °F -15 to +175 °C |
Tough Performance for Filled Polyol Applications: 4624B Series™
Filled polyols are highly abrasive, demanding specialized equipment. Viking Pump’s 4624B Series™ is built for the challenge, featuring hardened components and a rugged internal gear design that ensures consistent flow, reduced maintenance, and long service life—even in high-viscosity, continuous-duty environments. It’s the reliable choice for high-load urethane foam production.
4624B SERIES™
- Ultra-hard tungsten carbide idler pin and tungsten carbide idler bushing minimize wear in this key area, since a constant supply of abrasive material is flowing through the pumping elements.
- Behind-the-rotor pinned-seat mechanical seal with hard silicon carbide vs. silicon carbide seal faces, featuring external flush line from pump discharge to remove solids build-up, ensuring longest possible seal life (note: no flush line on F & FH sizes).
- The grease-lubricated bracket bushing is not contacted by the pumped liquid, for long life. The pump is re-greasable, with a lip seal at the stuffing box.
| CAPACITY | VISCOSITY | PRESSURE | TEMPERATURE |
| 0.75 to 182 GPM 0.17 to 41 m³/h |
38 to 250,000 SSU 3 to 55,000 cSt |
to 150 PSI to 10 BAR |
-40to +300°F -40 to +150°C |
Sealless Solutions for Isocyanate Applications: 895 & 8124A Series™
Isocyanates like MDI and TDI are moisture-sensitive and difficult to handle. Viking Pump’s 895 and 8124A Series™ magnetic drive pumps offer a sealless design that eliminates leak risks and seal failures, ensuring safe, reliable containment. With no dynamic seals to maintain, these pumps reduce downtime and maintenance—ideal for both batch and continuous isocyanate processes.

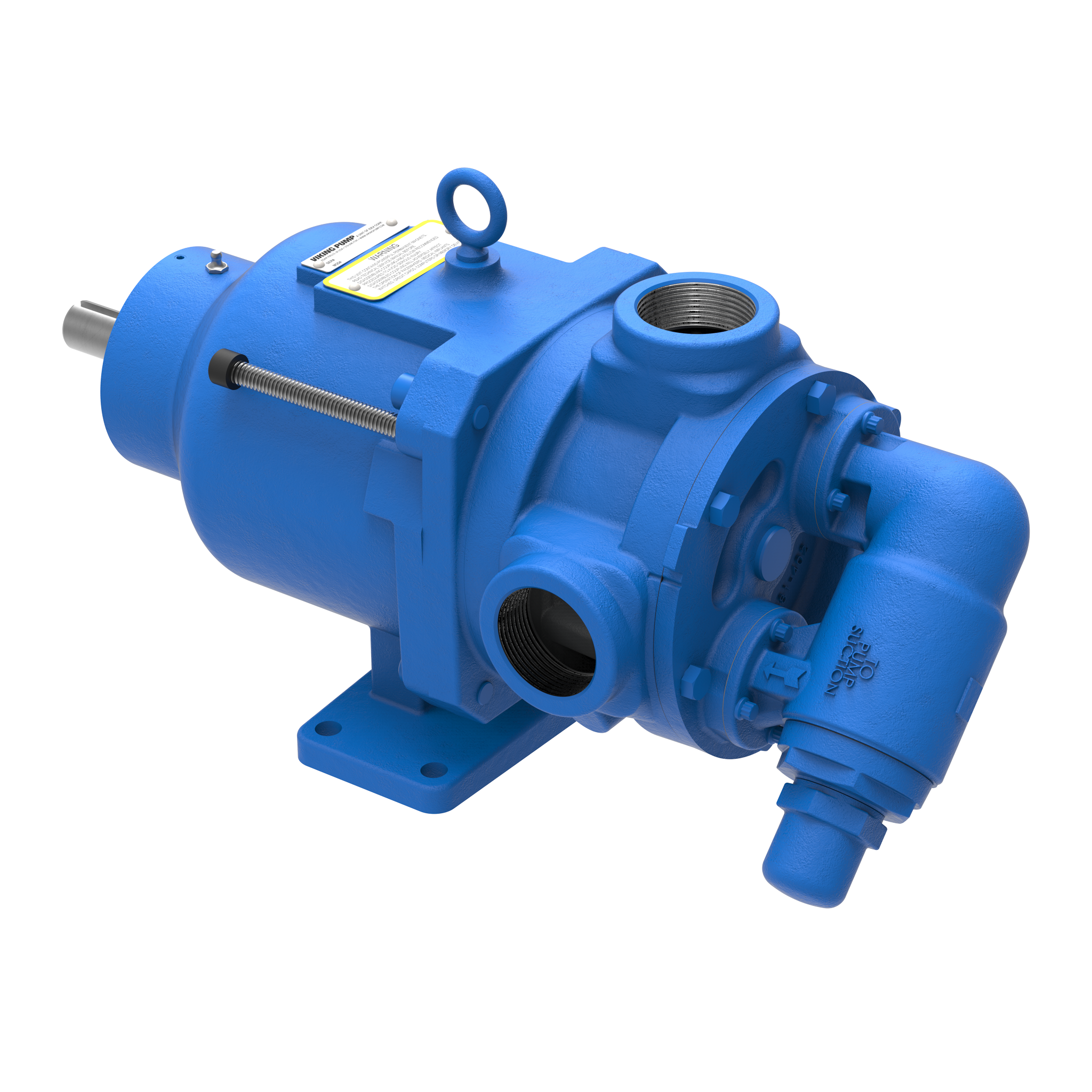

8124A SERIES™
- Sealless mag drive eliminates the shaft seal to provide the highest level of liquid and vapor containment
- All liquid and vapor is hermetically sealed in the pump
- Used especially for hazardous and difficult-to-seal liquids
| CAPACITY | VISCOSITY | PRESSURE | TEMPERATURE |
| to 500 GPM to 114 m³/h |
28 to 250,000 SSU 1 to 55,000 cSt |
to 200 PSI to 14 Bar |
-60 to +450 °F -50 to +230 °C |

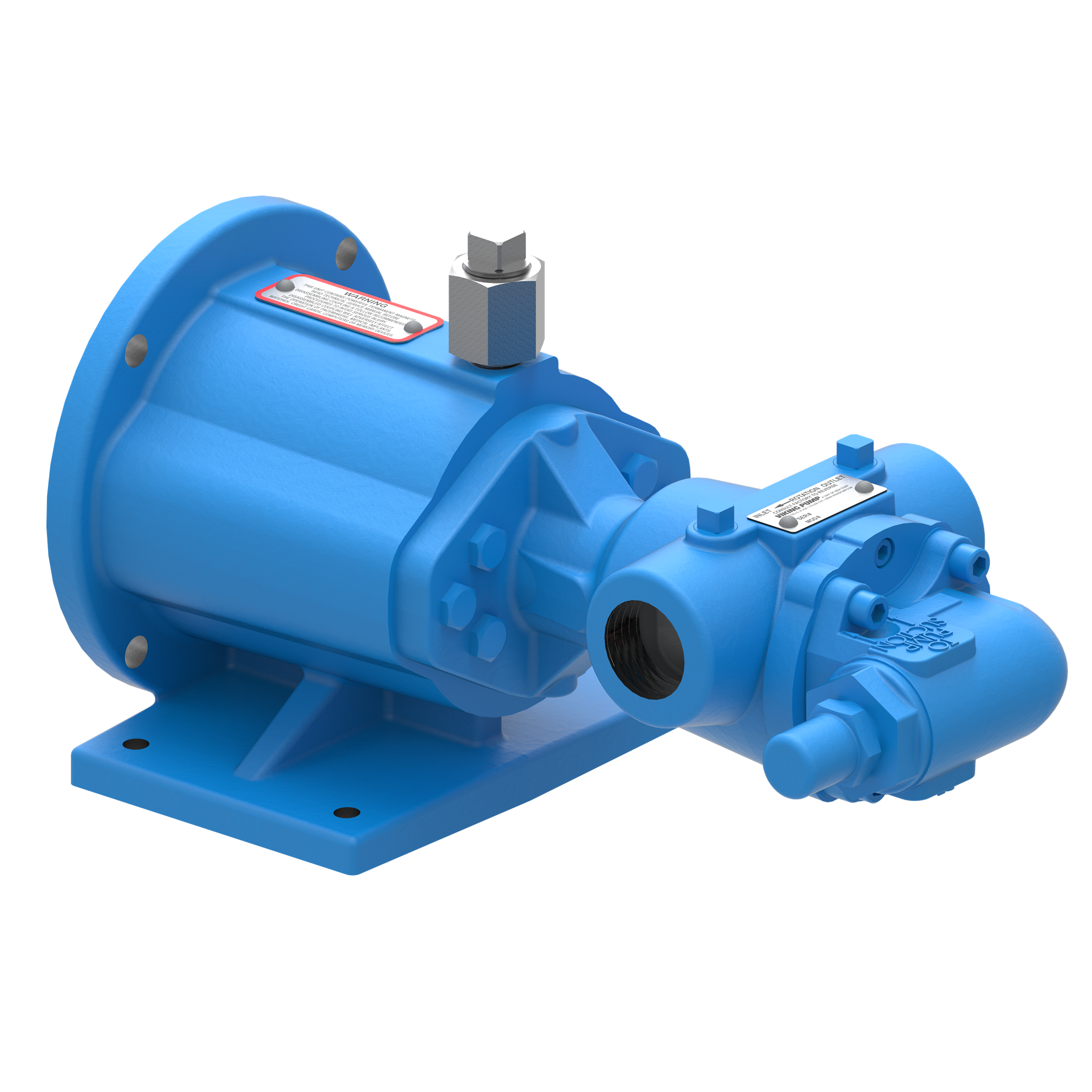

895 SERIES™
- Sealless mag drive eliminates the shaft seal to provide the highest level of liquid and vapor containment
- All liquid and vapor is hermetically sealed in the pump
- Used especially for hazardous and difficult-to-seal liquids
- Optional high pressure canister for inlet pressures up to 2,250 PSI (155 BAR)
| CAPACITY | VISCOSITY | PRESSURE | TEMPERATURE |
| to 75 GPM to 17 m³/h |
28 to 250,000 SSU 1 to 55,000 cSt |
to 125 PSI to 9 Bar |
-60 to +450 °F -50 to +230 °C |
Precision Pumping for Blowing Agents: 4924A Series™
Blowing agents require precise handling due to low viscosity and volatility. Viking Pump’s 4924A Series™ is built for thin liquids under high inlet pressure, delivering accurate metering and smooth flow. With a 50 PSI differential pressure limit, it minimizes wear and ensures reliable performance—even with minimal lubrication. It’s the trusted choice for fluorocarbon-based blowing agents.

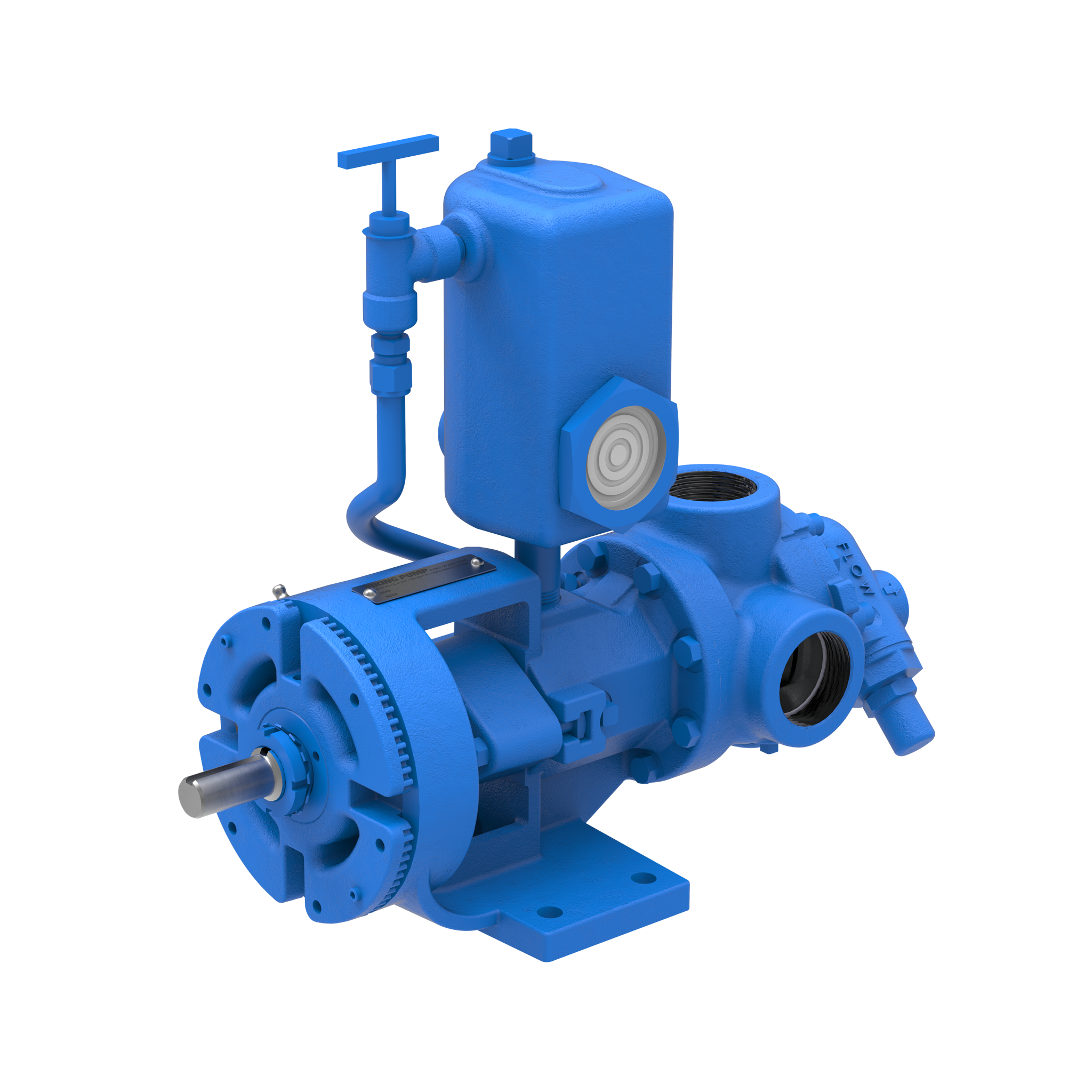

4924A SERIES™
- Cast Iron
- Double mechanical seal with barrier fluid for superior containment
- Five sizes from 10 to 60 GPM
| CAPACITY | PRESSURE | TEMPERATURE |
| 10 to 60 GPM 2.3 to 13.6 m³/h |
to 50 PSI to 3.5 Bar |
-40 to +225 °F -40 to +105 °C |
With over 110 years of experience providing positive displacement pumping solutions, Viking Pump has a rich, lengthy history of providing engineered solutions for tough applications. We have dedicated sales and field support specialists who are supported by a team of customer service representatives and engineers. Our knowledgeable team of application engineers available to help with product selection and technical support. USA based company with vertically integrated manufacturing facility.
ALL PUMPS FACTORY TESTED
Our state-of-the-art testing equipment is used to confirm performance prior to shipments. Our world-class lab gives Viking Pump the ability to test our pump designs across a range of relevant variables.
TEST LAB
Our world-class lab gives Viking the ability to test its glycol pump designs across a range of relevant variables.

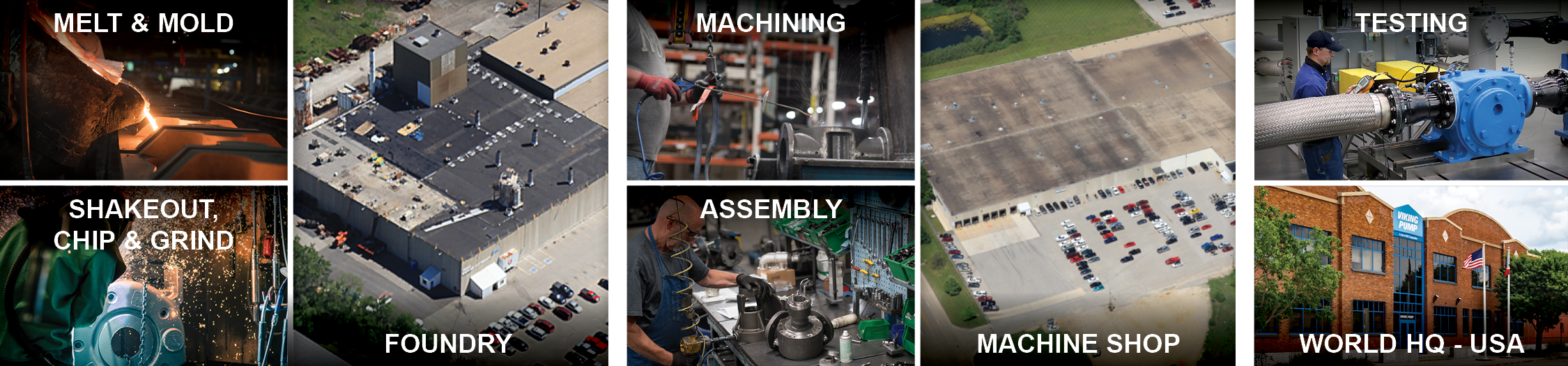

VERTICALLY INTEGRATED PRODUCTION PROCESS
Viking Pump operates a foundry, a 200,000+ sq. ft. machining, assembly and testing center, and an extensive product engineering and testing lab in its world headquarters in Cedar Falls, Iowa, USA. This level of vertical integration ensures maximum quality, ability to satisfy special needs, and to meet project schedules.
Need help choosing the right pump or sealing solution?
Viking Pump’s team of experts is here to support you.
Whether you have technical questions, need a quote, or want guidance on your specific application, we’re ready to help you find the best solution. Fill out our contact form and let us know how we can assist—your process performance starts with the right partner.
