4227C Series™

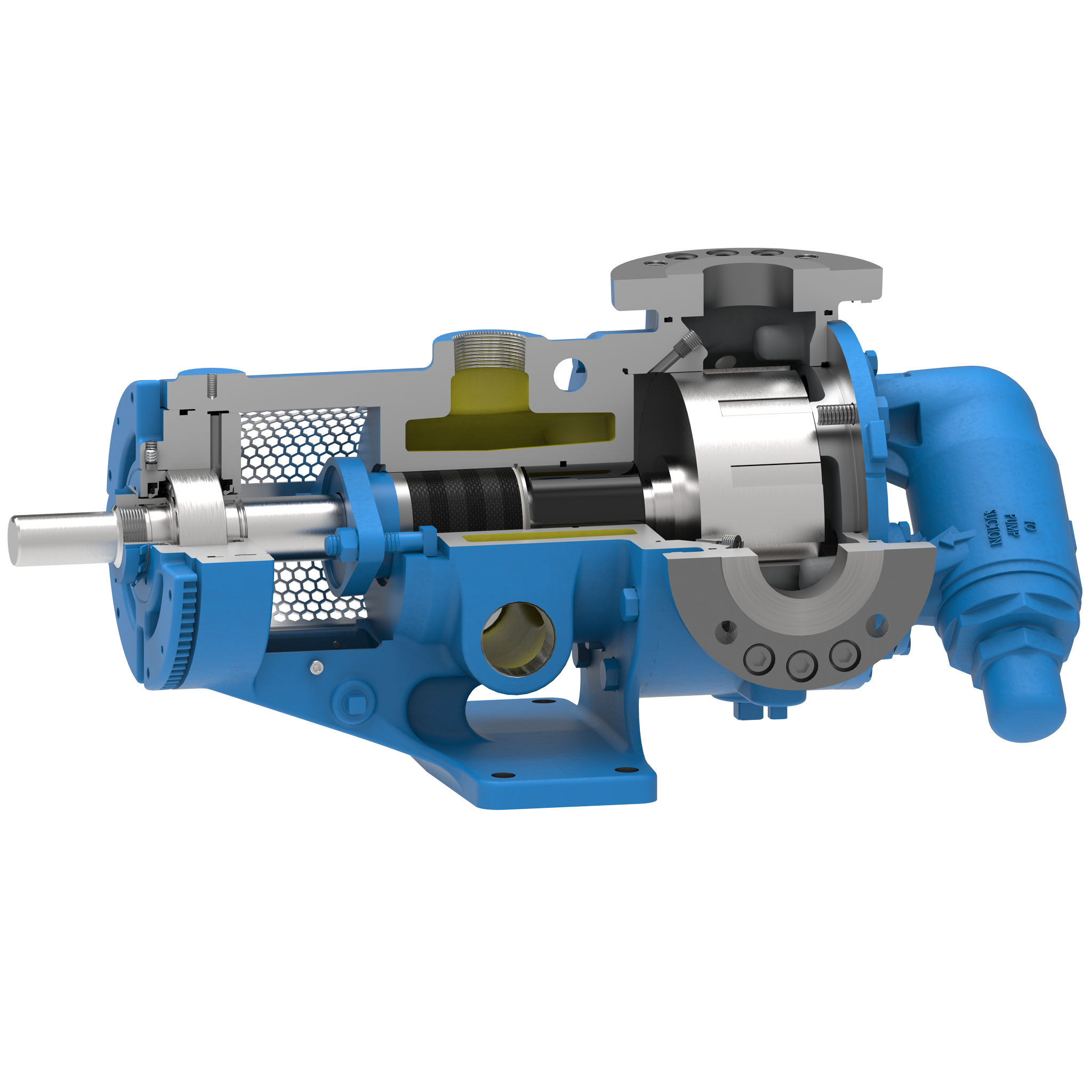

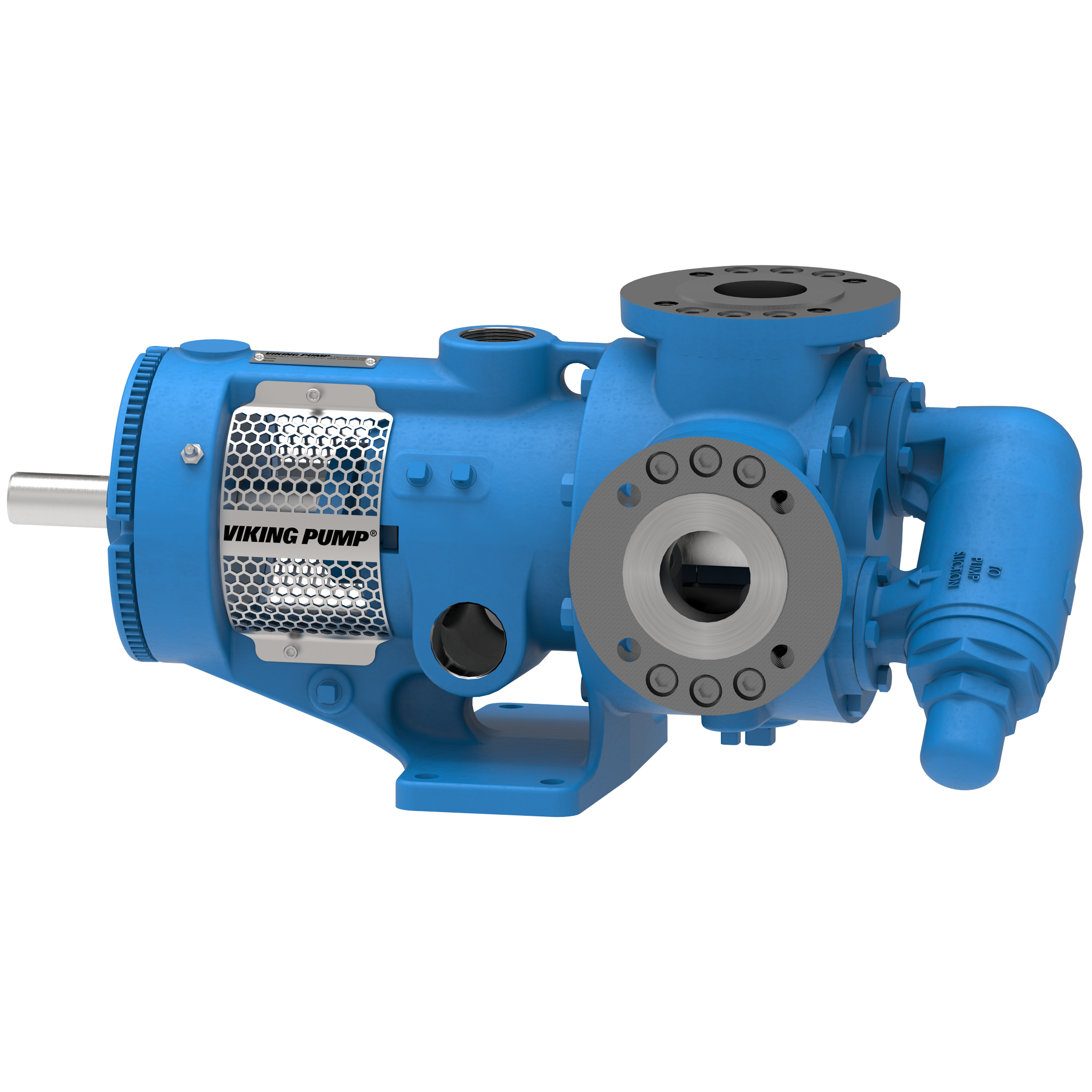

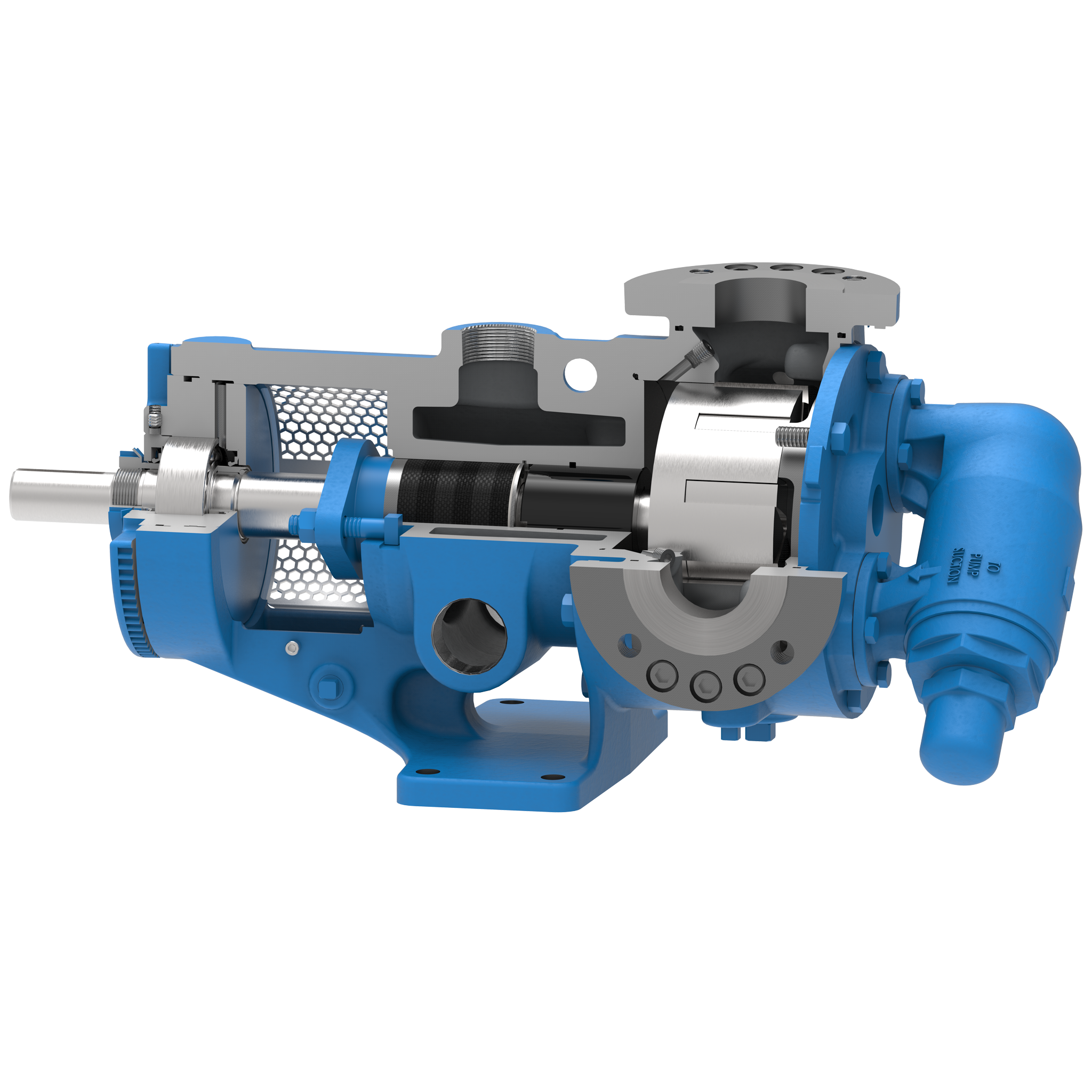

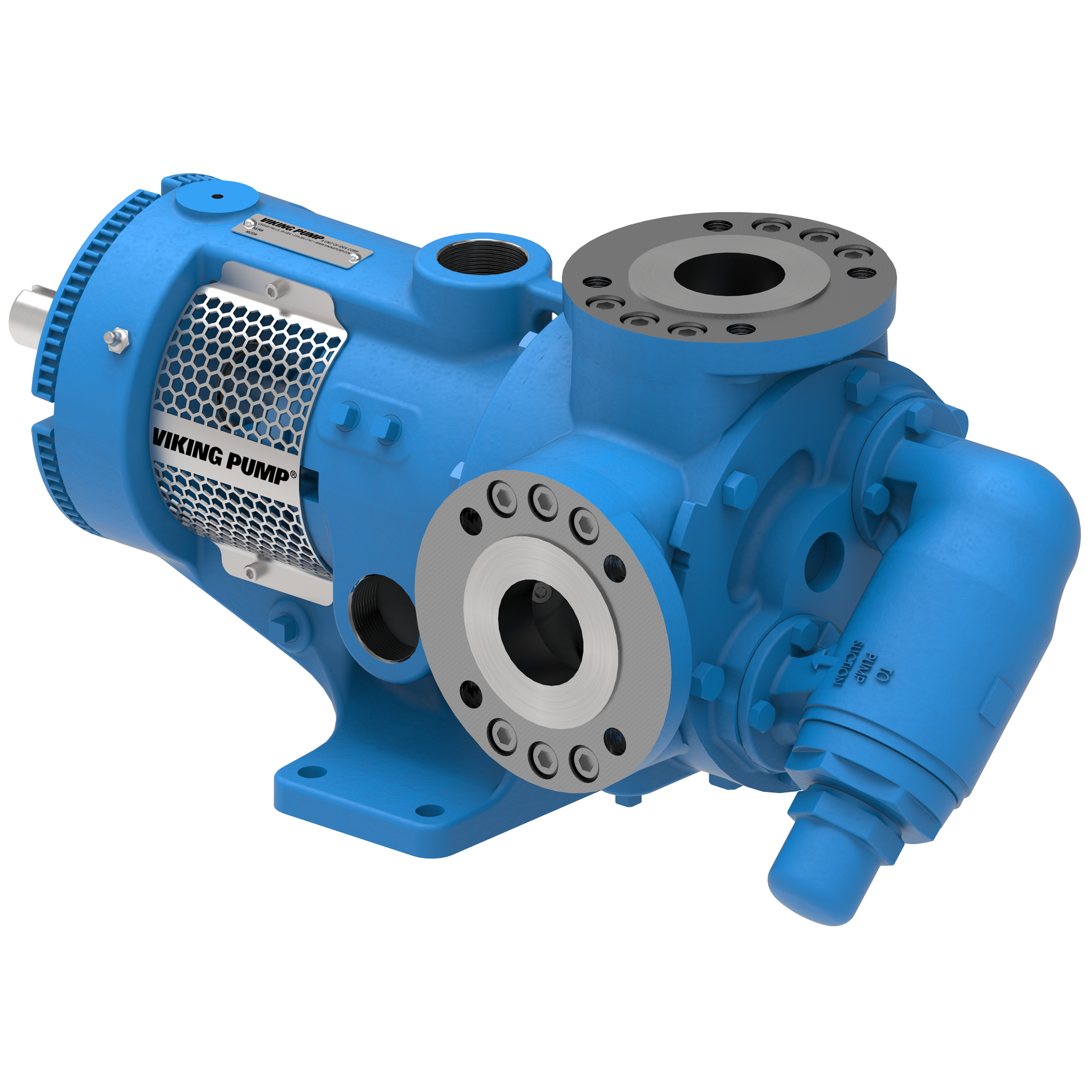

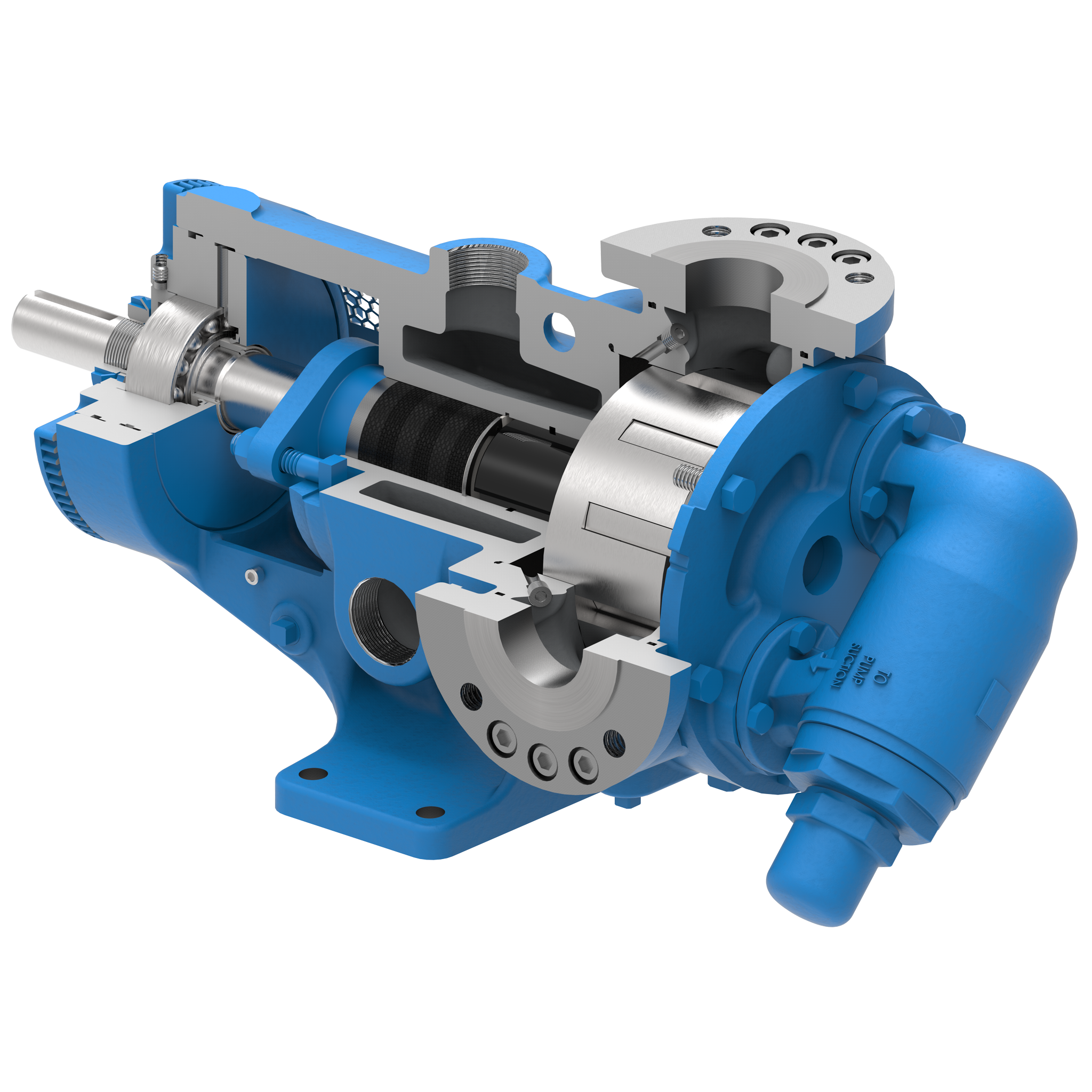

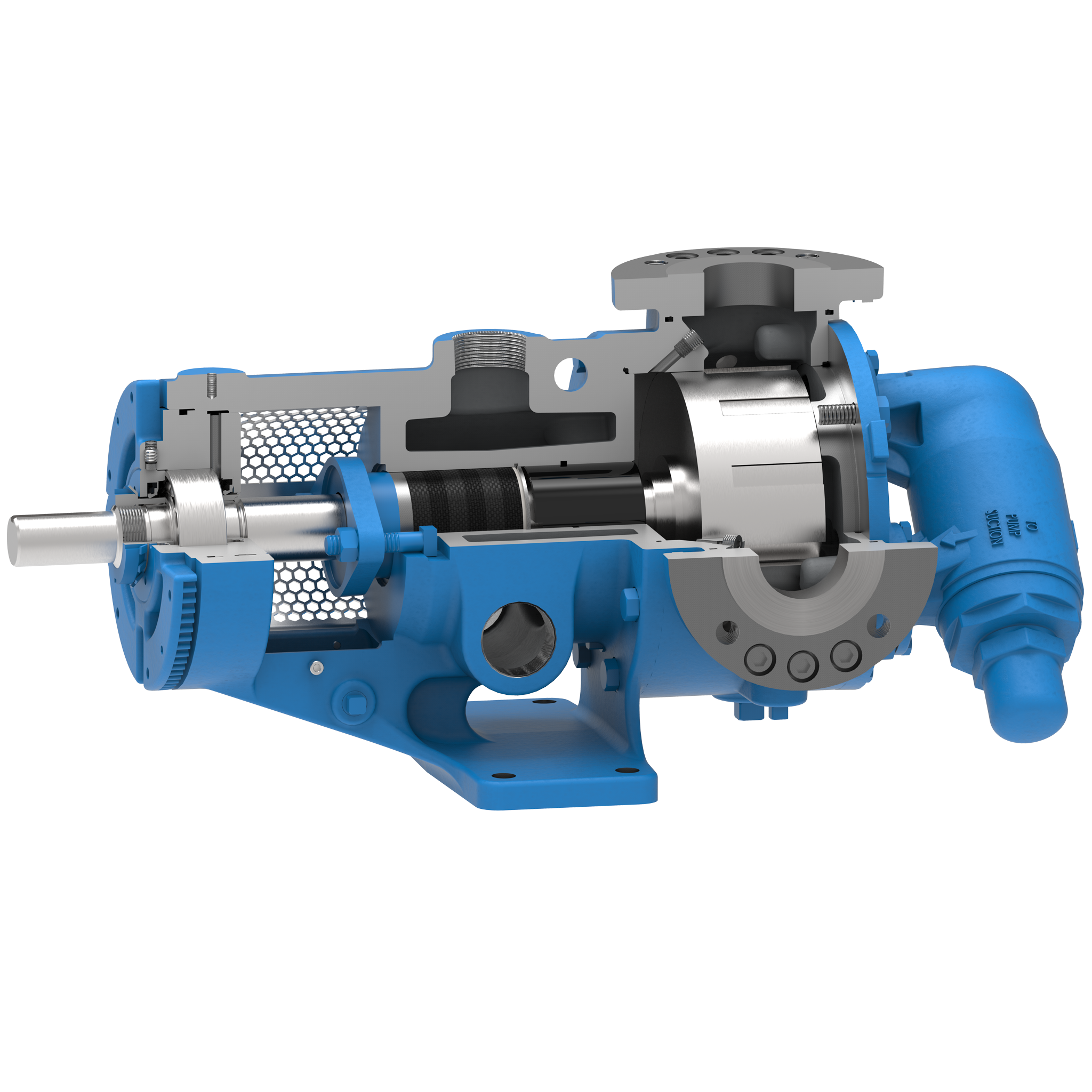

Den invändigt kuggade pumpen i rostfritt stål i 4227C Series™ är en flexibel, enkel och anpassningsbar lösning för en mängd olika applikationer. Den här nya generationen pumpar levereras som standard med invändig mantel, U-Plus™-fäste för mekaniska tätningar samt ProPort™-hölje som kan anpassas till en mängd olika portstorlekar och porttyper beroende på dina behov. Den kan hantera flöden på upp till 73 m³/h (320 GPM).

Funktioner och fördelar

Konstruktion helt i rostfritt stål för korrosionsbeständighet över ett större pH-intervall
ProPort™-höljet har monteringsplattor på varje port som är utformade för att passa en mängd olika flänstyper och storlekar, vilket ger flexibilitet vid anslutning av pumpar till rörledningar
U-Plus™-fäste, tillgängligt på H-QS-storlekar, erbjuder tätningsplacering i packboxen eller bakom rotorn
Integrerade mantlade kammare i konsol och huvud gör att pumparna kan hålla konstant temperatur och jämnt produktflöde
Motsatta portar tillgängliga på alla pumpstorlekar

Prestanda

Videor

Vätskor

Nedladdningar

Kapacitet

till 320 GPM
till 73 m³/h

Viskositet

28 till 2,000,000 SSU
0.1 till 440,000 cSt

Tryck

till 150 PSI
till 10 BAR

Temperatur

-120°F till +500°F
-85°C till +260°C

Alternativ

Portar

Rät vinkel (90 °) (roterbart hölje), H–Q

Opposite (180°) (Rotatable Casing), H-QS

NPT

Med fläns (ANSI/ASME- eller DIN-kompatibel)

Drift

R, kompensationsdrift för växelreducerare

P, köpt drift för växelreducerare

D, direktmonterad drift, H–HL

V, drift | V, remdrift

Montering

Fotmontering

Tätningar

Mekaniska tätningar

Mekanisk komponenttätning

Mekanisk patrontätning

Specifikationer

Specifications
Modell	Standard portstorlek	Nominell pumpkapacitet GPM	Nominell pumpkapacitet m3/h	Maximalt RPM	Maximalt tryck PSI	Maximalt tryck BAR
H4227C	1.5	10	2.3	1150	150	10
HL4227C	1.5	20	4.5	1150	150	10
K4227C	2	50	11	520	150	10
KK4227C	2	65	15	520	150	10
L4227C	2.5	100	23	520	150	10
LL4227C	3	135	31	520	150	10
LS4227C	3	160	36	520	150	10
Q4227C	4	200	45	350	150	10
QS4227C	6	320	73	350	150	10

Select model for more detailed information:

H4227C , HL4227C , K4227C , KK4227C , L4227C , LL4227C , LS4227C , Q4227C , QS4227C

Photos

Videos

Melass

Melass definieras som den sirapsliknande moderlut som återstår efter att sackaros har avlägsnats från sockerrörssaften genom koncentrering. Om endast en skörd av kristaller har avlägsnats kallas den första melassen. Om den andra skörden har avlägsnats kallas produkten för andra melass, och så vidare. När det inte längre går att utvinna något rörsocker kallas produkten för Final Molasses eller Black Strap Molasses.

1224A-CHC®

Gjutjärn
Mantlad för ånga/olja före pumpstart
Läckageförebyggande med O-Pro® Barrier-tätning
Kapacitet upp till 500 GPM

1227C

Utvändiga detaljer i rostfritt stål
Mantelförsett alternativ för ånga/olja före pumpstart
Läckageförebyggande med O-Pro® Barrier-tätning
Kapacitet upp till 320 GPM

224A

Gjutjärn
Mantlad för ånga/olja före pumpstart
Alternativ för härdat material
Kapacitet upp till 500 GPM

Jordnötssmör

Jordnötssmör tillverkas genom att man blandar malda jordnötter med olika tillsatser och fyllnadsmedel. Från blandaren pumpas jordnötssmöret genom en avluftare och/eller värmeväxlare för att avlägsna medföljande luft och sänka temperaturen innan det pumpas till maskinerna för fyllning av burkar.

1224A-CHC®

Gjutjärn
Mantlad för ånga/olja före pumpstart
Läckageförebyggande med O-Pro® Barrier-tätning
Kapacitet upp till 400 GPM

1227C

Utvändiga detaljer i rostfritt stål
Mantelförsett alternativ för ånga/olja före pumpstart
Läckageförebyggande med O-Pro® Barrier-tätning
Kapacitet upp till 320 GPM

TRA®10

316L rostfritt stål
O-ring eller mekaniska tätningar

Tvålar

Kettle soap, soap stock, soap skimmings och flytande tvål är en blandning av natriumsalter av olika fettsyror i naturliga oljor och fetter. Vanlig tvål är till stor del en blandning av natriumsalterna av palmitinsyra, stearinsyra och oljesyra. Kolofoniumtvål för tvättändamål framställs genom tillsats av en tvål gjord av kolofonium eller kolofonium självt till en vanlig tvål.

TRA®10

316L rostfritt stål
O-ring eller mekaniska tätningar

CLASSIC+

316L rostfritt stål
Mekaniska tätningar

4127C

316 Rostfritt stål
Många olika tätningsalternativ
Kapacitet upp till 320 GPM

Ytaktiva ämnen

Tensider minskar ytspänningen i den vätska där de är upplösta. Används ofta i rengöringsprodukter för att emulgera oljor och hålla smuts eller andra partiklar i suspension. Används även vid kemisk bearbetning, t.ex. etanolproduktion.

4127C

316 Rostfritt stål
Många olika tätningsalternativ
Kapacitet upp till 320 GPM

TRA®10

316L rostfritt stål
O-ring eller mekaniska tätningar
