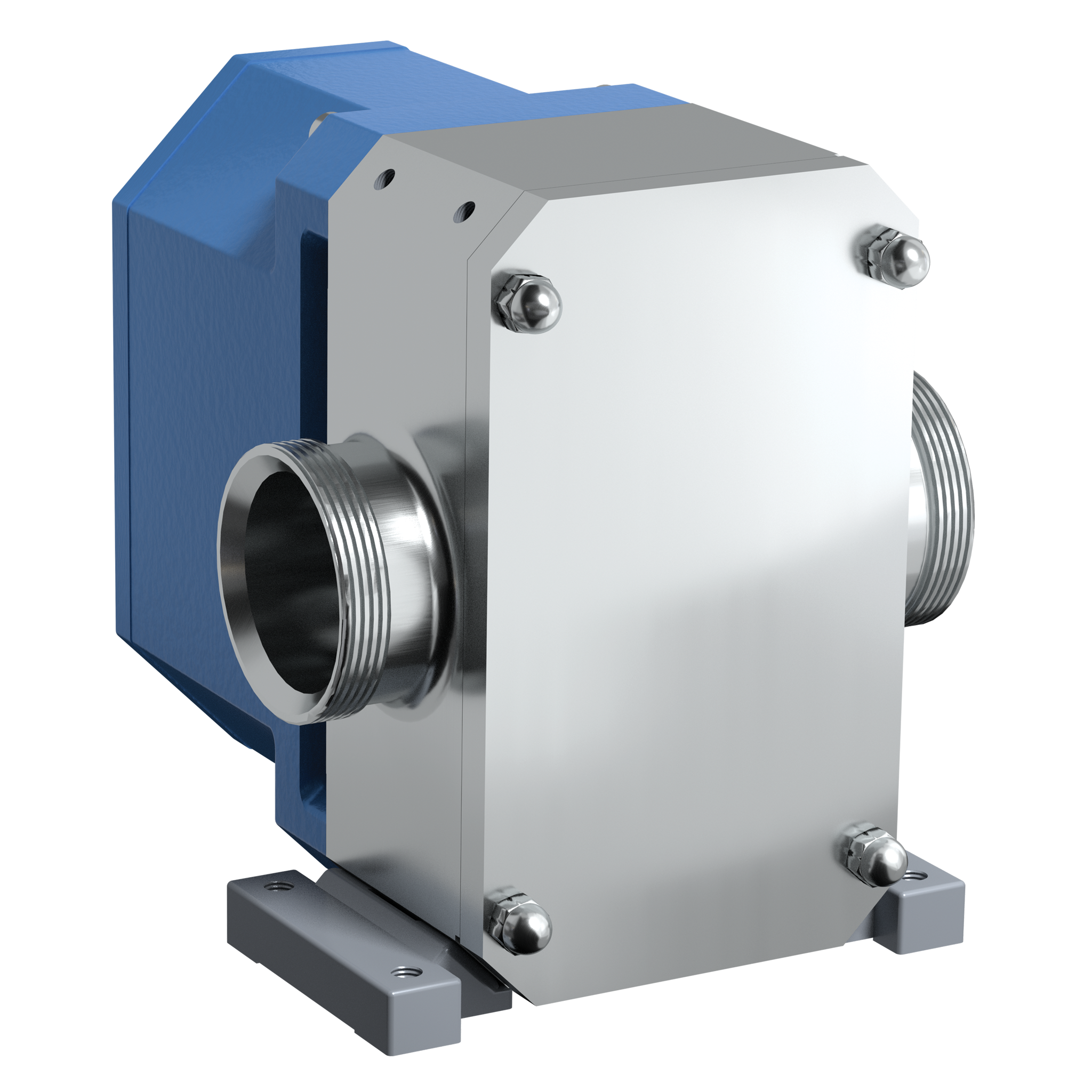

Viking Pump RTP20 Model

Section

Capacity

264 GPM
60 m³/h

Viscosity

0.1 to 910,000 SSU
0.1 to 200,000 cSt

Pressure

145 PSI
10 BAR

Temperature

to +230°F
to +110°C

Options

Porting

Camlock, ACME & DIN 11851 ports available

Drives

Close Coupled Hydraulic

Mounting

SAE 2 & 4 bolt mounting flange for close coupled hydraulic drive applications

Sealing

Single O-ring

Single Mechanical

Double Mechanical with Flush

TSM / Catalog / Flyers / Brochures

Service Manual | 1727 RTP

Service Manual | 1727 RTP

Download

Technical Service Manuals

Catalog Section | 1727 | RTP

Catalog Section | 1727 | RTP

Download

Catalog Sections

Catalog Section | 1727 | RTP

Catalog Section | 1727 | RTP

Download

Catalog Sections

Flyer | Form 1727 | RTP Series

Flyer | Form 1727 | RTP Series

Download

Product Flyers

Brochure | Form 1020 Hygienic Products

Brochure | Form 1020 Hygienic Products

Download

Product Flyers

REPAIR RESOURCES

RTP® Series | Single & Double O-ring Seal Replacement


RTP20 with Relief Valve - 3" ASA/ANSI Class 150 Top Shaft Drive	PDF	STEP

RTP20 - 3" Bevel/ACME/IAMD Top Shaft Drive	PDF	STEP
