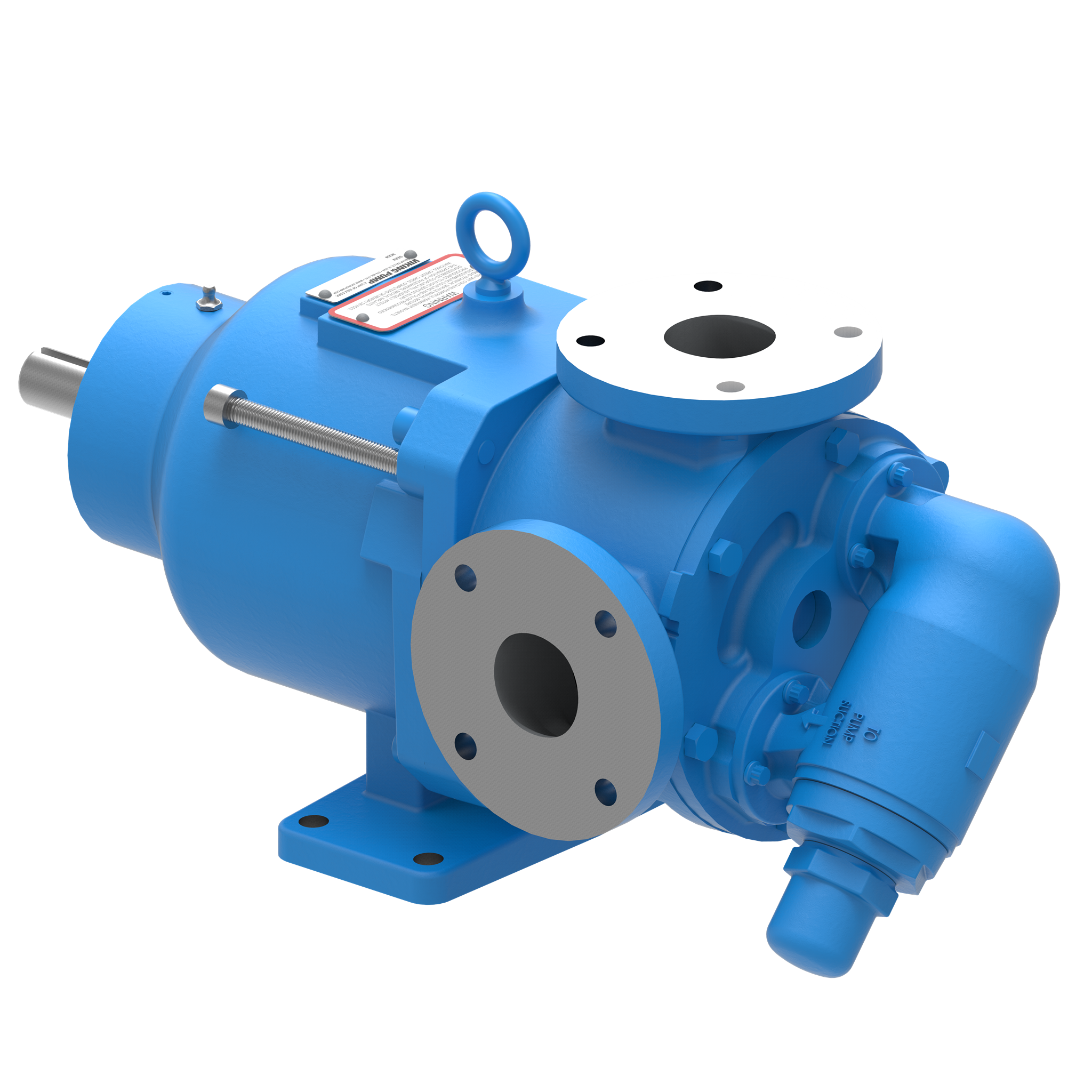

Viking Pump HL8127A Model

Section

Capacity

30 GPM
6.8 m³/h

Viscosity

25 to 250,000 SSU
1 to 55,000 cSt

Pressure

150 PSI
10 BAR

Temperature

-120 to +500°F
-85 to +260°C

Options

Porting

Flanged (ASME / ANSI)

Right Angle (90°) (Rotatable Casing), H-Q & M

Other port options available

Drives

R Offset Gear Reducer Drive

P Purchased Gear Reducer Drive

D Direct-Mounted Drive

Mounting

Foot Mount

Sealing

Mag Drive

TSM / Catalog / Flyers / Brochures

Service Manual | 1703

Download

Technical Service Manuals

Catalog Section | 1703

Download

Catalog Sections

Liquid Flyer | Alcohols

Download

Application Flyers

Repair Resources

Mag Drive Repair | 8124A Series™, 8123A Series™, & 8127A Series™

DRAWINGS


HL8127A with Relief Valve - 1.5" Class 150 ANSI RH/LH	PDF	STEP

HL8127A with Jacketed Head - 1.5" Class 150 ANSI RH/LH	PDF	STEP

Capacity

Viscosity

Pressure

Temperature

Options

Porting

Drives

Mounting

Sealing

Technical Service Manuals

Catalog Sections

Application Flyers
