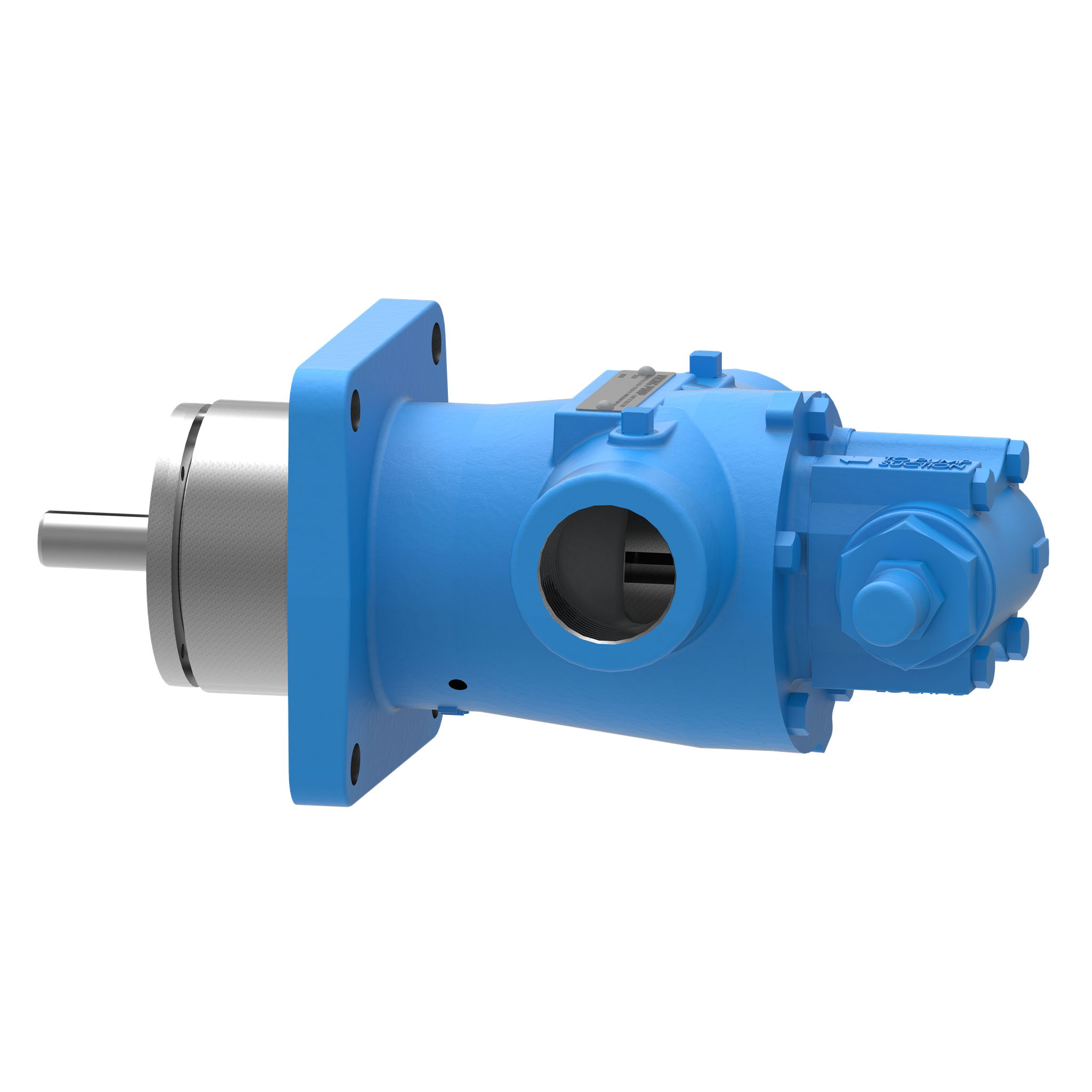

Viking Pump HL495 Model

Section

Capacity

30 GPM
6.8 m³/h

Viscosity

0.1 to 25,000 SSU
0.1 to 5,500 cSt

Pressure

250 PSI
17 BAR

Temperature

-40 to +300°F
-40 to +150°C

Options

Porting

NPT

Opposite (180°)

Drives

M Motor Mounted Drive

D Direct-Mounted Drive

R Offset Gear Reducer Drive

P Purchased Gear Reducer Drive

Mounting

Motor Mount

Foot Mount

Vertical Mount

Sealing

Mechanical Seals

TSM / Catalog / Flyers / Brochures

Service Manual | 1441

Service Manual | 1441

Download

Technical Service Manuals

Service Manual | 1441

Service Manual | 1441

Download

Technical Service Manuals

Catalog Section | 1441

Catalog Section | 1441

Download

Catalog Sections

Flyer | Form 1441 | 495 / 4195 Series

Flyer | Form 1441 | 495 / 4195 Series

Download

Product Flyers

Repair Resources

Exploded Diagram for Series 493/4193 (Steel) - 495/4195 (iron) - and 4197 (SS) …
Exploded Diagram for Series 493/4193 (Steel) - 495/4195 (iron) - 4197 (SS) - Si…


HL495 with Plain Head - 1.5" NPT Opposite	PDF	STEP

HL495 with Relief Valve - 1.5" NPT Opposite	PDF	STEP
