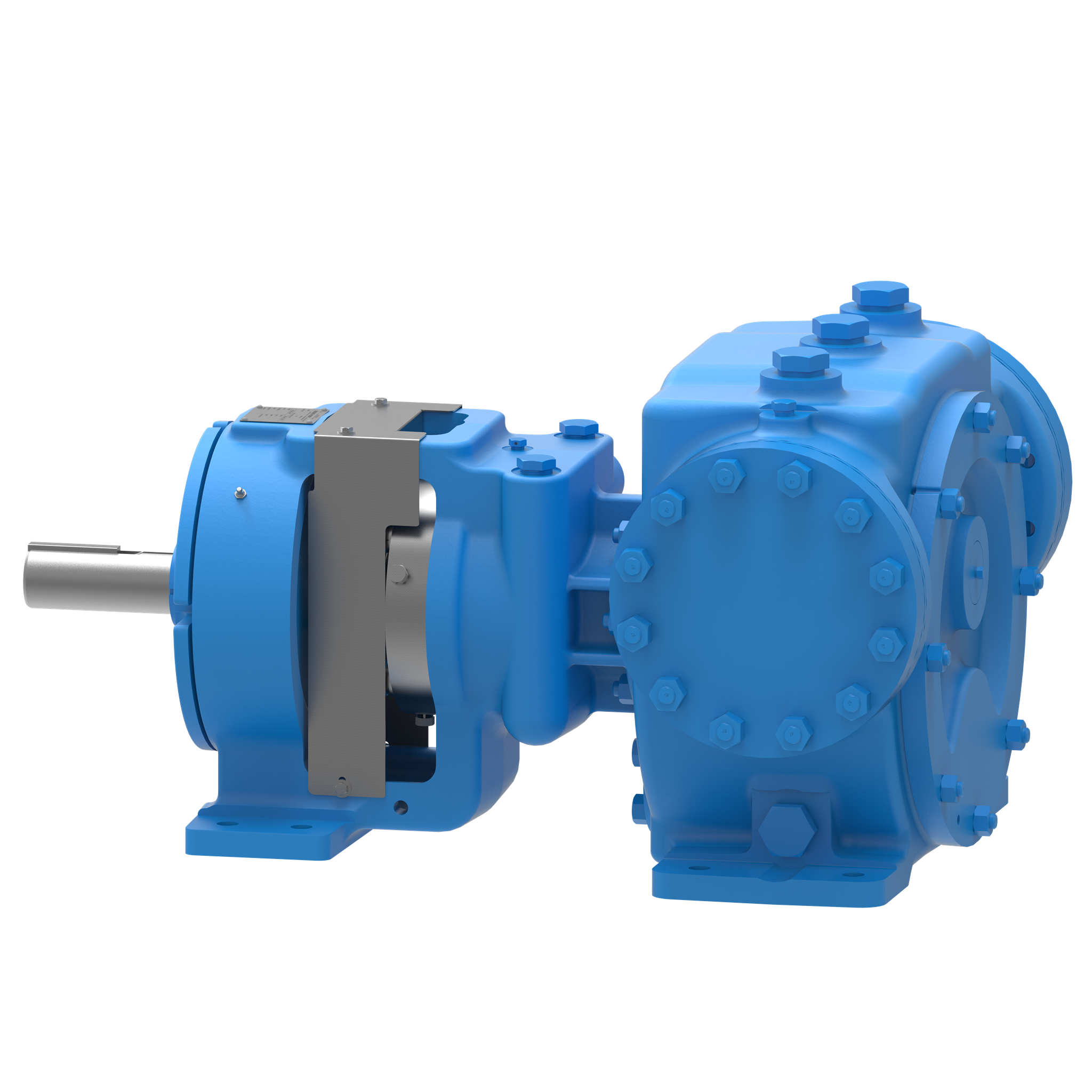

Viking Pump N4323AX Model

Section

Capacity

600 GPM
136 m³/h

Viscosity

28,000 SSU
1 a 7,500 cSt

Pressure

200 PSI
14 BAR

Temperature

-20 a +550°F
-30 a +290°C

Options

Porting

Flanged (ASME / ANSI)

Opposite (180°)

Drives

P Purchased Gear Reducer Drive

V Drive | V-Belt Drive

R Offset Gear Reducer Drive

V Drive | V-Belt Drive

Mounting

Foot Mount

Sealing

API 682 Cartridge Seal

TSM / Catalog / Flyers / Brochures

Service Manual | 1305

Service Manual | 1305

Descargar

Technical Service Manuals

Catalog Section | 1305 | Jacketed

Catalog Section | 1305 | Jacketed

Descargar

Catalog Sections

Catalog Section | 1000 | General Information

Catalog Section | 1000 | General Information

Descargar

Catalog Sections

Flyer | Form 1305 | 4223AX / 4323AX Series

Flyer | Form 1305 | 4223AX / 4323AX Series

Descargar

Product Flyers

Brochure | Form 1306 | API Compliant Internal Gear Pumps

Brochure | Form 1306 | API Compliant Internal Gear Pumps

Descargar

Product Flyers

REPAIR RESOURCES

Exploded Diagram for Series 4323AX - Sizes N & R
Viking Pump XPD 676 Series Pumps Bearing Replacement


N4323AX with Plain Head - 6" Class 300 ANSI Opposite	PDF	STEP

N4323AX with Jacketed Head - 6" Class 300 ANSI Opposite	PDF	STEP
