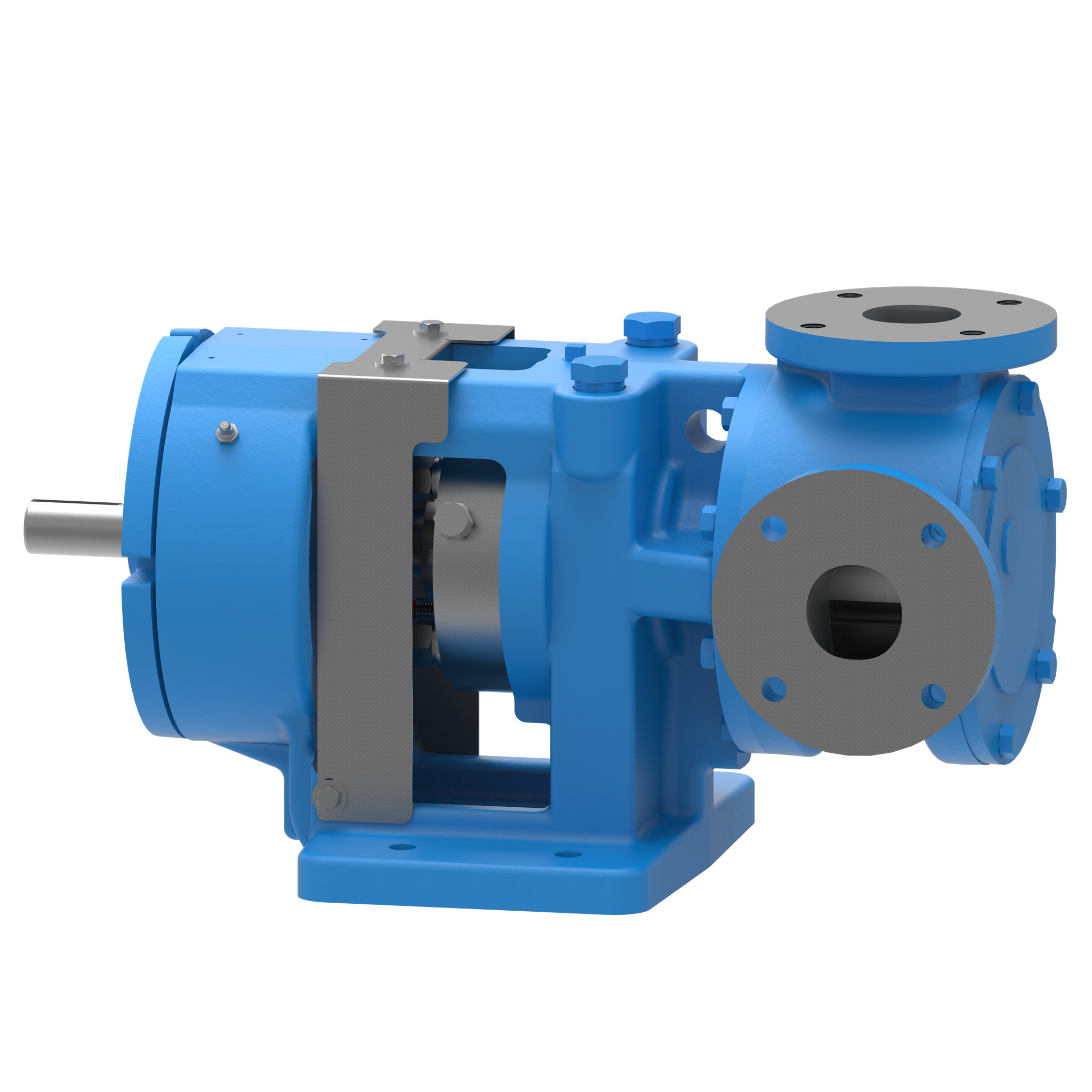

Viking Pump H4223AA Model

Section

Capacity

15 GPM
3.4 m³/h

Viscosity

28 to 35,000 SSU
1 to 7,500 cSt

Pressure

200 PSI
14 BAR

Temperature

-20 to +550°F
-30 to +290°C

Options

Porting

Flanged (ASME / ANSI)

Right Angle (90°) (Rotatable Casing)

Other port options available

Drives

D Direct-Mounted Drive

R Offset Gear Reducer Drive

P Purchased Gear Reducer Drive

V Drive | V-Belt Drive

Mounting

Foot Mount

Sealing

API 682 Cartridge Seal

TSM / Catalog / Flyers / Brochures

Service Manual | 1304

Download

Technical Service Manuals

Catalog Section | 1304 | Jacketed

Download

Catalog Sections

Brochure | Form 1306 | API Compliant Internal Gear Pumps

Download

Product Flyers

REPAIR RESOURCES

Viking Pump XPD 676 Series Pumps Bearing Replacement

DRAWINGS


H223AA with Plain Head - 1.5" Class 150 ANSI RH	PDF	STEP
