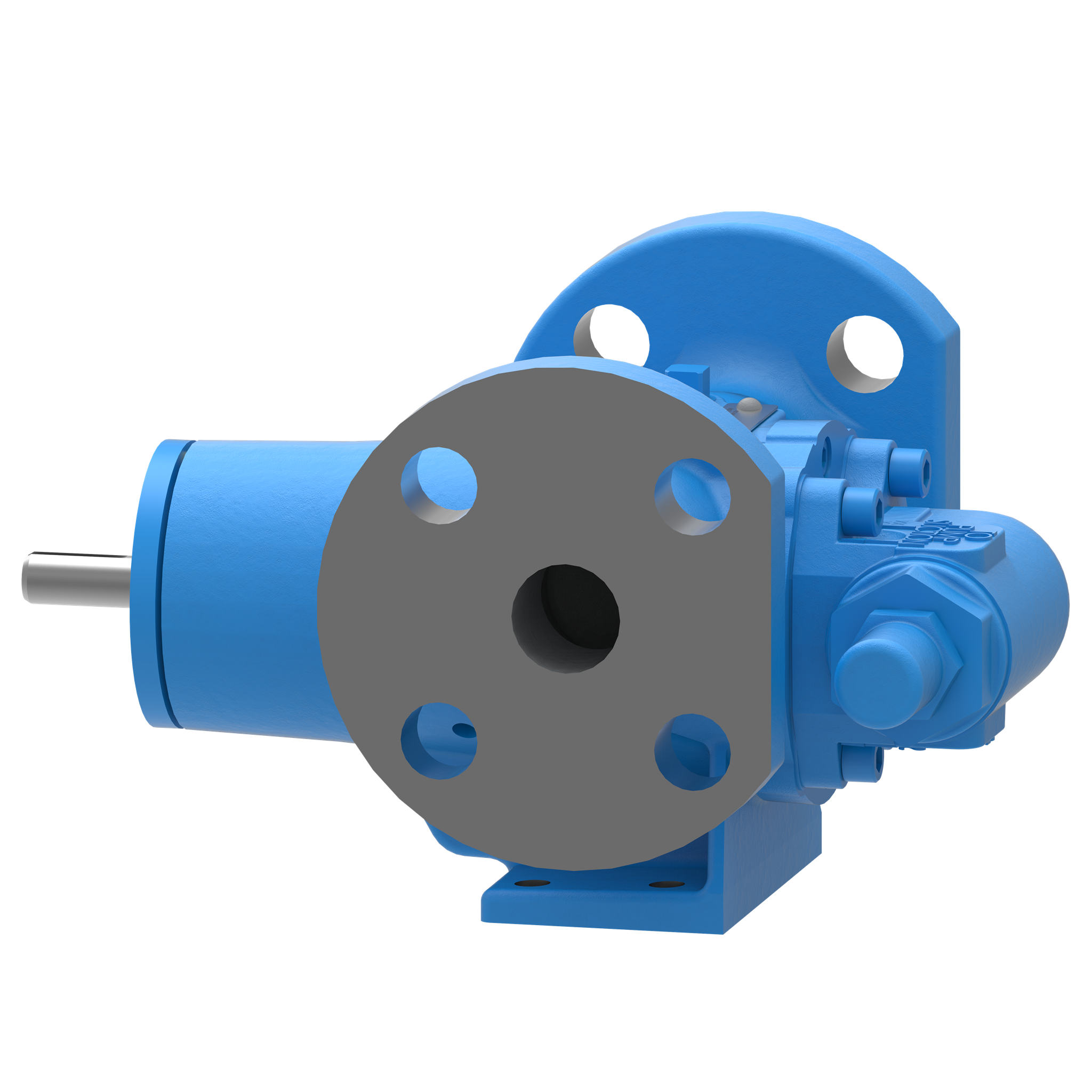

Viking Pump HJ4193 Model

Section

Capacity

20 GPM
4.5 m³/h

Viscosity

28 to 15,000 SSU
1 to 3,300

Pressure

250 PSI
17 BAR

Temperature

0 to +350°F
-20 to +175°C

Options

Porting

Flanged (ASME / ANSI)

Opposite (180°)

Drives

M Motor Mounted Drive

D Direct-Mounted Drive

IM Vertically In-Line Mounted Drive

Mounting

Motor Mount

Foot Mount

Vertical Mount

Sealing

Mechanical Seals

TSM / Catalog / Flyers / Brochures

Service Manual | 1341

Download

Technical Service Manuals

Catalog Section | 1341

Download

Catalog Sections

Flyer | Form 1341 | 493 / 4193 Series

Download

Product Flyers

Repair Resources

Exploded Diagram for Series 493/4193 (Steel) - 495/4195 (iron) - and 4197 (SS) …
Exploded Diagram for Series 493/4193 (Steel) - 495/4195 (iron) - 4197 (SS) - Si…
Viking Pump Motor Speed Series 493, 495, 4193, 4195, 4197 Pump Repair Kit Installation

DRAWINGS


HJ4193 with Relief Valve - 1.5" Class 300 ANSI Opposite	PDF	STEP

HJ4193 with Plain Head - 1.5" Class 300 ANSI Opposite	PDF	STEP
