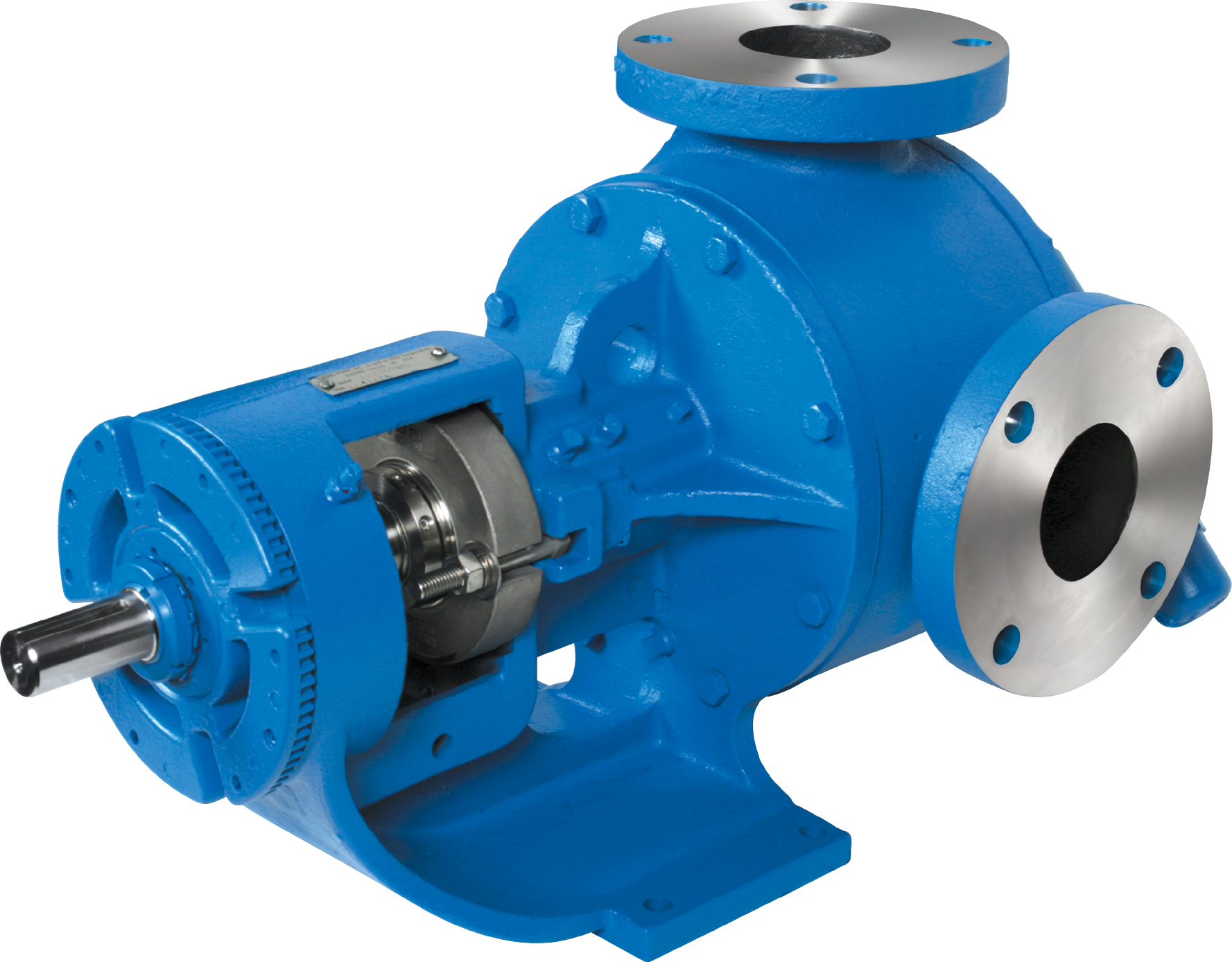

Viking Pump LQ4127A Model

Section

Capacity

90 GPM
20 m3/h

Viscosity

28 to 2,000,000 SSU
1 to 440,000 cSt

Pressure

150 PSI
10 BAR

Temperature

to 350F
to 175C

Options

Porting

Flanged (ASME / ANSI)

Right Angle (90°)

Drives

R Offset Gear Reducer Drive

P Purchased Gear Reducer Drive

V Drive | V-Belt Drive

Mounting

Foot Mount

Sealing

Mechanical Seal

TSM / Catalog / Flyers / Brochures

Service Manual | 1700

Service Manual | 1700

Download

Technical Service Manuals

Catalog Section | 1000 | General Information

Catalog Section | 1000 | General Information

Download

Catalog Sections

Catalog Section | 1701 | Non-Jacketed

Catalog Section | 1701 | Non-Jacketed

Download

Catalog Sections

Flyer | Form 1701 | 127A / 4127A / 327A / 4327A Series

Flyer | Form 1701 | 127A / 4127A / 327A / 4327A Series

Download

Product Flyers


LQ with Plain Head - 2.5" Class 125 ANSI RH/LH	PDF	STEP

LQ with Relief Valve - 2.5" Class 125 ANSI RH/LH	PDF	STEP
