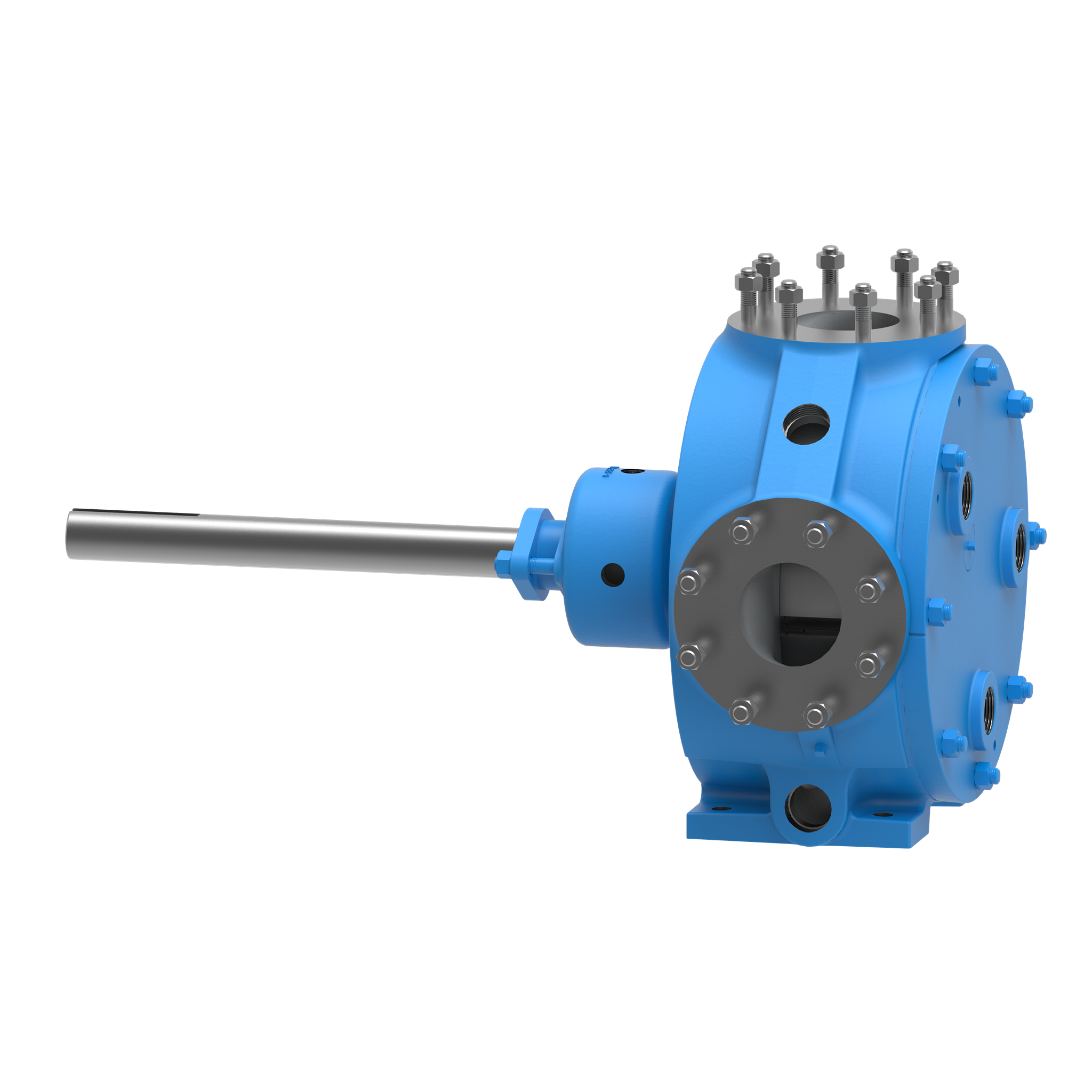

Viking Pump M34 Model

Section

Capacity

280 GPM
64 m³/h

Viscosity

31 to 250,000 SSU
1 to 55,00 cSt

Pressure

75 PSI
5.2 BAR

Temperature

-60 to +450°F
-50 to +230°C

Options

Porting

Flanged (ASME / ANSI)

Right Angle (90°)

Drives

R Offset Gear Reducer Drive

P Purchased Gear Reducer Drive

V Drive | V-Belt Drive

Mounting

Foot Mount

Sealing

Packing

TSM / Catalog / Flyers / Brochures

Service Manual | 1464

Service Manual | 1464

Download

Technical Service Manuals

Catalog Section | 1464

Catalog Section | 1464

Download

Catalog Sections

Flyer | Form 1491 | 34 Series

Flyer | Form 1491 | 34 Series

Download

Product Flyers

OEM Flyer | Asphalt

OEM Flyer | Asphalt

Download

Product Flyers

Repair Resources

Exploded Diagram for Series 32 (packed) and 432 (mechanical seal) - Sizes H/HL
Exploded Diagram for Series 32 & 34 (packed) - Sizes Q/M/N
Exploded Diagram for Series 32 (packed) - Sizes J/K/KK/L/LQ


M34 with Relief Valve - 4" Class 125 ANSI RH	PDF	STEP

M34 with Plain Head - 4" Class 125 ANSI RH/LH	PDF	STEP

M34 with Jacketed Relief Valve - 4" Class 125 ANSI RH	PDF	STEP
