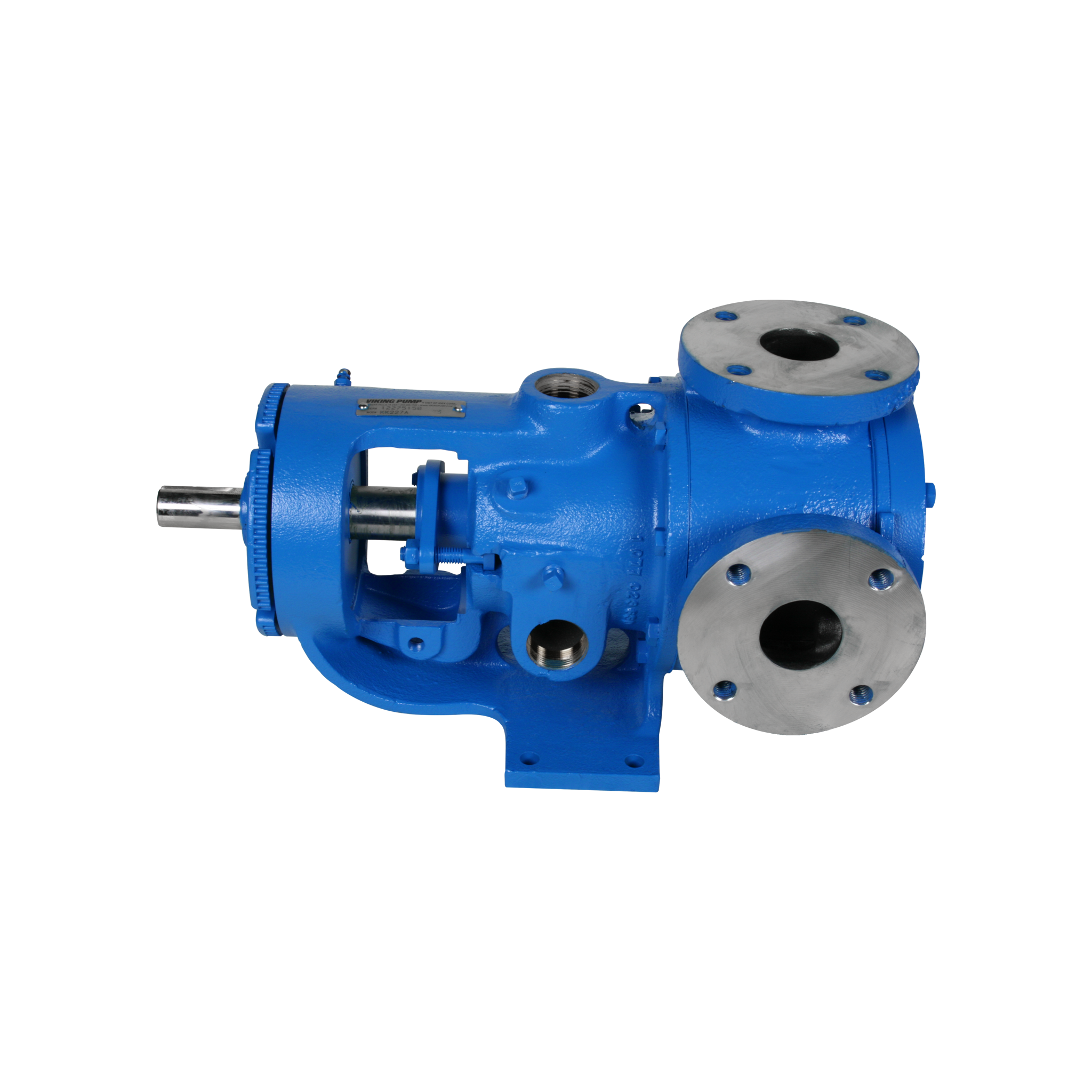

Viking Pump KK227A Model

Section

Capacity

65 GPM
15 m3/h

Viscosity

28 to 2,000,000 SSU
1 to 440,000 cSt

Pressure

113 PSI
10 BAR

Temperature

to 350F
to 175C

Options

Porting

Flanged (ASME / ANSI)

Right Angle (90°) (Rotatable Casing)

Drives

R Offset Gear Reducer Drive

P Purchased Gear Reducer Drive

V Drive | V-Belt Drive

Mounting

Foot Mount

Sealing

Packing

TSM / Catalog / Flyers / Brochures

Service Manual | 1700

Service Manual | 1700

Download

Technical Service Manuals

Catalog Section | 1000 | General Information

Catalog Section | 1000 | General Information

Download

Catalog Sections

Catalog Section | 1702 | Jacketed

Catalog Section | 1702 | Jacketed

Download

Catalog Sections

Flyer | Form 1702 | 227A / 4227A / 327A / 4327A Series

Flyer | Form 1702 | 227A / 4227A / 327A / 4327A Series

Download

Product Flyers


K-KK with Plain Head - 3" Class 125 ANSI RH	PDF

K-KK with Relief Valve - 2" Class 150 ANSI RH/LH	PDF	STEP

K-KK with Plain Head - 2" Class 150 ANSI RH/LH	PDF	STEP
