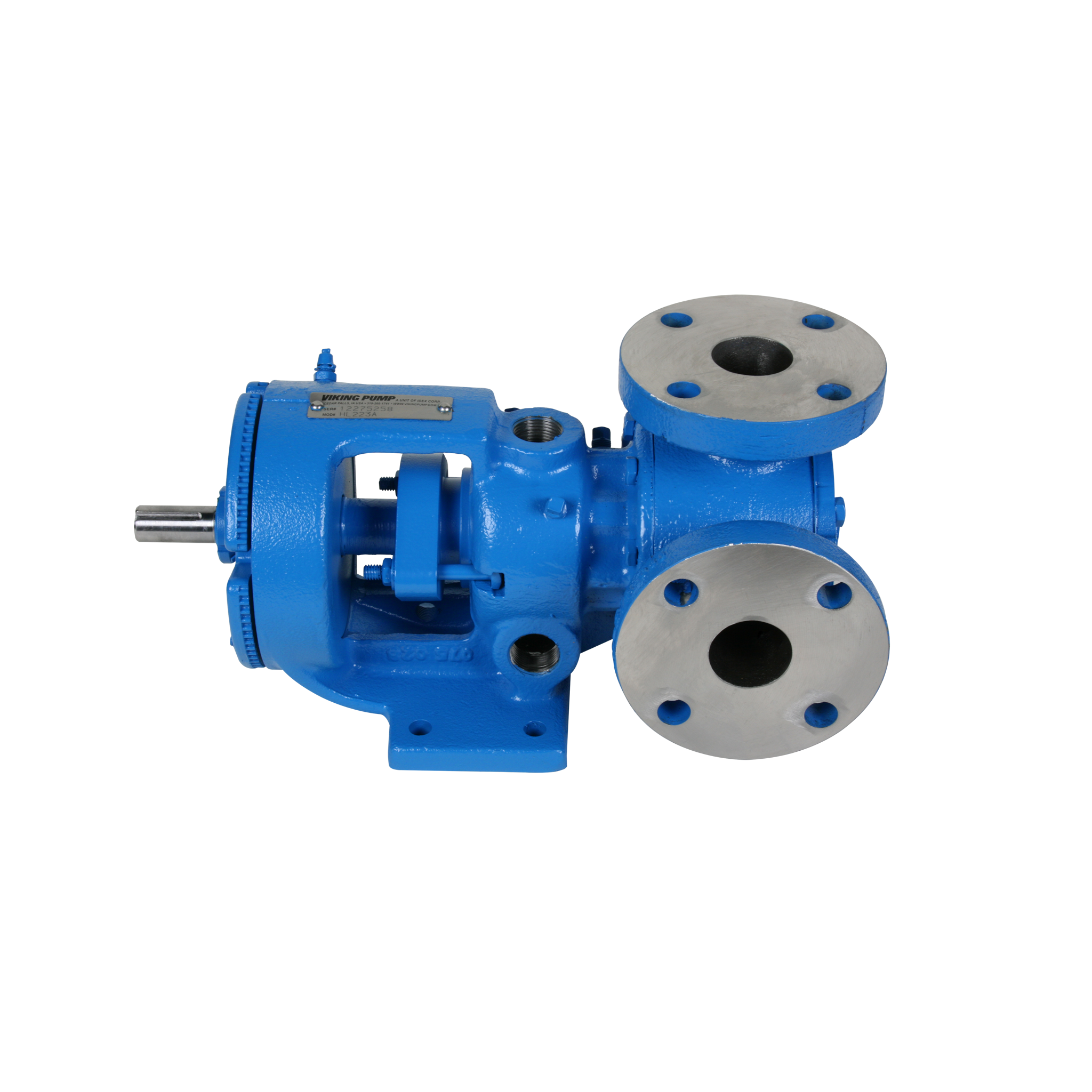

Viking Pump H223A Model

Section

Capacity

15 GPM
3.4 m3/h

Viscosity

28 to 2,000,000 SSU
1 to 440,000 cSt

Pressure

200 PSI
14 BAR

Temperature

to 450F
to 230C

Options

Porting

Flanged (ASME / ANSI)

Right Angle (90°) (Rotatable Casing)

Drives

R Offset Gear Reducer Drive

P Purchased Gear Reducer Drive

D Direct-Mounted Drive

V Drive | V-Belt Drive

Mounting

Foot Mount

Sealing

Packing

TSM / Catalog / Flyers / Brochures

Service Manual | 1300

Service Manual | 1300

Download

Technical Service Manuals

Catalog Section | 1000 | General Information

Catalog Section | 1000 | General Information

Download

Catalog Sections

Catalog Section | 1302 | Jacketed

Catalog Section | 1302 | Jacketed

Download

Catalog Sections

Flyer | Form 1302 | 223A / 4223A / 323A / 4323A Series

Flyer | Form 1302 | 223A / 4223A / 323A / 4323A Series

Download

Product Flyers


H-HL with Jacketed Head - 1.5" Class 150 ANSI RH/LH	PDF	STEP

H-HL with Relief Valve - 1.5" Class 125 ANSI RH/LH	PDF
