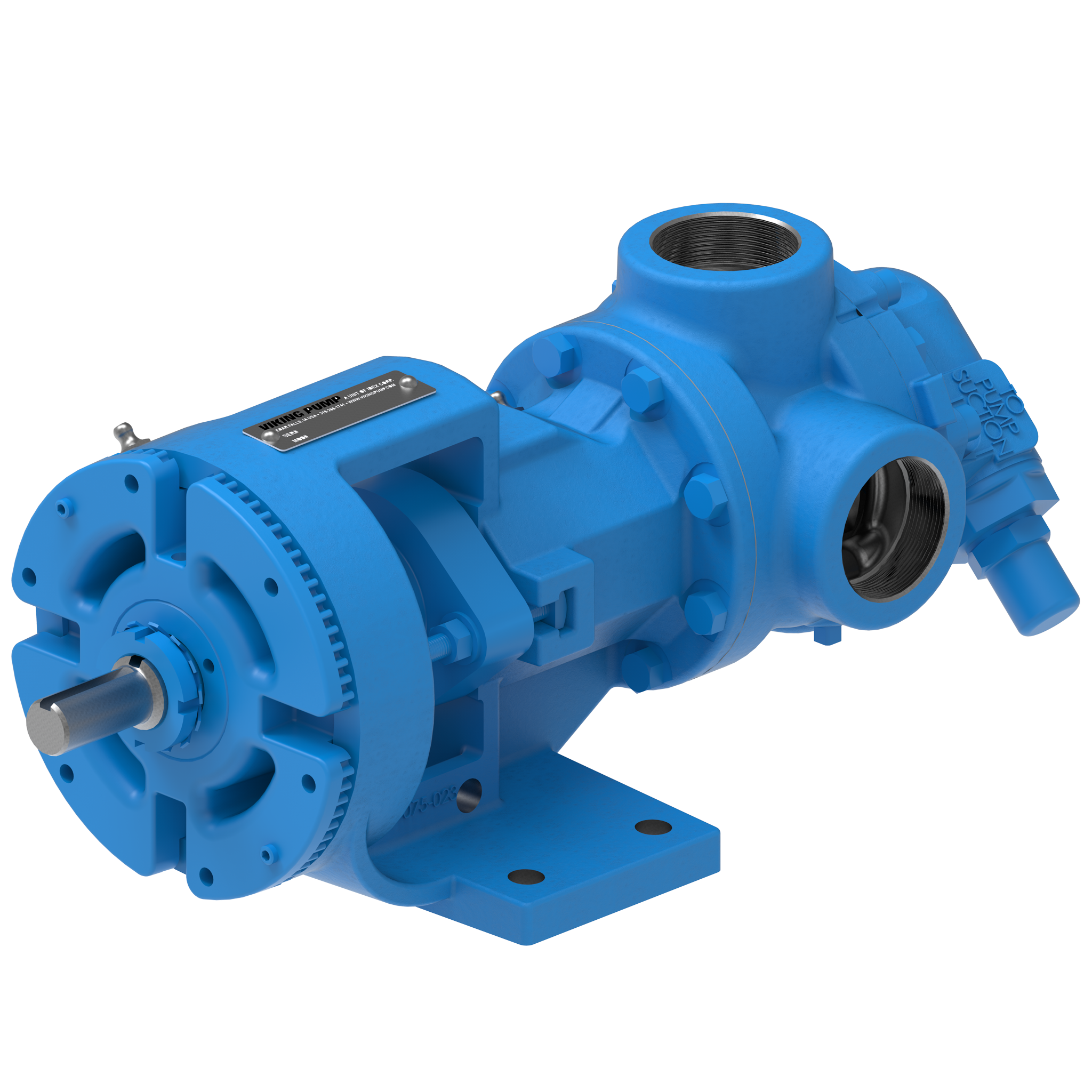

Viking Pump QS126A Model

Section

Capacity

500 GPM
114 m³/h

Viscosity

28 to 2,000,000 SSU
0.1 to 440,000 cSt

Pressure

200 PSI
14 BAR

Temperature

-60 to +650°F
-50 to +345°C

Options

Porting

Flanged

Opposite (180°)

Drives

D Direct-Mounted Drive

R Offset Gear Reducer Drive

P Purchased Gear Reducer Drive

V Drive | V-Belt Drive

Mounting

Foot Mount

Sealing

Packing

TSM / Catalog / Flyers / Brochures

Service Manual | 1600

Download

Technical Service Manuals

Catalog Section | 1601 | Non-Jacketed

Download

Catalog Sections

REPAIR RESOURCES

Exploded Diagram for Series 123A/4123A - 124A/ 4124A - 126A/4126A - 127A/4127A …

DRAWINGS


QS126A with Relief Valve - 6" Class 150 ANSI Opposite	PDF	STEP

QS126A with Relief Valve - 6" Class 150 ANSI RH	PDF	STEP

QS126A with Plain Head - 6" Class 150 ANSI Opposite	PDF	STEP

QS126A with Plain Head - 4" Class 150 ANSI RH/LH	PDF	STEP
