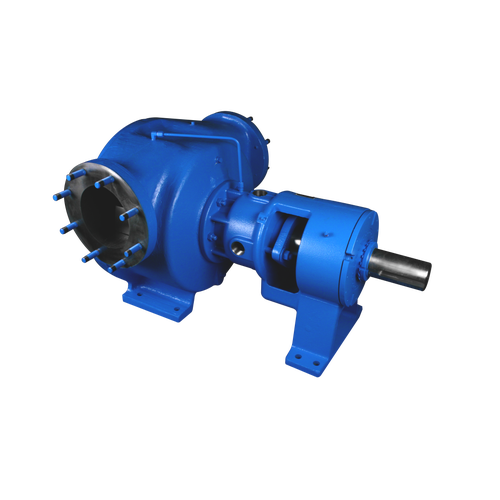

La pompa a ingranaggi interni serie 324A™ è la soluzione ideale per qualsiasi applicazione non corrosiva come adesivi, asfalto, vernici e inchiostri, ecc. È in grado di gestire portate comprese tra 500 e 1600 GPM (da 114 a 364 m³/h).
Caratteristiche e Vantaggi
- Robusto e affidabile, ma economico
- Ampia gamma di dimensioni e opzioni disponibili per adattarsi a quasi tutte le applicazioni non corrosive
- Spazi ridotti per un'elevata efficienza e un'eccellente capacità di adescamento
Capacità
500 a 1600 GPM
114 a 364 m³/h
Viscosità
28 a 2,000,000 SSU
1 a 440,000 cSt
Pressione
a 200 PSI
a 14 Bar
Temperatura
-60 a +450 °F
-50 a +230 °C
Opzioni
Attacchi
Opposti (180º)
Flangiati (ASME/ANSI)
Trasmissione
R Trasmissione con riduttore a ingranaggi sfalsati
P Trasmissione con riduttore a ingranaggi acquisito
V Drive | Azionamento con cinghia trapezoidale
Montaggio
Montaggio su piedini
Tenuta
Guarnizione
Specifiche
| Model | Standard Port Size (inches) | Nominal Pump Rating (GPM) | Nominal Pump Rating (m3/h) | Maximum RPM | Maximum Pressure (PSI) | Maximum Pressure (BAR) |
|---|---|---|---|---|---|---|
| N324A | 6 in. | 600 GPM | 136 m³/h | 350 RPM | 200 PSI | 14 BAR |
| R324A | 8 in. | 1,100 GPM | 250 m³/h | 280 GPM | 200 PSI | 14 BAR |
| RS324A | 10 in. | 1,600 GPM | 364 m³/h | 280 RPM | 125 PSI | 9 BAR |
Photos
Videos
TSM / Catalog / Flyers / Brochures
Technical Service Manuals
Catalog Sections
Product Flyers
Product Flyers
Product Flyers
Product Flyers
Product Flyers
Product Flyers
-
REPAIR RESOURCES
Quick Tip #01 - Setting End Clearance on a Viking Pump Universal Seal Pump Updated: Quick Tip #03 - Install Packing into a Viking Pump How to Use a Thrust Bearing Locknut Tool Viking Pump Universal Seal Series with Stuffing Box Component Seals Repair Kit Installation Quick Tip #02 - Install Mechanical Seal into Stuffing Box in Viking Pump Universal Seal Pump
-
DRAWINGS
N with Jacketed Head - 6" Class 125 ANSI Opposite PDF
STEP
N with Jacketed Relief Valve - 6" Class 150 ANSI Opposite PDF
STEP
N with Plain Head - 5" Class 125 ANSI LH PDF
N with Plain Head - 5" Class 125 ANSI RH PDF
N with Plain Head - 6" Class 150 ANSI Opposite PDF
STEP
N with Relief Valve - 6" Class 150 ANSI Opposite PDF
STEP
R with Jacketed Head - 8" Class 125 ANSI Opposite PDF
STEP
R with Relief Valve - 8" Class 125 ANSI Opposite PDF
STEP
RS with Jacketed Head - 10" Class 150 ANSI Opposite PDF
STEP
RS with Plain Head - 10" Class 125 ANSI Opposite PDF
STEP
