Built to Solve Biopharma’s Toughest Pumping Challenges

Built to Solve Biopharma’s Toughest Pumping Challenges

Protect shear‑sensitive product

Standard multi‑lobe rotors reduce shear and pulsation—ideal for proteins, cells, and other sensitive media.

Confident cleaning & drainability

Self‑draining cover geometry and innovative internal cusps support fast, effective cleaning and product recovery. Optional zero dead‑leg drain maximizes yield.

Seal the sterile boundary

Choose single or double mechanical seals with flush or quench and biopharma‑ready elastomers—including USP Class VI options—to match your containment strategy.

Process versatility

Handles ultra‑thin buffers to high‑viscosity media; vertical or horizontal ports and Tri‑Clamp connections fit existing skids.

Compliance & documentation

3‑A Hygienic design and CE/UKCA/ATEX compliant models, plus optional performance & material certificates to accelerate validation.

Uptime by design

Front‑loading seals can be changed in‑line. Sealed‑for‑life bearings simplify gearbox care; maintenance kits help extend service life.

Performance at a Glance

Performance at a Glance

Improved Yield

High-efficiency rotary lobe design delivers consistent flow across pressure changes, with low shear for sensitive fluids. Flow is proportional to speed, enabling precise metering with a variable speed drive.

CIP & SIP Ready

Aseptic design supports clean-in-place and steam sterilization in place, reducing downtime and ensuring compliance with strict cleaning standards.

Scalable Performance

From 10 L/min benchtop systems to 2 m³/min (120,000 L/h) full-scale production, SteriLobe® grows with your process—simplifying scale-up and validation.

Easy Maintenance

Front-loading seals can be replaced without removing the pump, minimizing downtime and cost.

CAPACITY VISCOSITY PRESSURE TEMPERATURE
Up to 753 GPM
(171 m3/h)		 Up to 200,000 cSt
(910,000 SSU)		 Up to 218 PSI
(15 BAR)		 Up to 300°F
(150°C)
VIEW PUMP SPECS

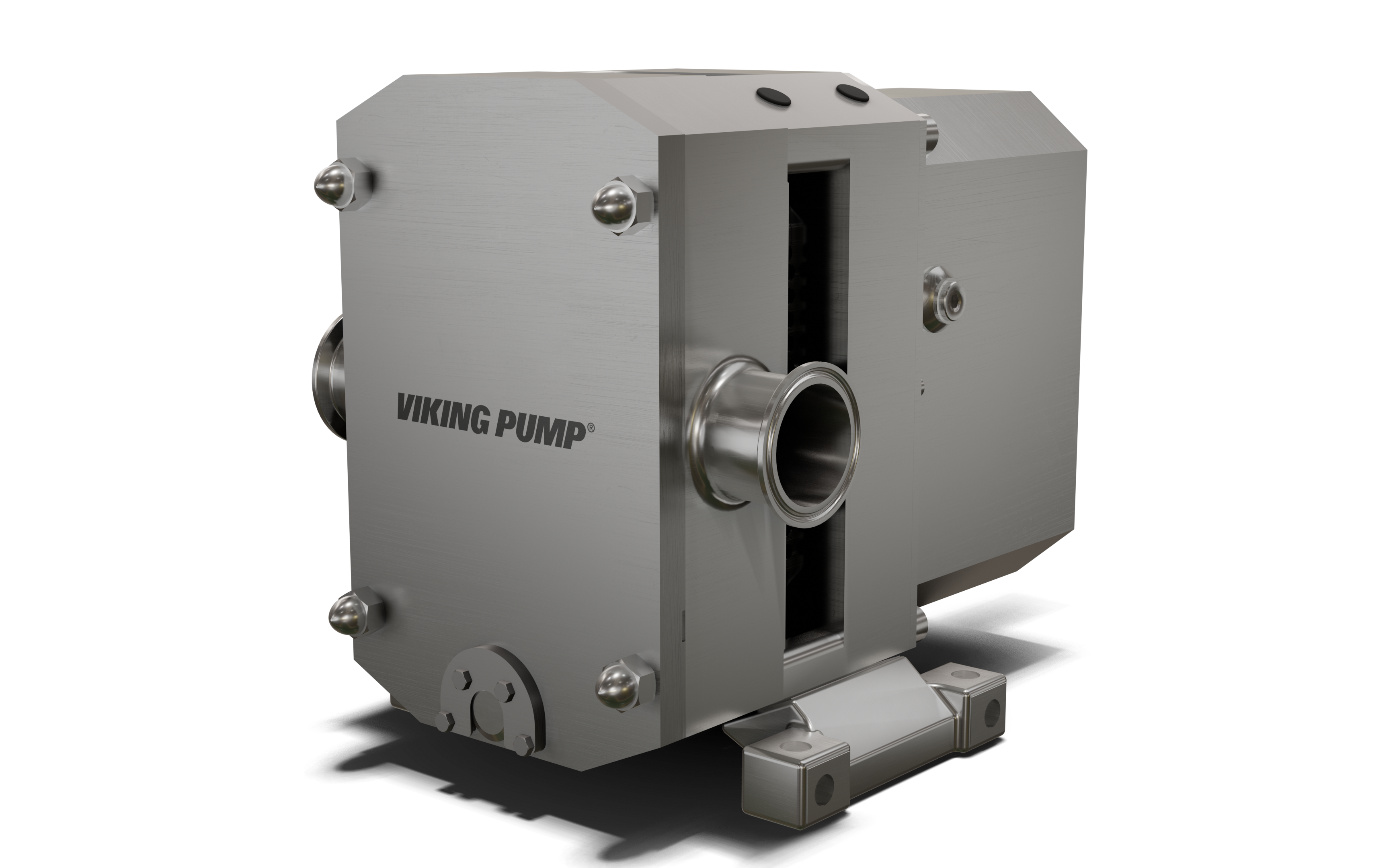

sterilobe render

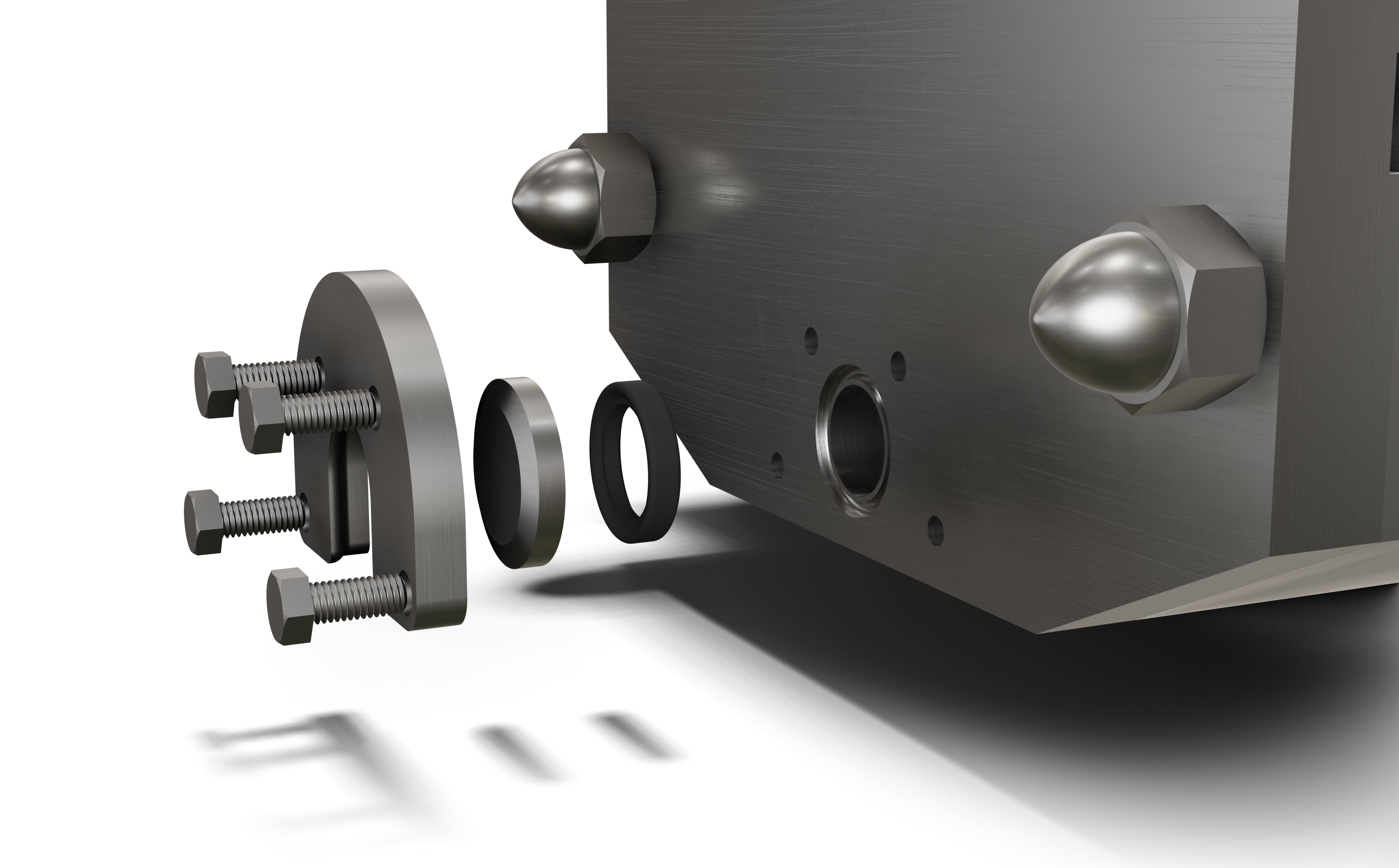

sterilobe close up drain port

Ideal for Critical Bioprocess Steps

Ideal for Critical Bioprocess Steps

TFF & Depth Filtration

Stable, low‑pulsation flow supports membrane protection and consistent flux.

Chromatography

Gentle transfer preserves product integrity during capture and polishing.

Buffer Prep & Formulation

From low‑viscosity buffers to concentrates without sacrificing control.

Virus/Sterile Filtration

Drainable design and documentation support hygienic operation and validation.

Fill & Finish

Smooth delivery helps protect delicate drug products.

Process Transfer

Reliable, efficient movement of intermediates and bulk solutions.





Materials & Finishes for Hygienic Design

Materials & Finishes for Hygienic Design

Contact materials

  • 316L stainless steel rotors, rotorcase, shafts, and front cover
  • Electropolished surfaces; interior finish to Ra 0.6 µm (24 µin) standard, 0.4 µm (16 µin) optional
  • Elastomers: EPDM (FDA) standard; options include FKM, Buna, Silicone, FFKM (USP Class VI available)
  • Optional 1.4435 low‑ferrite stainless steel

Sealing options

  • Single mechanical
  • Single mechanical with flush or quench
  • Double mechanical with flush
  • Seal faces: Carbon/Silicon Carbide (standard); Silicon Carbide/SiC optional



Engineering Tools & Documentation

  • Performance curves
  • Certificates & tests: Order performance, material, seal face, surface finish, assembly inspection, and general compliance documents.
  • Technical drawings
