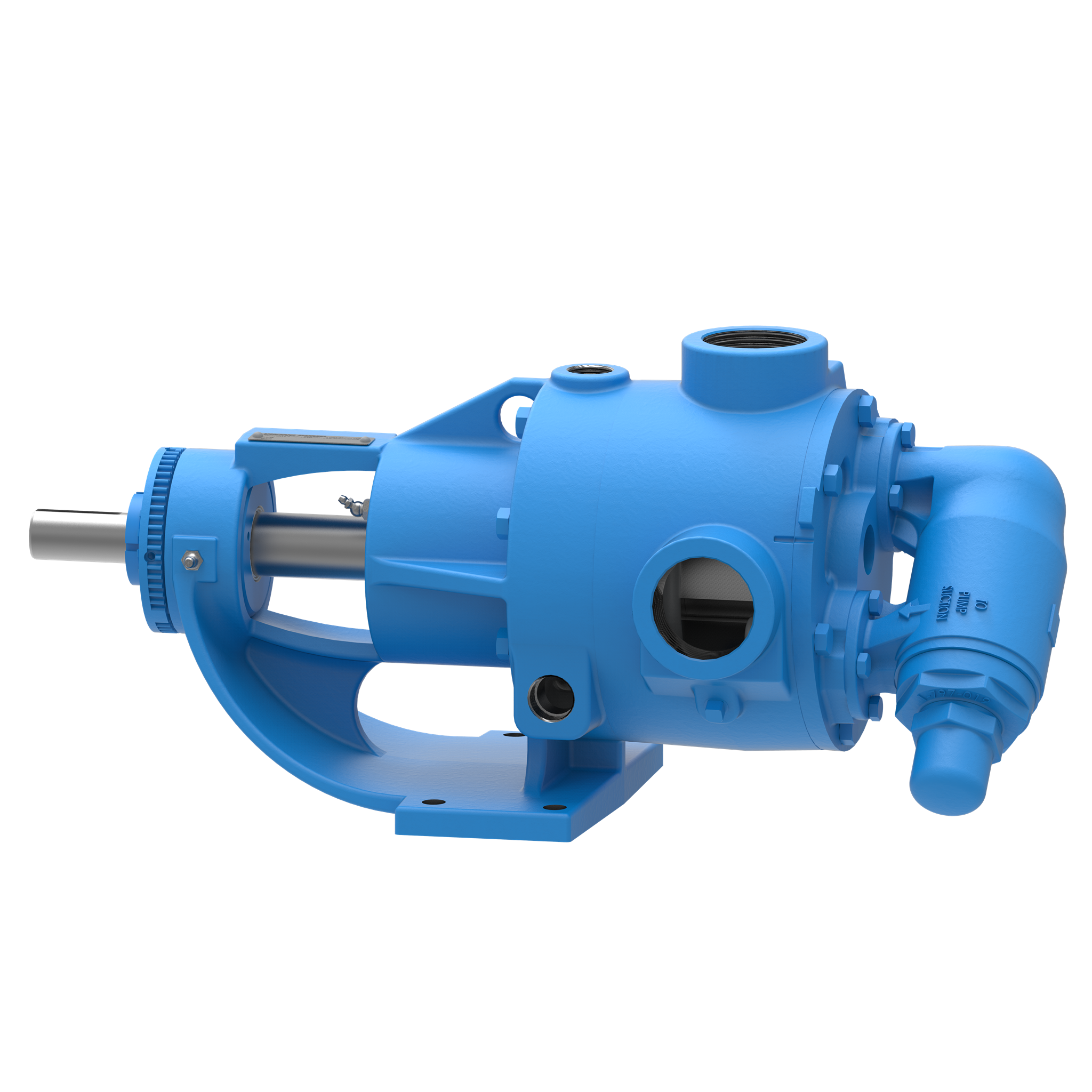

Viking Pump G4724 Model

Section

Capacity

5 GPM
1.1 m³/h

Viscosity

28 to 250,000 SSU
1 to 55,00 cSt

Pressure

400 PSI
28 BAR

Temperature

-120 to +500°F
-85 to +260°C

Options

Porting

NPT

Drives

R Offset Gear Reducer Drive

P Purchased Gear Reducer Drive

D Direct-Mounted Drive

Mounting

Foot Mount

Sealing

Mechanical Seals

TSM / Catalog / Flyers / Brochures

Service Manual | 1706

Service Manual | 1706

Download

Technical Service Manuals

Catalog Section | 1706

Catalog Section | 1706

Download

Catalog Sections

Liquid Flyer | Edible Oils

Liquid Flyer | Edible Oils

Download

Application Flyers

Liquid Flyer | Soy & Corn Oils

Liquid Flyer | Soy & Corn Oils

Download

Application Flyers

Liquid Flyer | Surfactants

Liquid Flyer | Surfactants

Download

Application Flyers

REPAIR RESOURCES

Exploded Diagram for Series 724 (packed) and 4724 (mechanical seal) - Sizes H/H…
Exploded Diagram for Series 724 (packed) and 4724 (mechanical seal) - Sizes F/F…


G4724 with Relief Valve - 1" NPT Opposite	PDF	STEP

G4724 with Plain Head - 1" NPT Opposite	PDF	STEP
