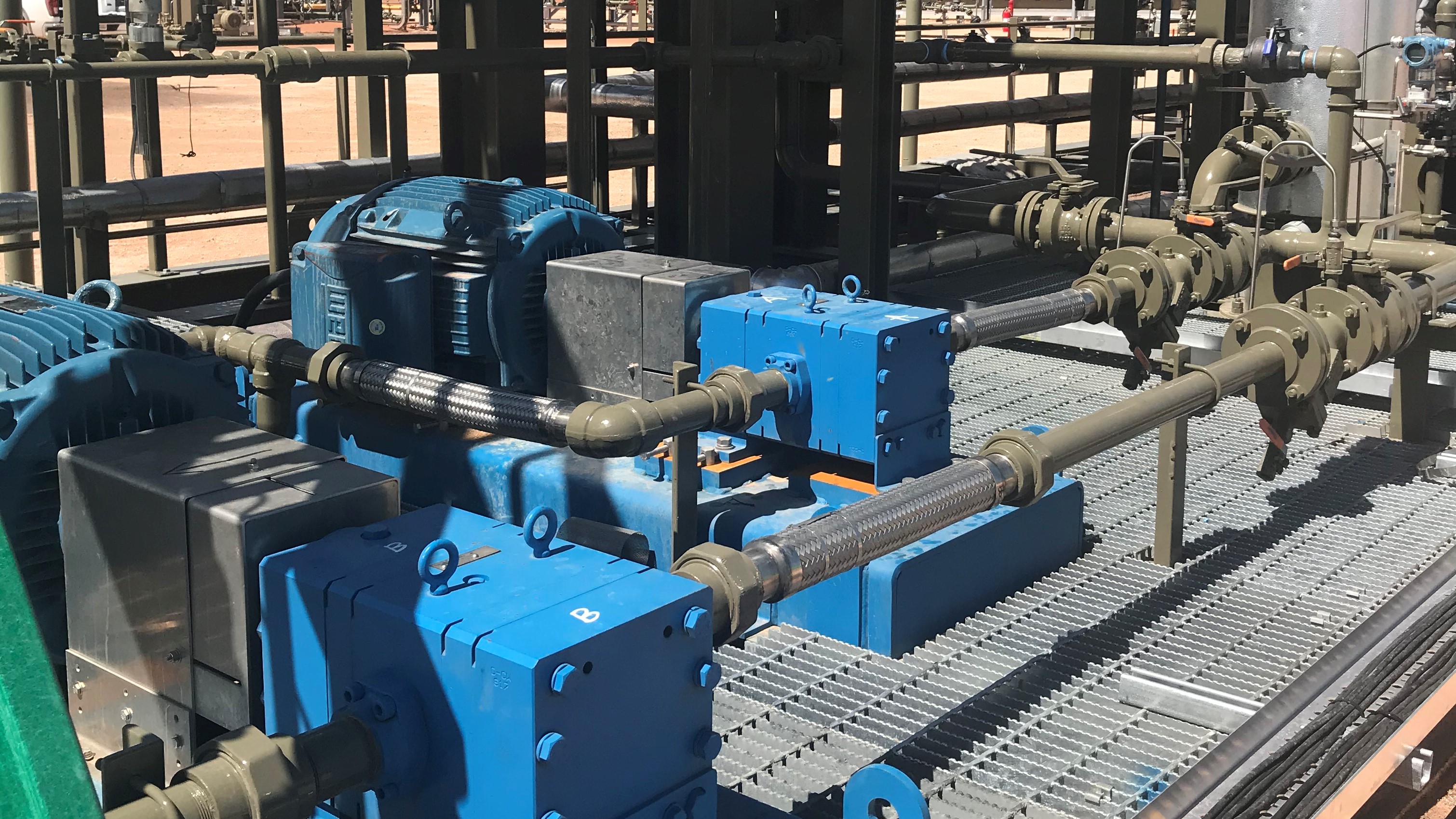

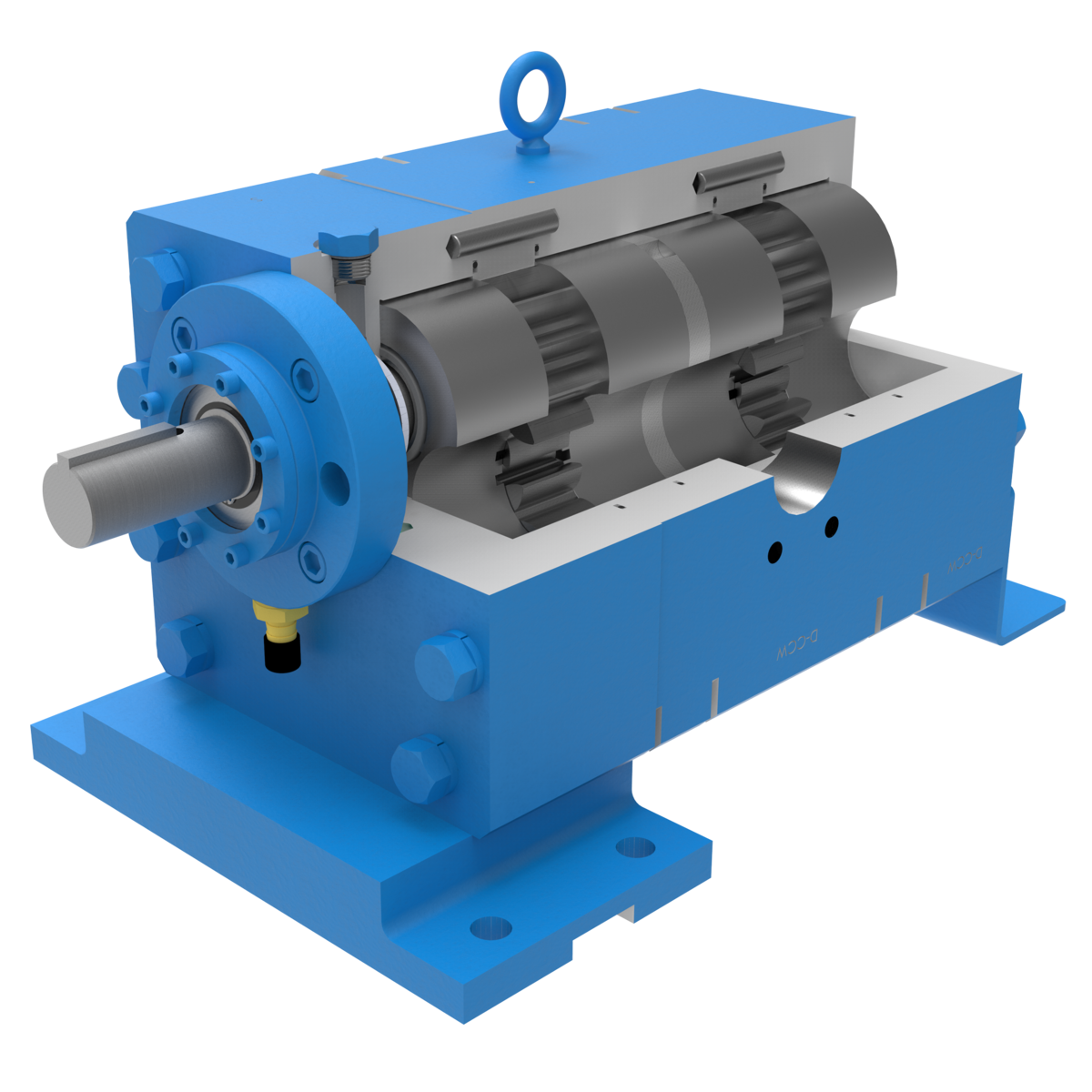

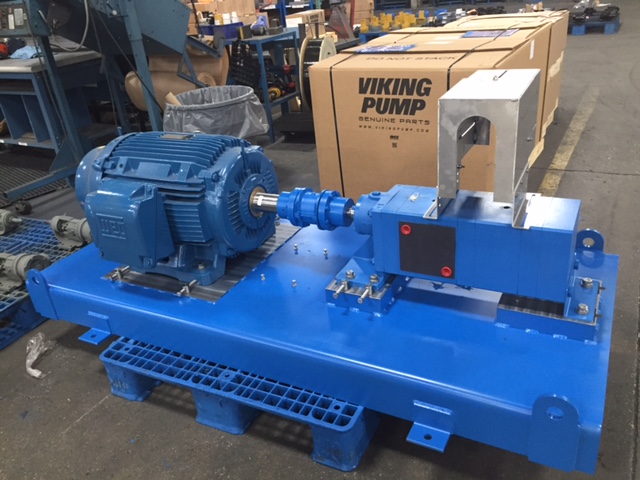

GP 410/414 Pipeline Injection Pump

Downloads

Series GP-410, GP-414

Durable Construction

  • Heat treated shaft and spur gears provide reliable service
  • Internal surfaces are hardened to increase wear resistance

Multiple Sealing Options

  • Type 1 component seal standard
  • Cartridge seal and balanced seal options available
  • Back pull-out seal design allows seal changes without disturbing piping or requiring unit realignment

No Ball or Roller Element Bearings

  • Heavy duty bushings support shafts on either side of the gears
  • DU bushings to ensure long service life

Modular Porting Design

  • Standard 180⁰ ports with weld neck adapters to accommodate the flange of your choice
  • Port design allows for multiple interchangeable flange options
  • Common Port Location (CPL) feature allows for installation of lower flowrate pumps when well production decreases without welding or piping modifications

Compact Footprint

  • 7’ unit length on largest pump and motor assembly
  • Motor speed operation eliminates the need for gear reducers or belt drives
  • Units include small, rigid formed steel baseplate complete with spacer coupling and coupling guard
  • Features

    capacity

    210 GPM

    pressure

    1500 PSI

    viscosity

    2500 SSU

    temperature

    -40 to +350 °F
  • Specs
    GP-410 & GP-414 Models (Ductile Iron) Ports* (Inch) Nominal Flow @ 750 PSI (1775 rpm) on 4 cP Viscosity Nominal Flow @ 1500 PSI (1775 rpm) on 4 cPs Viscosity Max Continuous Pressure (PSI) Max Recommended Temperature (°F) Approximate Shipping Weight (Pump Only) (lbs)
    GP-41013 2" SAE 22 GPM / 32 BPH / 760 BPD 20 GPM / 29 BPH / 683 BPD 1500 350 61
    GP-41026 2" SAE 44 GPM / 63 BPH / 1520 BPD 40 GPM / 57 BPH / 1366 BPD 1500 350 85
    GP-41415 2" SAE 46 GPM / 66 BPH / 1587 BPD 39.7 GPM / 57 BPH / 1362 BPD 1500 350 170
    GP-41420 2" SAE 60 GPM / 85 BPH / 2045 BPD - 750 350 170
    GP-41430 2" SAE 94 GPM / 134 BPH / 3208 BPD 81 GPM / 116 BPH / 2779 BPD 1500 350 270
    GP-41440 3" SAE 120 GPM / 172 BPH / 4138 BPD - 750 350 284
    GP-41445 3" SAE 141 GPM / 201 BPH / 4833 BPD 122 GPM / 175 BPH / 4202 BPD 1500 350 395
    GP-41455 3" SAE 168 GPM / 240 BPH / 5760 BPD - 750 350 403
    GP-41460 4" SAE 182 GPM / 260 BPH / 6230 BPD - 750 350 447

    *2” and 3” SAE ports use J518 Code 61 SAE flange ports. 4” SAE port uses 3000 Series square flange.

    Note: GP-410 & GP-414 Series motor speed - 1775 RPM

capacity

210 GPM

pressure

1500 PSI

viscosity

2500 SSU

temperature

-40 to +350 °F
GP-410 & GP-414 Models (Ductile Iron) Ports* (Inch) Nominal Flow @ 750 PSI (1775 rpm) on 4 cP Viscosity Nominal Flow @ 1500 PSI (1775 rpm) on 4 cPs Viscosity Max Continuous Pressure (PSI) Max Recommended Temperature (°F) Approximate Shipping Weight (Pump Only) (lbs)
GP-41013 2" SAE 22 GPM / 32 BPH / 760 BPD 20 GPM / 29 BPH / 683 BPD 1500 350 61
GP-41026 2" SAE 44 GPM / 63 BPH / 1520 BPD 40 GPM / 57 BPH / 1366 BPD 1500 350 85
GP-41415 2" SAE 46 GPM / 66 BPH / 1587 BPD 39.7 GPM / 57 BPH / 1362 BPD 1500 350 170
GP-41420 2" SAE 60 GPM / 85 BPH / 2045 BPD - 750 350 170
GP-41430 2" SAE 94 GPM / 134 BPH / 3208 BPD 81 GPM / 116 BPH / 2779 BPD 1500 350 270
GP-41440 3" SAE 120 GPM / 172 BPH / 4138 BPD - 750 350 284
GP-41445 3" SAE 141 GPM / 201 BPH / 4833 BPD 122 GPM / 175 BPH / 4202 BPD 1500 350 395
GP-41455 3" SAE 168 GPM / 240 BPH / 5760 BPD - 750 350 403
GP-41460 4" SAE 182 GPM / 260 BPH / 6230 BPD - 750 350 447

*2” and 3” SAE ports use J518 Code 61 SAE flange ports. 4” SAE port uses 3000 Series square flange.

Note: GP-410 & GP-414 Series motor speed - 1775 RPM

GP 425 Pipeline Injection Pump

Downloads

Series GP-425

Multiple Sealing Options

  • Single cartridge mechanical seal standard
  • Double and tandem cartridge mechanical seals available
  • Capable of accepting an API 682 seal

Durable Construction

  • Heat treated shaft and spur gears provide reliable service
  • Internal surfaces are Vitek hardened to increase wear resistance

Modular Port Design

  • 6”, 180⁰ 4 bolt ports standard
  • Weldneck port adapter design allows for multiple interchangeable flange options
  • Common Port Location (CPL) feature allows for installation of lower flow rate pumps when well production decreases without welding or piping modifications

Compact Footprint

  • External gear design is significantly more compact than screw, reciprocating, and centrifugal technologies
  • Direct drive, motor-speed operation eliminates the need for gearboxes or belt drives
  • Standard inverter duty rated motors

Reduced Maintenance

  • Back pull-out seal design and spacer coupling eliminate the need to disturb piping or perform alignments during seal changes
  • Rigid structural steel base with milled mounting pads and jacking bolts for ease of field alignment
  • No pulsation dampeners, gear reducers, belt drives, or additional equipment to service and maintain
  • Features

    capacity

    610 GPM

    pressure

    1500 PSI

    viscosity

    550 cP

    0 to +350 °F
  • Specs
    GP-425 Models (Ductile Iron) Ports* (Inch) Nominal Flow @ 750 PSI (1190 rpm) on 4 cP Viscosity Nominal Flow @ 1500 PSI (1190 rpm) on 4 cPs Viscosity Max Continuous Pressure (PSI) Max Recommended Temperature (°F) Approximate Shipping Weight (Pump Only) (lbs)
    GP-42525 6" 175 GPM / 249 BPH / 5948 BPD 155 GPM / 221 BPH / 5305 BPD 1500 350 1370
    GP-42550 6" 344 GPM / 491 BPH / 11794 BPD 305 GPM / 435 BPH / 10457 BPD 1500 350 1815
    GP-42575 6" 520 GPM / 744 BPH / 17843 BPD 464 GPM / 663 BPH / 15915 BPD 1500 350 2500

    *6" Port uses 3000 Series Square Flange
    Note: GP-425 Series motor speed - 1190 RPM

capacity

610 GPM

pressure

1500 PSI

viscosity

550 cP

0 to +350 °F
GP-425 Models (Ductile Iron) Ports* (Inch) Nominal Flow @ 750 PSI (1190 rpm) on 4 cP Viscosity Nominal Flow @ 1500 PSI (1190 rpm) on 4 cPs Viscosity Max Continuous Pressure (PSI) Max Recommended Temperature (°F) Approximate Shipping Weight (Pump Only) (lbs)
GP-42525 6" 175 GPM / 249 BPH / 5948 BPD 155 GPM / 221 BPH / 5305 BPD 1500 350 1370
GP-42550 6" 344 GPM / 491 BPH / 11794 BPD 305 GPM / 435 BPH / 10457 BPD 1500 350 1815
GP-42575 6" 520 GPM / 744 BPH / 17843 BPD 464 GPM / 663 BPH / 15915 BPD 1500 350 2500

*6" Port uses 3000 Series Square Flange
Note: GP-425 Series motor speed - 1190 RPM

Sample / Sump Pump

Downloads

Series SG-05

  • Needle bearings provide high pressure capabilities
  • Close-coupled motor mount or foot bracket options to match space or motor requirements
  • Available with or without internal relief valve for over pressure protection on the pump and system

Options include:

  • Sealing / Coupling:
    • Lip Seal, Component Mechanical Seal, Cartridge Mechanical Seal, Mag Drive
  • Mounting:
    • Foot Mount, Motor Mount for IEC & NEMA Motors (Close-Coupled), Vertical In-Line
  • Features

    capacity

    190 GPM
    45 m3/h

    viscosity

    1,000,000 SSU
    250,000 cST

    pressure

    500 PSI
    34 Bar

    temperature

    -40 to +450 °F
    -40 to +230 °C
  • Specs
    Model Number Port Size - Inches Port type Nominal Capacity at Maximum Speed - GPM Maximum Speed - RPM Maximum Differential Pressure - PSI Maximum Temperature F
    SG-0550 0.5 NPT 2 1750 500 225
    SG-0570 0.5 NPT 2.8 1750 500 225
    SG-0510 0.5 NPT 4 1750 400 225
    SG-0514 0.75 NPT 5.6 1750 200 225

capacity

190 GPM
45 m3/h

viscosity

1,000,000 SSU
250,000 cST

pressure

500 PSI
34 Bar

temperature

-40 to +450 °F
-40 to +230 °C
Model Number Port Size - Inches Port type Nominal Capacity at Maximum Speed - GPM Maximum Speed - RPM Maximum Differential Pressure - PSI Maximum Temperature F
SG-0550 0.5 NPT 2 1750 500 225
SG-0570 0.5 NPT 2.8 1750 500 225
SG-0510 0.5 NPT 4 1750 400 225
SG-0514 0.75 NPT 5.6 1750 200 225

Sample / Sump Pump

Downloads

Series: 75, 475

  • NEMA C-face mount for easy installation and a small footprint
  • Simplified rotor retention system, economical for medium duty applications

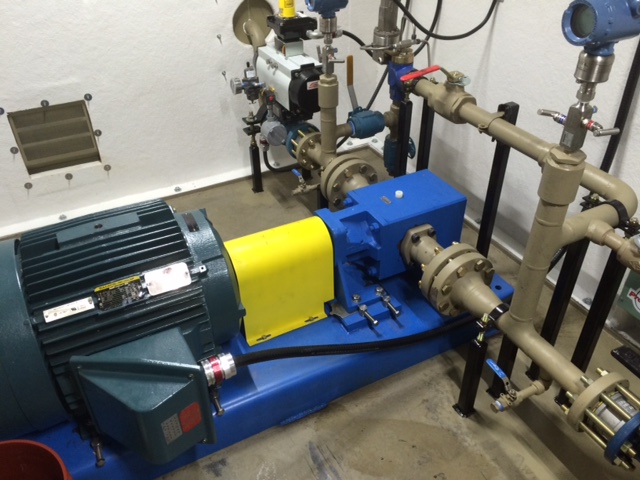

  • Proven successful on sample and pump applications for LACT duty service
  • Available with or without internal relief valve for over pressure protection on the pump and system

Options include:

  • Sealing
    • Component Mechanical Seal
    • Lip Seal
  • Features

    capacity

    30 GPM
    7 m3/h

    viscosity

    7,500 SSU
    1,650 cST

    pressure

    250 PSI
    17 Bar

    temperature

    -60 to +350 °F
    -50 to +180 °C
  • Specs
    Model Number Port Size - Inches Port type Nominal Capacity at Maximum Speed - GPM Maximum Speed - RPM Maximum Differential Pressure - PSI Maximum Temperature F
    G475 1 NPT 7 1750 100 225
    GG475 1 NPT 10 1750 100 225
    H475 1.5 NPT 15 1750 100 225
    HJ475 1.5 NPT 20 1750 100 225
    HL475 1.5 NPT 30 1750 100 225

capacity

30 GPM
7 m3/h

viscosity

7,500 SSU
1,650 cST

pressure

250 PSI
17 Bar

temperature

-60 to +350 °F
-50 to +180 °C
Model Number Port Size - Inches Port type Nominal Capacity at Maximum Speed - GPM Maximum Speed - RPM Maximum Differential Pressure - PSI Maximum Temperature F
G475 1 NPT 7 1750 100 225
GG475 1 NPT 10 1750 100 225
H475 1.5 NPT 15 1750 100 225
HJ475 1.5 NPT 20 1750 100 225
HL475 1.5 NPT 30 1750 100 225

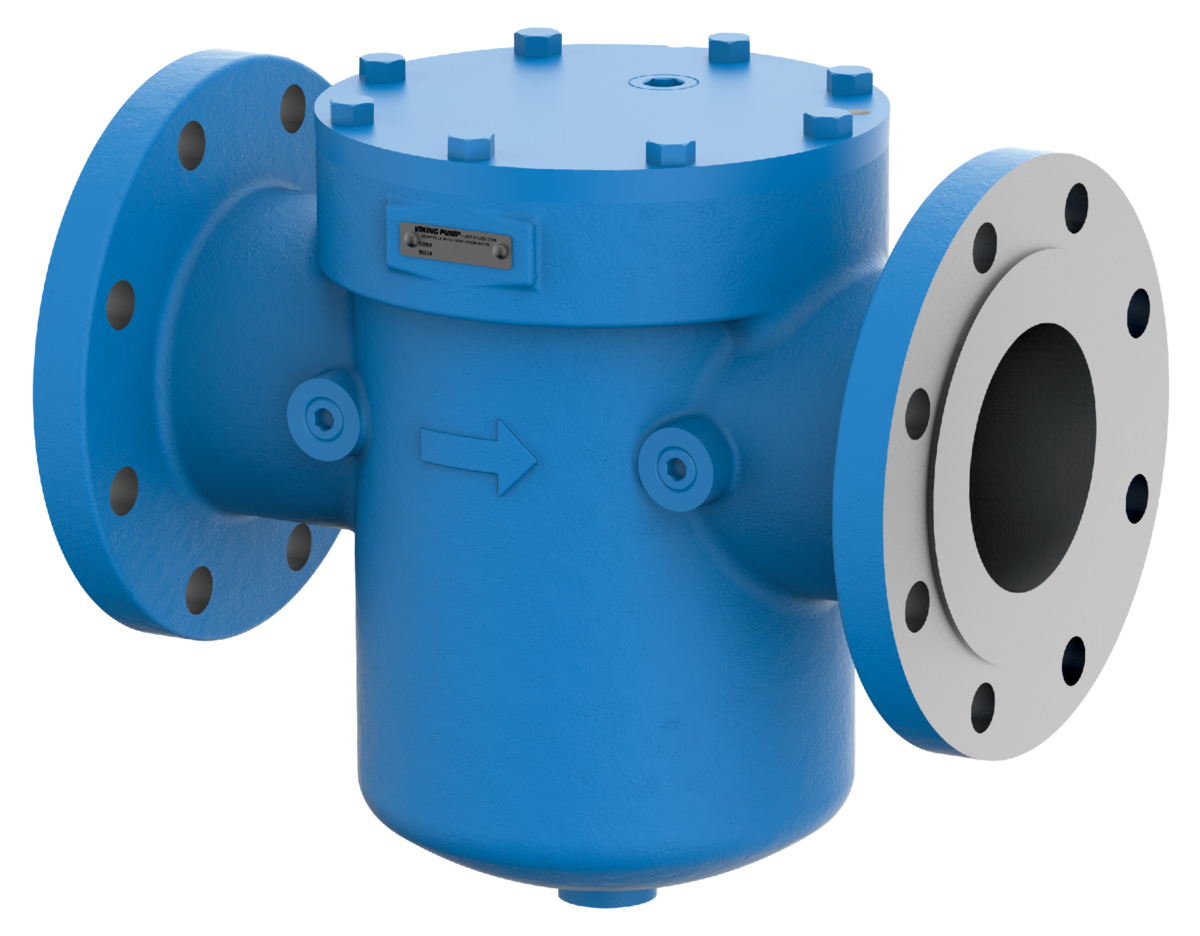

Bolted Lid Strainers

Downloads

Features & Benefits

  • Strainer bodies available in ductile iron
  • Lid vent, pressure differential gauge ports, and bottom drain are all standard
  • Stainless steel baskets with 3/16” perforation holes standard (no mesh)
  • Basket lining available in 10, 20, 40, 60, 80 or 100 mesh
  • Baskets provide maximum hoop strength to prevent distortion or basket damage
  • Ductile iron can be used for steel requirements in chemical, petrochemical and pharmaceutical industries

Viking Quality Construction

  • High-quality, easy-to-clean simplex strainers
  • Designed for chemical, petrochemical and most general fluid-flow applications
  • Raised face flanges available for 2, 3 & 4 inch piping
  • SS basket and screen are available in no mesh, 10, 20, 40, 60, 80 or 100 mesh
  • Nominal capacities range from 100 to 400 GPM
  • Pressures up to 640 PSI
  • Strainer bodies and lids are available in ductile iron

Low Pressure Drop

Viking Bolted-Lid Strainers are designed for minimal pressure drop through the unit. Pressure drop is minimized by the inclined position of the strainer basket adjacent to the porting. This provides smooth flow patterns not found in conventional basket type strainers.

  • Specs
    Model Number Port Size - Inches Port Type Nominal Capacity Suction Rating - GPM Rated System Pressure - PSI Maximum Temperature F
    F-1020-RDUC 2 Class 150 RF 100 250 350
    F-1020-HDUC 2 Class 300 RF 100 640 350
    F-1030-RDUC 3 Class 150 RF 200 250 350
    F-1030-HDUC 3 Class 300 RF 200 640 350
    F-1040-RDUC 4 Class 150 RF 300 250 350
    F-1040-HDUC 4 Class 300 RF 300 640 350
Model Number Port Size - Inches Port Type Nominal Capacity Suction Rating - GPM Rated System Pressure - PSI Maximum Temperature F
F-1020-RDUC 2 Class 150 RF 100 250 350
F-1020-HDUC 2 Class 300 RF 100 640 350
F-1030-RDUC 3 Class 150 RF 200 250 350
F-1030-HDUC 3 Class 300 RF 200 640 350
F-1040-RDUC 4 Class 150 RF 300 250 350
F-1040-HDUC 4 Class 300 RF 300 640 350

Transload Pump

Downloads
  • Heavy duty antifriction bearing shaft support for higher pressure and extended pump life
  • Motor speed operation eliminates speed reduction equipment on thinner liquids
  • Pressure lubrication system automatically lubricates the idler bushing, increasing pump life
  • Space-saving mounting configurations available to better match your installation needs:
    • Foot Mount
    • Motor Mount (Close-Coupled NEMA and IEC)
    • Vertical Inline Mount

Options Include:

  • Sealing / Coupling:
    • Component Mechanical Seal
  • Porting:
    • Opposite (180°), NPT, Flanged (ANSI or DIN)
  • Mounting:
    • Foot Mount, Motor Mount (Close-Coupled), Vertical or Horizontal Inline Mount
  • Features

    capacity

    580 GPM
    132 m3/h

    pressure

    250 PSI
    17 Bar

    viscosity

    25,000 SSU
    5,500 cST

    temperature

    -40 to +350 °F
    -40 to +350 °C
  • Specs
    Model Port Size Port Type 60 Hz RPM 60 Hz GPM Max Differential PSI Max Hydrostatic PSI Max Temperature (F)
    KE4195 4 Flange 1750 150 150 300 225
    KKE4195 4 Flange 1750 205 150 300 225
    LQE4195 4 Flange 1150 235 150 300 225
    LSE4195 4 Flange 1150 350 150 300 225
    Q4195 6 Flange 640 390 150 300 225
    QS4195 6 Flange 640 580 150 300 225

capacity

580 GPM
132 m3/h

pressure

250 PSI
17 Bar

viscosity

25,000 SSU
5,500 cST

temperature

-40 to +350 °F
-40 to +350 °C
Model Port Size Port Type 60 Hz RPM 60 Hz GPM Max Differential PSI Max Hydrostatic PSI Max Temperature (F)
KE4195 4 Flange 1750 150 150 300 225
KKE4195 4 Flange 1750 205 150 300 225
LQE4195 4 Flange 1150 235 150 300 225
LSE4195 4 Flange 1150 350 150 300 225
Q4195 6 Flange 640 390 150 300 225
QS4195 6 Flange 640 580 150 300 225

Drawings

Pump Drawings

PUMP MODEL FLANGE CONNECTIONS
GP-41013 2" SAE 4-Bolt Flanges
GP-41013 2" SAE Butt Flanges
GP-41026 2" SAE 4-Bolt Flanges
GP-41026 2" SAE Butt Flanges
GP-41415 2" SAE 4-Bolt Flanges
GP-41415 2" SAE Butt Flanges
GP-41420 2" SAE 4-Bolt Flanges
GP-41420 2" SAE Butt Weld Flanges
GP-41430 2" SAE 4-Bolt Flanges
GP-41430 2" SAE Butt Weld Flanges
GP-41440 3" SAE 4-Bolt Flanges
GP-41440 3" SAE Butt Weld Flanges
GP-41455 3" SAE 4-Bolt Flanges
GP-41455 3" SAE Butt Weld Flanges
GP-41460 4" 3000 Series SQ Flanges
GP-41460 4" 3000 Series SQ Butt Weld Flanges

Unit Drawings

PUMP MODEL FLANGE CONNECTIONS
GP-41013 2" SAE Butt Weld Flanges, 213T-215T Motor Frame
GP-41013 2" SAE Butt Weld Flanges, 254T-256T Motor Frame
GP-41026 2" SAE Butt Weld Flanges, 213T-215T Motor Frame
GP-41026 2" SAE Butt Weld Flanges, 254T-256T Motor Frame
GP-41026 2" SAE Butt Weld Flanges, 284T-286T Motor Frame
GP-41415 2" SAE Butt Weld Flanges, 254T-256T Motor Frame
GP-41415 2" SAE Butt Weld Flanges, 284T-286T Motor Frame
GP-41420 2" SAE Butt Weld Flanges, 284T-286T Motor Frame
GP-41420 2" SAE Butt Weld Flanges, 324T-326T Motor Frame
GP-41430 2" SAE Butt Weld Flanges, 254T-256T Motor Frame
GP-41430 2" SAE Butt Weld Flanges, 284T-286T Motor Frame
GP-41430 2" SAE Butt Weld Flanges, 324T-326T Motor Frame
GP-41430 2" SAE Butt Weld Flanges, 364T-365T Motor Frame
GP-41440 3" SAE Butt Weld Flanges, 324T-326T Motor Frame
GP-41440 3" SAE Butt Weld Flanges, 364T-365T Motor Frame
GP-41455 3" SAE Butt Weld Flanges, 324T-326T Motor Frame
GP-41455 3" SAE Butt Weld Flanges, 364T-365T Motor Frame
GP-41460 4" 3000 SERIES SQ Butt Weld Flanges, 324T-326T Motor Frame
GP-41460 4" 3000 SERIES SQ Butt Weld Flanges, 364T-365T Motor Frame
GP-41460 4" 3000 SERIES SQ Butt Weld Flanges, 404T-405T Motor Frame

Speak to an Expert

Ben Leonard

Ben Leonard

Pipeline Injection Pump Specialists

Mobile Phone: 618-340-3062
Office Phone: 618-416-5830

Doug Carlisle

Doug Carlisle

Pipeline Injection Pump Specialists

Mobile Phone: 303-475-6997
Office Phone: 720-920-9627

Austin Harriman

Austin Harriman

Business Development Manger Upstream & Midstream Oil

Mobile Phone: 210-850-0187

The Viking Pump Advantage

Viking Advantage

Viking Pump is the Global Leader in Positive Displacement Pumping Solutions, from solving transfer challenges for Standard Oil during the depression in the 1920's, to today, where Viking Pumps are used in almost every process where oil or oil derivatives are found. With the advancements in the unconventional oil exploration and production, Viking Pump has created a series of products tailored for the upstream and midstream oil fields and specifically for LACT (Lease Automatic Custody Transfer) pipeline injection service.

Understanding your specific applications and needs is priority number one, and any of our pump experts have the knowledge and experience to make pump recommendations and selections.  We are also driven to understand the complete process where our pumps will be placed.  Viking Pump has been a premier pump of choice in all midstream applications on or around the Pipeline Injection unit based on our reliability, durability, support, and end user value with all of the products we offer.

Viking Pump has pushed the envelope of innovation and capabilities to meet and exceed customer needs and expectations in the midstream market and when you place a Viking Pump in your production field, you can count on the best quality and reliability backed by our experience and expertise to keep your fluids flowing.



Viking Advantage

The Viking Pump Advantage

  • Complete line of Pipeline Injection pumps and strainers
  • Pipeline Injection pumps expertly selected to operate reliably
  • Common Port Location (CPL) on booster pumps allows smaller pumps to be retrofitted after IP without changing motor, baseplate, or centerline heights of piping. *special order on some models*
  • Easy maintenance / zero pipe disruption with back pullout design on charge and booster pumps
  • Every injection pump is performance tested on the Viking Pump state of the art automated test stand
  • Backed by the Viking Pump 12 month warranty on workmanship and part defects
  • Thousands of pump installations across multiple geographic shale plays, varying viscosities, and pipeline pressures up to 1,500PSI

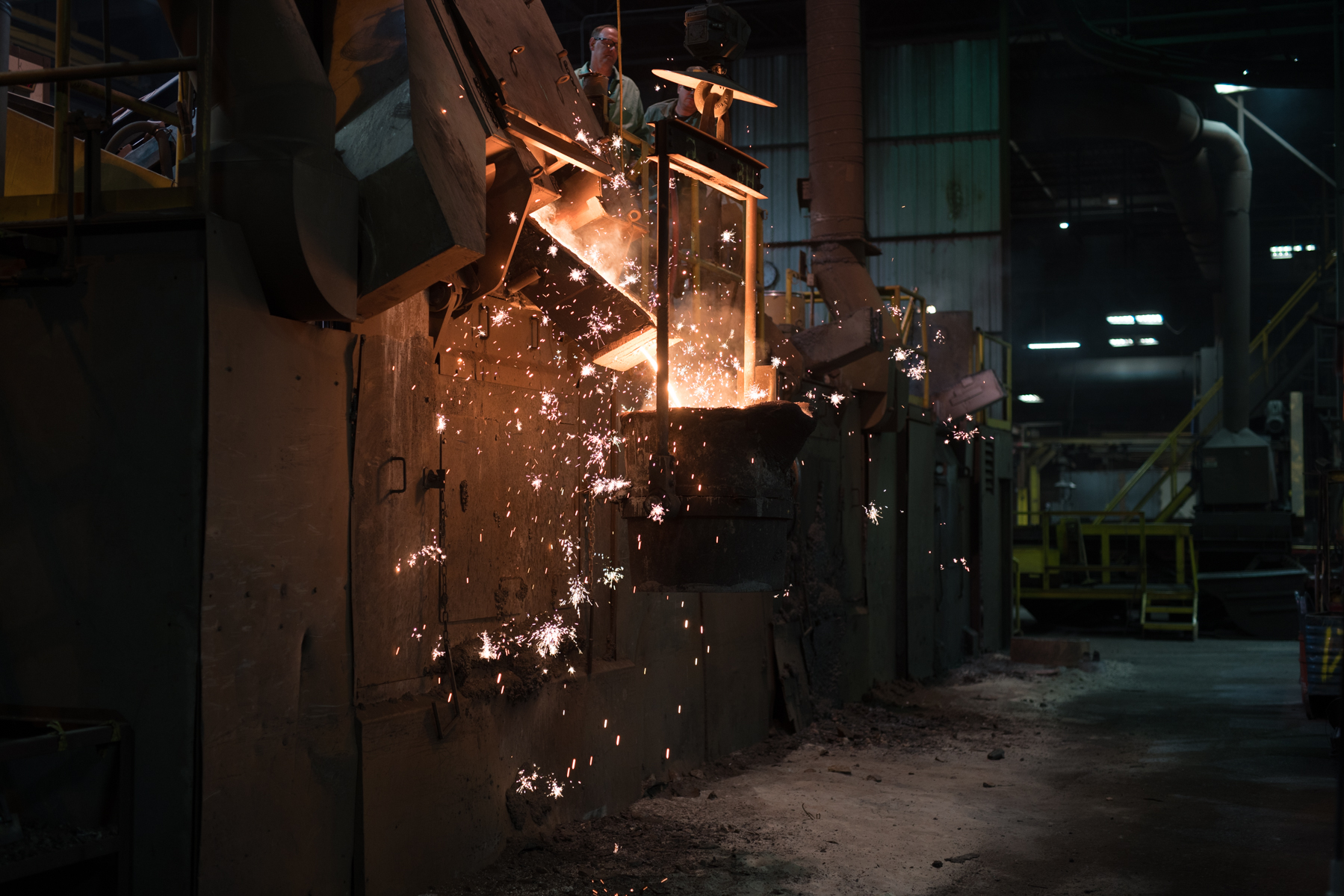

  • US Based, vertically integrated manufacturing  facilities all located in Cedar Falls, IA
