4127C Series™ Pumps for Adhesives: Engineered for the Extreme
When it comes to pumping adhesives, not all equipment is built to handle the heat, the stickiness, or the corrosive nature of the job. That’s where Viking Pump’s 4127C Series™ stands out—designed specifically for the most challenging adhesive applications such as:
- Rubber-Based Adhesives – Ultra-high viscosity? No problem. Steel-fitted construction and larger port options ensure smooth, reliable flow.
- Starch Adhesives – Acidic and corrosive blends are no match for stainless steel components and specialty shaft materials.
- Phenolic Resins & Abrasives – Built to resist wear with enhanced bushings, idler pins, and abrasive liquid seals.
- Hot Melt Adhesives – Optional steam jacketing keeps product fluid and prevents solidification during transfer.
- UV Curable Adhesives – Leak-free sealing options like O-Pro® technology ensure clean, consistent performance.
4127C SERIES™
- All stainless steel construction for corrosion resistance over a wider pH range
- ProPort™ casing utilizes mounting pads on each port designed to fit a variety of different flange types and sizes, enabling flexibility when connecting pumps to piping
- U-Plus™ bracket, available on H-QS sizes, offers seal location to be in the stuffing box or behind the rotor
| CAPACITY | VISCOSITY | PRESSURE | TEMPERATURE |
| to 320 GPM to 73 m³/h |
28 to 2,000,000 SSU 0.1 to 440,000 cSt |
to 150 PSI to 10 BAR |
-120°F to +500°F -85°C to +260°C |

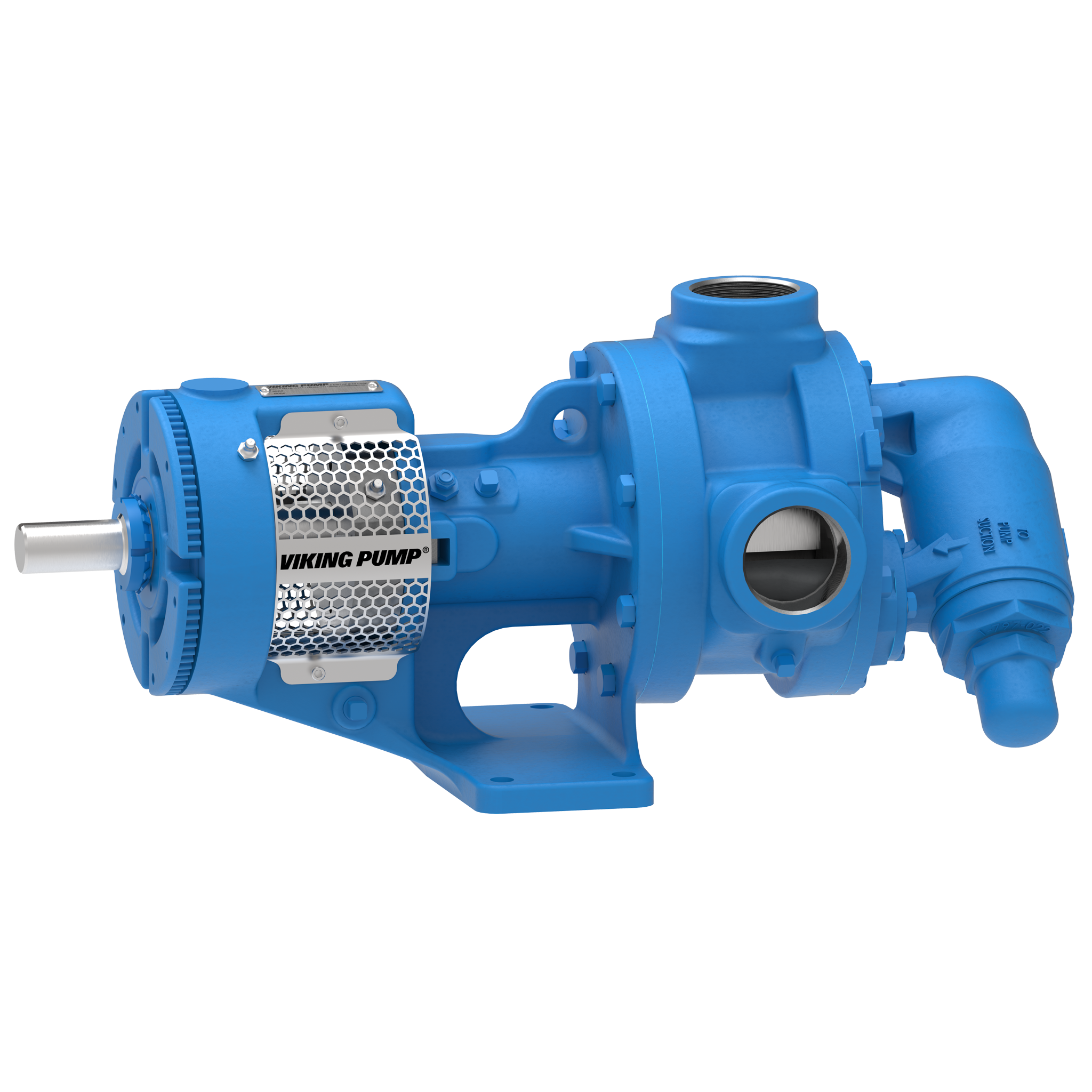

1124A Series™ Pumps: Clean, Reliable Performance for Adhesive Applications
When precision and reliability matter most, Viking Pump’s 1124A Series™ delivers. Designed for demanding adhesive applications, this pump series combines rugged construction with advanced sealing technology to handle everything from viscous fluids to abrasive compounds—without the leaks.
Where the 1124A Series™ Excels:
- Abrasive Adhesives – Built to withstand wear from fillers and particulates, the 1124A Series™ comes standard with Viking’s patented O-Pro® Barrier Seal, offering leak-free operation and extended service life.
- Packaging & Assembly Adhesives – Ideal for small-volume dispensing in automated or manual systems, the 1124A Series™ ensures consistent flow and clean application.
- General Industrial Adhesives – Whether you're moving polyvinyl acetate, starch blends, or polymer-based adhesives, the 1124A Series™ provides smooth, efficient transfer with minimal maintenance.
1124A SERIES™
- Rugged design provides superior performance in many markets
- Tight clearances offer high efficiency and excellent priming capabilities
- O-Pro® Barrier combines reliable sealing with easy maintenance
- O-Pro® Barrier is standard with FKM elastomers
| CAPACITY | VISCOSITY | PRESSURE | TEMPERATURE |
| 1.8 to 91 m³/h 8 to 400 GPM |
100 to 2,000,000 SSU 20 to 440,000 cSt |
to 200 PSI to 14 BAR |
0 to+350 °F -15 to +175 °C |
SG Series™ Pumps: Precision Dispensing for Adhesive Packaging & Assembly
When your adhesive application demands accuracy, consistency, and compact performance, Viking Pump’s SG Series™ external gear pumps deliver. Designed for manual and automated dispensing of small adhesive volumes, the SG Series™ is ideal for packaging, labeling, and parts assembly operations where clean, controlled flow is critical.
Perfect for Precision Applications
- Packaging Adhesives – Whether sealing cartons or applying envelope glue, SG Series™ pumps provide smooth, repeatable flow for high-speed packaging lines.
- Parts Assembly – In electronics, automotive, or consumer goods manufacturing, SG Series™ pumps offer tight control for applying adhesives in small, exact quantities.
- Labeling & Coating – For adhesives used in labeling or surface coating, SG Series™ pumps ensure uniform application without waste or mess.
SG SERIES™
- Needle bearings provide high pressure capabilities, sleeve bear options available
- Close-coupled motor mount or foot bracket options to match space or motor requirements
- Double pump configurations offer two flow rates operating from a single power source, reducing equipment costs
| CAPACITY | VISCOSITY | PRESSURE | TEMPERATURE |
| to 190 GPM to 43 m³/h |
28 to 1,000,000 SSU 1 to 250,000 cSt |
to 500 PSI to 34 Bar |
-40 to +450 °F -40 to +230 °C |

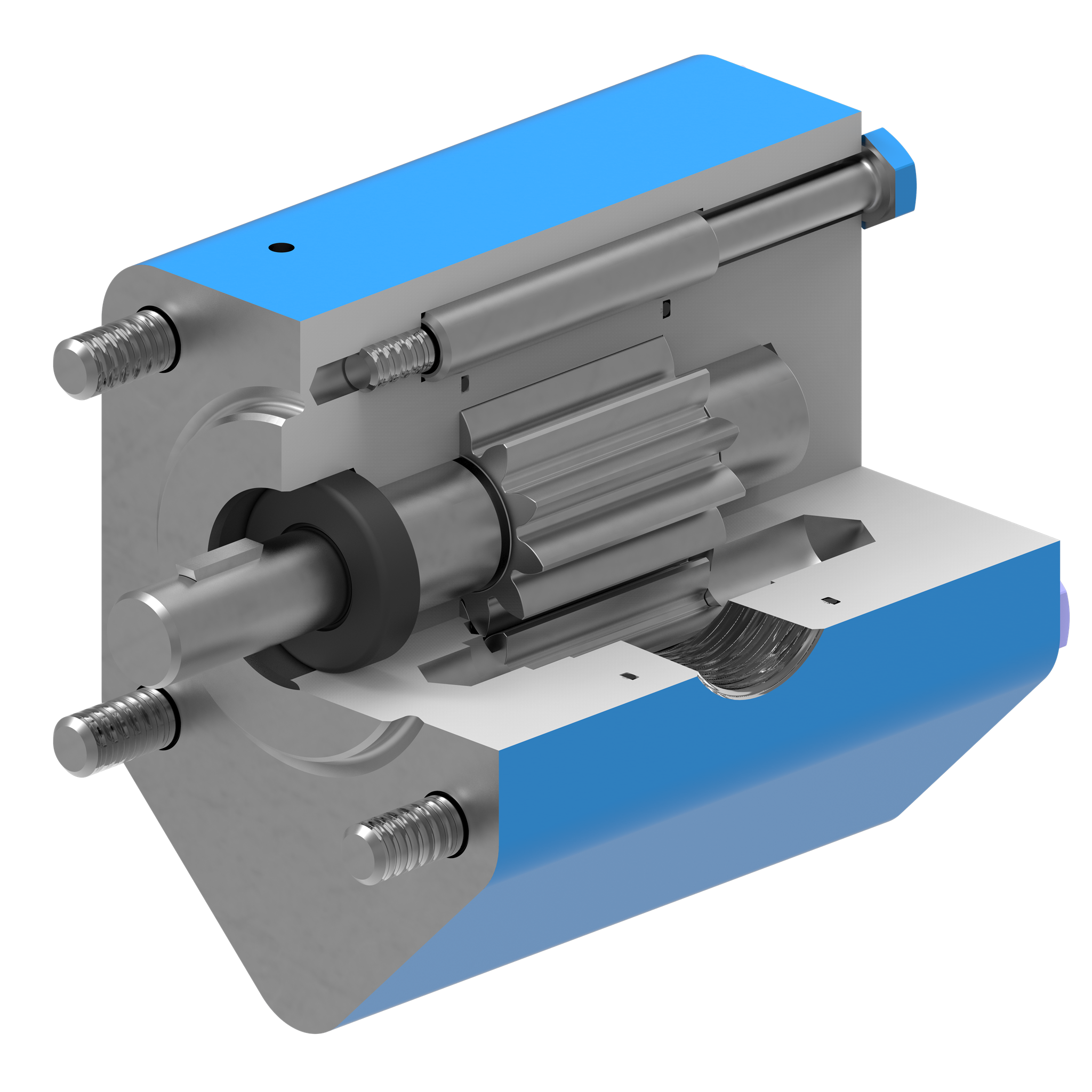

O-Pro® Barrier Seal: Leak-Free Protection for Adhesive Pumping
Adhesive applications are tough on pumps—especially when dealing with abrasive, viscous, or reactive materials. Viking Pump’s patented O-Pro® Barrier Seal is a game-changing solution designed to eliminate leakage, reduce maintenance, and extend pump life in the most demanding environments.
The O-Pro® Barrier Seal uses a series of O-rings and a lubricant chamber to create a positive seal between the pump shaft and casing. This design prevents adhesive from escaping while keeping contaminants out, even in high-viscosity or abrasive conditions. Unlike traditional packing, the O-Pro® seal is self-lubricating, maintenance-friendly, and leak-free.
With over 110 years of experience providing positive displacement pumping solutions, Viking Pump has a rich, lengthy history of providing engineered solutions for tough applications. We have dedicated sales and field support specialists who are supported by a team of customer service representatives and engineers. Our knowledgeable team of application engineers available to help with product selection and technical support. USA based company with vertically integrated manufacturing facility.
ALL PUMPS FACTORY TESTED
Our state-of-the-art testing equipment is used to confirm performance prior to shipments. Our world-class lab gives Viking Pump the ability to test our pump designs across a range of relevant variables.
TEST LAB
Our world-class lab gives Viking the ability to test its glycol pump designs across a range of relevant variables.

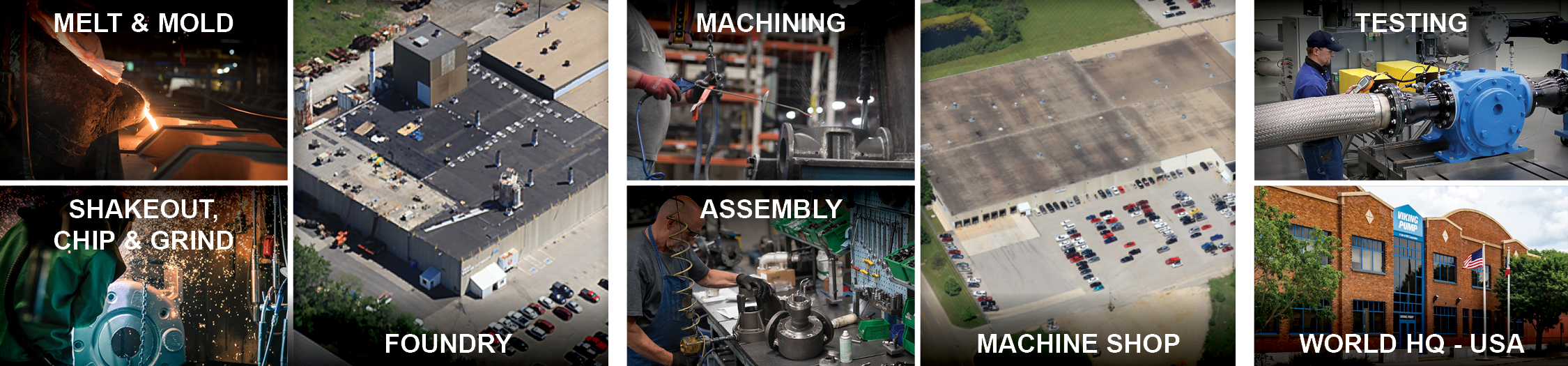

VERTICALLY INTEGRATED PRODUCTION PROCESS
Viking Pump operates a foundry, a 200,000+ sq. ft. machining, assembly and testing center, and an extensive product engineering and testing lab in its world headquarters in Cedar Falls, Iowa, USA. This level of vertical integration ensures maximum quality, ability to satisfy special needs, and to meet project schedules.
