1.8 till 91 m³/h
8 till 400 GPM
100 till2,000,000 SSU
20 till 440,000 cSt
till 14 BAR
till 200 PSI
-15 till +175 °C
0 till +350 °F
| Modell | Standard portstorlek | Nominell pumpkapacitet (GPM) | Nominell pumpkapacitet (m³/h) | Maximalt varvtal | Maximalt tryck PSI | Maximalt tryck BAR |
|---|---|---|---|---|---|---|
| H1124A | 1.5 | 8 | 1.8 | 1000 | 200 | 14 |
| HL1124A | 1.5 | 18 | 4 | 1000 | 200 | 14 |
| K1124A | 2 | 80 | 18 | 780 | 200 | 14 |
| KK1124A | 2 | 100 | 23 | 780 | 200 | 14 |
| LQ1124A | 2 | 135 | 31 | 640 | 200 | 14 |
| LQ1124A | 2.5 | 135 | 31 | 640 | 200 | 14 |
| LL1124A | 3 | 140 | 32 | 520 | 200 | 14 |
| LS1124A | 3 | 200 | 45 | 640 | 200 | 14 |
| Q1124A | 4 | 275 | 62 | 470 | 200 | 14 |
| QS1124A | 6 | 400 | 91 | 470 | 200 | 14 |
| H1124A with Plain Head - 1.5" NPT RH/LH |
|
|
| H1124A with Relief Valve - 1.5" NPT RH/LH |
|
|
| HL1124A with Plain Head - 1.5" NPT RH/LH |
|
|
| HL1124A with Relief Valve - 1.5" NPT RH/LH |
|
|
| K1124A with Plain Head - 2" NPT RH/LH |
|
|
| K1124A with Relief Valve - 2" NPT RH/LH |
|
|

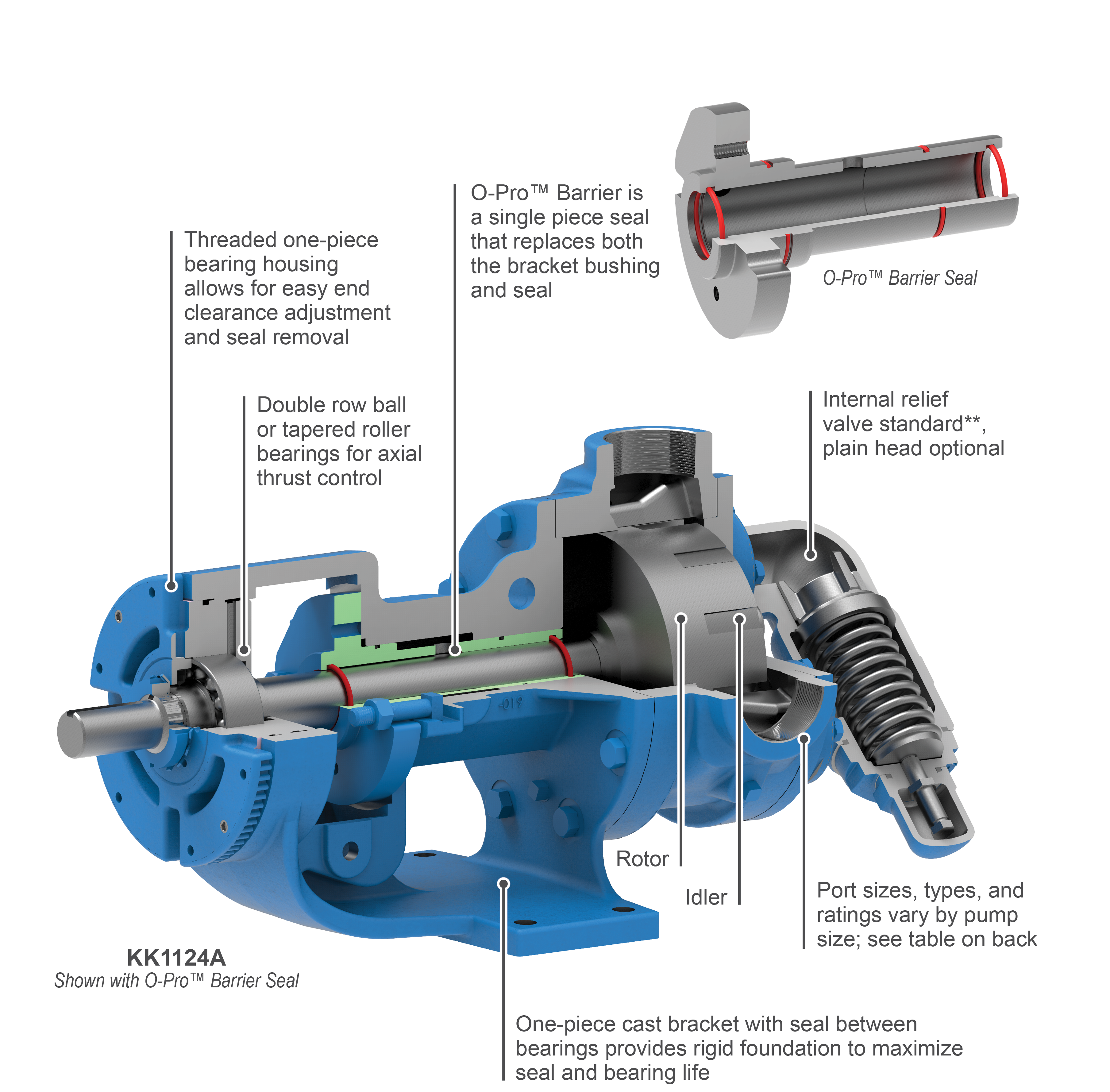

| KK1124A with Plain Head - 2" NPT RH/LH |
|
|
| KK1124A with Relief Valve - 2" NPT RH/LH |
|
|
| L1124A with Plain Head - 2" NPT RH |
|
|
| L1124A with Relief Valve - 2" NPT RH |
|
|
| LL1124A with Plain Head - 3" Class 125 ANSI RH/LH |
|
|
| LL1124A with Relief Valve - 3" Class 125 ANSI RH |
|
|
| LQ1124A with Jacketed Relief Valve - 2.5" Class 125 ANSI RH |
|
|
| LQ1124A with Plain Head - 2.5" Class 125 ANSI RH/LH |
|
|
| LQ1124A with Relief Valve - 2.5" Class 125 ANSI RH/LH |
|
|
| LS1124A with Plain Head - 3" Class 125 ANSI RH/LH |
|
|
| LS1124A with Relief Valve - 3" Class 125 ANSI RH |
|
|
| QS1124A with Plain Head - 6" Class 125 ANSI Opposite |
|
|
| QS1124A with Relief Valve - 6" Class 125 ANSI Opposite |
|
|
