La pompe à engrenage interne en acier inoxydable de la 127C Series™ est la solution flexible, simple et adaptable pour une large gamme d'applications. Cette nouvelle génération de pompes est équipée en standard du support U-Plus™ étanche avec garniture, du joint de garde O-Pro®, ainsi que du corps ProPort™ qui s'adapte à une variété de tailles et de types d'orifices en fonction de vos besoins. Il peut gérer des débits allant jusqu'à 73 m³/h (320 GPM).
Caractéristiques et Avantages
- Construction entièrement en acier inoxydable pour une résistance à la corrosion sur une plus large gamme de pH
- Le boîtier ProPort™ utilise des patins de montage sur chaque port conçus pour s'adapter à une variété de types et de tailles de brides différentes, ce qui permet une flexibilité lors du raccordement des pompes à la tuyauterie
- Le support U-Plus™, disponible sur les tailles H-QS, permet de placer le joint dans le presse-étoupe ou derrière le rotor
- L'orifice opposé est disponible sur toutes les tailles de pompes
Capacité
à 320 GPM
à 73 m³/h
Viscosité
28 à 2,000,000 SSU
0.1 à 440,000 cSt
Pression
à 150 PSI
à 10 BAR
Température
-120°F à +500°F
-85°C à +260°C
Options
Raccords
Angle droit (90°) (corps rotatif), H-Q
Opposite (180°) (Rotatable Casing), H-QS
NPT
À bride (compatible ASME/ANSI ou DIN)
Entraînements
Entraînement réducteur déporté R
Entraînement réducteur acheté P
Entraînement montage direct D, H-HL
Entraînement V | Entraînement par courroie en V
Montage
Pose sur pied
Étanchéité

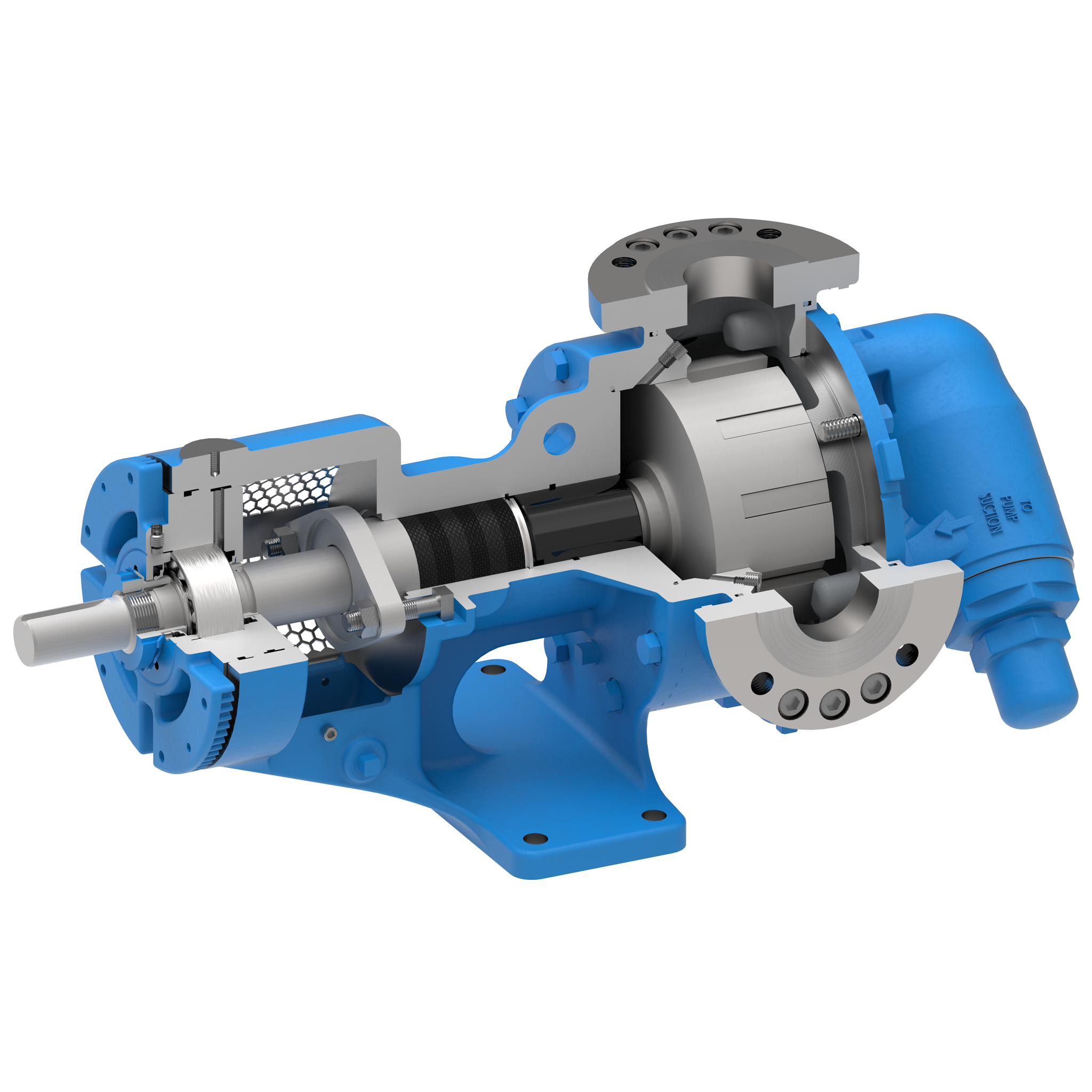

Garniture
Spécifications
| Model | Standard Port Size (inches) | Nominal Pump Rating (GPM) | Nominal Pump Rating (m3/h) | Maximum RPM | Maximum Pressure (PSI) | Maximum Pressure (BAR) |
|---|---|---|---|---|---|---|
| H127C | 1.5 in. | 10 GPM | 1.9 m³/h | 1150 RPM | 150 PSI | 10 BAR |
| HL127C | 1.5 in. | 20 GPM | 3.7 m³/h | 1150 RPM | 150 PSI | 10 BAR |
| K127C | 2 in. | 50 GPM | 11 m³/h | 520 RPM | 150 PSI | 10 BAR |
| L127C | 2.5 in. | 100 GPM | 23 m³/h | 520 RPM | 150 PSI | 10 BAR |
| LL127C | 3 in. | 135 GPM | 31 m³/h | 520 RPM | 150 PSI | 10 BAR |
| LS127C | 3 in. | 160 GPM | 36 m³/h | 520 RPM | 125 PSI | 9 BAR |
| Q127C | 4 in. | 200 GPM | 45 m³/h | 350 RPM | 175 PSI | 12 BAR |
| QS127C | 6 in. | 320 GPM | 73 m³/h | 350 RPM | 175 PSI | 12 BAR |
