The 4195 Series™ internal gear pump is the perfect solution for refined fuels, lube oils, rotating equipment lubrication, and more due to its high speed operation for thin to moderate viscosity applications. It can handle flows up to 580 GPM (132 m³/h).
Features & Benefits
- The most compact gear pump series available to fit tight space constraints
- High speed operation for the most economical pump option for thin to moderate viscosity applications
- Vertical mounting options to further reduce the unit footprint
Capacity
to 580 GPM
to 132 m³/h
Viscosity
28 to 15,000 SSU
1 to 3,300 cSt
Pressure
to 250 PSI
to 17 Bar
Temperature
-40 to +300 °F
-40 to +150 °C
Options
Porting
Drives
Mounting
Sealing
Specifications
Model | NPT Ports (in) | Flange Ports Class 125 (in) | Flange Ports DIN PN-16 (mm) | Nominal Pump Rating (60hz) GPM | Nominal Pump Rating (60hz) m3/h | Maximum RPM | Maximum Pressure PSI | Maximum Pressure BAR |
---|---|---|---|---|---|---|---|---|
G4195 | 1" | - | - | 8 | 1.8 | 1750 | 250 | 17 |
GG4195 | 1" | - | - | 10 | 2.3 | 1750 | 250 | 17 |
H4195 | 1.5" | - | - | 15 | 3.4 | 1750 | 250 | 17 |
HJ4195 | 1.5" | - | - | 20 | 4.5 | 1750 | 250 | 17 |
HL4195 | 1.5" | - | - | 30 | 6.8 | 1750 | 250 | 17 |
AS4195 | 2.5" | - | - | 55 | 12 | 1750 | 250 | 17 |
AK4195 | 2.5" | - | - | 85 | 19 | 1750 | 250 | 17 |
AL4195 | 3" | - | - | 115 | 26 | 1750 | 250 | 17 |
KE4195* | - | 4 | 100 | 150 | 34 | 1750 | 150 | 10 |
KKE4195* | - | 4 | 100 | 205 | 47 | 1750 | 150 | 10 |
LQE4195* | - | 4 | 100 | 235 | 53 | 1150 | 150 | 10 |
LSE4195* | - | 4 | 100 | 350 | 80 | 1150 | 150 | 10 |
Q4195* | - | 6 | 150 | 460 | 104 | 750 | 150 | 10 |
QS4195* | - | 6 | 150 | 580 | 132 | 640 | 150 | 10 |
Videos

Refined Fuels
Refined fuels would include petroleum based fuel oils and some Jet Fuels. Their viscosity and temperature handled can vary greatly. Normally these are handled in bulk transfer operations.

Lube Oil (Machinery Lubrication)
Machinery lubrication pumps are used in everything from small backup generators to naval ships. Lube oils, as the name implies, are the liquids used to lubricate rotating and reciprocating machinery. Lube oils may be handled at higher pressures to ensure their penetration of the equipment.

Glycol (Ethylene Glycol, Ethylene Alcohol)
A clear, colorless, syrupy liquid used in a variety of applications involving lacquers, resins, printing inks, adhesives, waxes, and pharmaceuticals. It is often blended with water and used as a coolant and anti-freezing agent.
Technical Service Manuals
Catalog Sections
Product Flyers

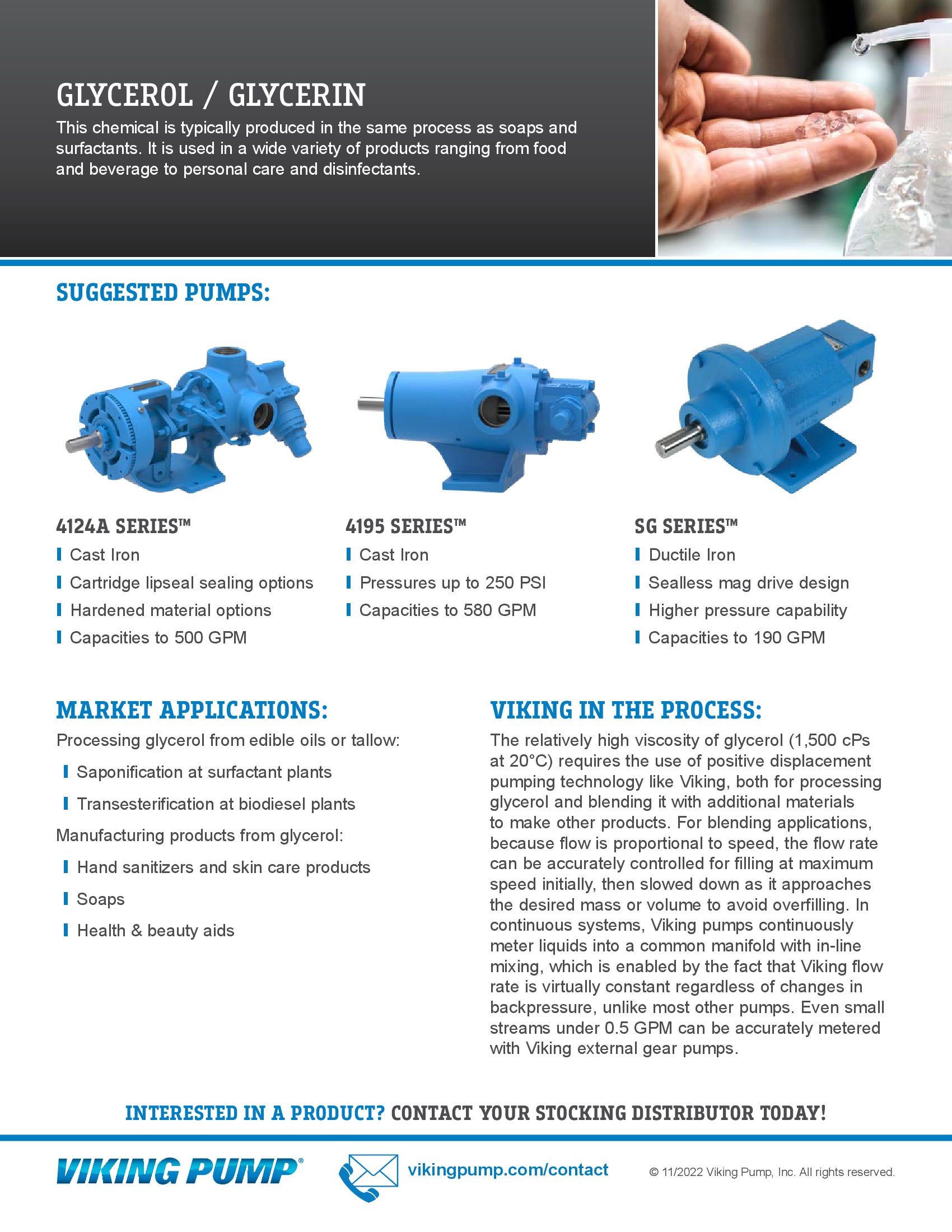

Application Flyers
Application Flyers
Application Flyers
-
DRAWINGS
AK4195 with Relief Valve - 2.5" NPT PDF
STEP
AS4195 with Relief Valve - 2.5" NPT PDF
STEP
AL4195 with Relief Valve - 3" NPT PDF
STEP
AS4195 with Plain Head - 2.5" NPT PDF
STEP
AK4195 with Plain Head - 2.5" NPT PDF
STEP
AL4195 with Plain Head - 3" NPT PDF
STEP
G4195 with Relief Valve - 1" NPT Opposite PDF
STEP
GG4195 with Relief Valve - 1" NPT Opposite PDF
STEP
G4195 with Plain Head - 1" NPT Opposite PDF
STEP
GG4195 with Plain Head - 1" NPT Opposite PDF
STEP
H4195 with Relief Valve - 1.5" NPT Opposite PDF
STEP
HJ4195 with Relief Valve - 1.5" NPT Opposite PDF
STEP
HL4195 with Relief Valve - 1.5" NPT Opposite PDF
STEP
H4195 with Plain Head - 1.5" NPT Opposite PDF
STEP
HJ4195 with Plain Head - 1.5" NPT Opposite PDF
STEP
HL4195 with Plain Head - 1.5" NPT Opposite PDF
STEP
KE4195 with Relief Valve - 4" Class 125 ANSI Opposite PDF
STEP
KKE4195 with Relief Valve - 4" Class 125 ANSI Opposite PDF
STEP
KE4195 with Plain Head - 4" Class 125 ANSI Opposite PDF
STEP
KKE4195 with Plain Head - 4" Class 125 ANSI Opposite PDF
STEP
LQE4195 with Plain Head - 4" Class 125 ANSI Oppsite PDF
STEP
LSE4195 with Plain Head - 4" Class 125 ANSI Oppsite PDF
STEP
LQE4195 with Relief Valve - 4" Class 125 ANSI Oppsite PDF
STEP
LSE4195 with Relief Valve - 4" Class 125 ANSI Oppsite PDF
STEP
Q4195 with Relief Valve - 6" Class 125 ANSI Opposite PDF
STEP
QS4195 with Relief Valve - 6" Class 125 ANSI Opposite PDF
STEP
Q4195 with Plain Head - 6" Class 125 ANSI Opposite PDF
STEP
QS4195 with Plain Head - 6" Class 125 ANSI Opposite PDF
STEP
