Presión de funcionamiento máxima permisible

Glossary Right Side Image

Other Versions

MAWP

Classification

Definition

La presión máxima continua para la que está diseñada la bomba.
Cálculo: La MAWP se puede determinar como el límite de presión más bajo para los tres componentes siguientes:
1) Sello del eje.
2) Sellos de las juntas.
3) Conexiones de los puertos.

What is maximum allowable working pressure (MAWP)?

Maximum allowable working pressure (MAWP), is the maximum continuous pressure for which the pump is designed to handle.

How to calculate maximum allowable working pressure?

Maximum allowable working pressure can be established as the lowest pressure limit of the following 3 components:
1) Shaft Seal
2) Joint Seals
3) Port Connections

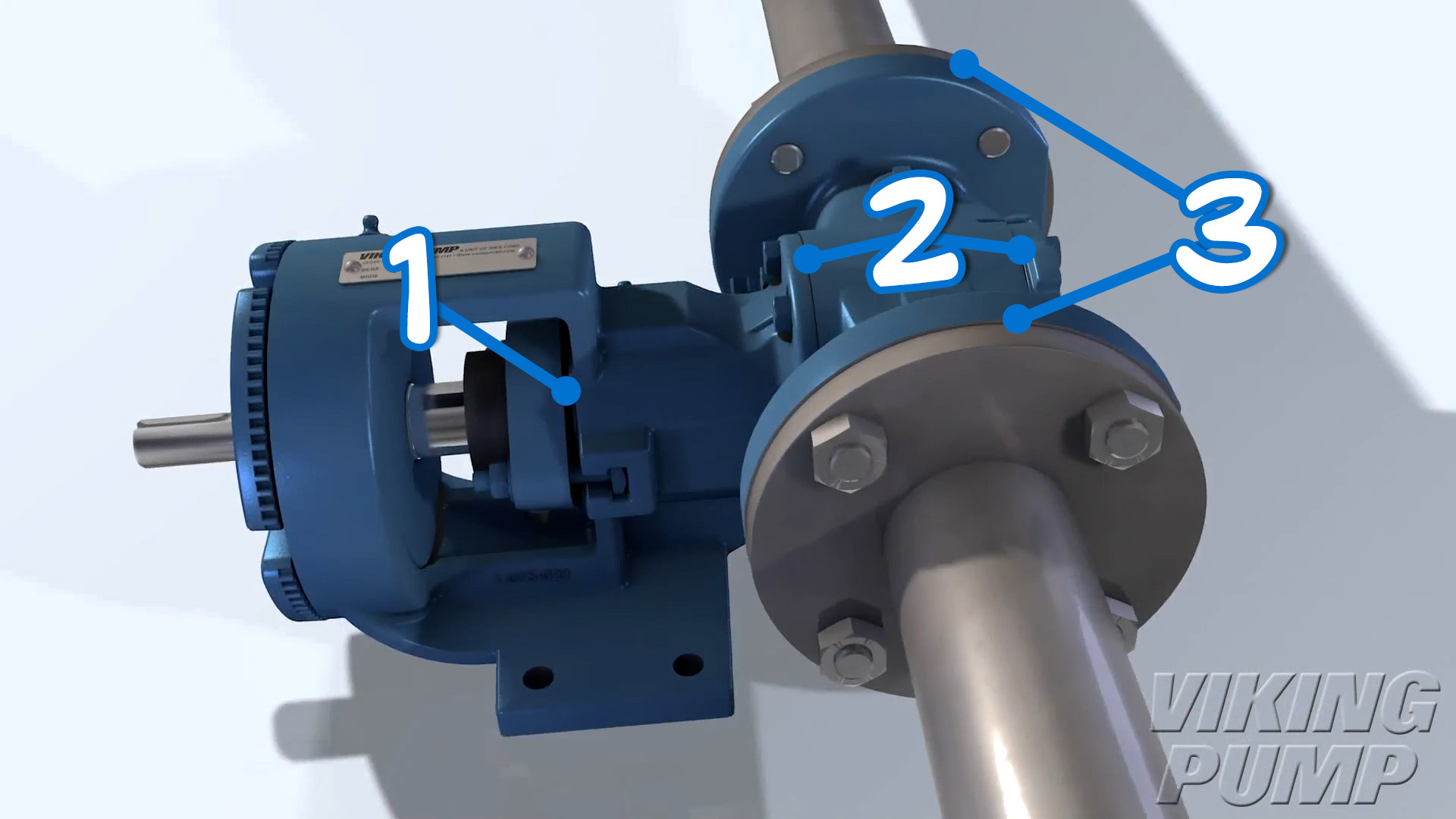

Image showing the pump and system components that are used to calculate the maximum allowable working pressure. The lowest pressure limit of these three locations will equal the MASP.

Why is knowing maximum allowable working pressure important?

Knowing the maximum allowable working pressure is important so that the pump is operated safely. Exceeding the MAWP can lead to damaging the pump or system.
