Maximal zulässiger Gehäusedruck

Glossary Right Side Image

Other Versions

MACP

Classification

Definition

Maximaler Nenndruck der druckbeaufschlagten Pumpenkomponenten, ohne Wellendichtung, aber einschließlich des Tanks bei Magnetkupplungspumpen.
Berechnung: Der MACP kann für die meisten Pumpenmodelle als Druckgrenze der Anschlussarmaturen festgelegt werden. Bei Magnetkupplungspumpen kann er als hydrostatische Grenze des Behälters geteilt durch 1,5 betrachtet werden.

What is maximum allowable casing pressure (MACP)?

Maximum allowable casing pressure is the maximum rated pressure of the pressure containing components of the pump. This rating does not include the seal. However, this rating does include the canister in Mag Drive pumps.

How to calculate maximum allowable casing pressure

Maximum allowable casing pressure (MACP) can be established as the pressure limit of the port connections for most pump models. In the case of Mag Drive pumps, it can be considered as the hydrostatic limit of the canister divided by 1.5.

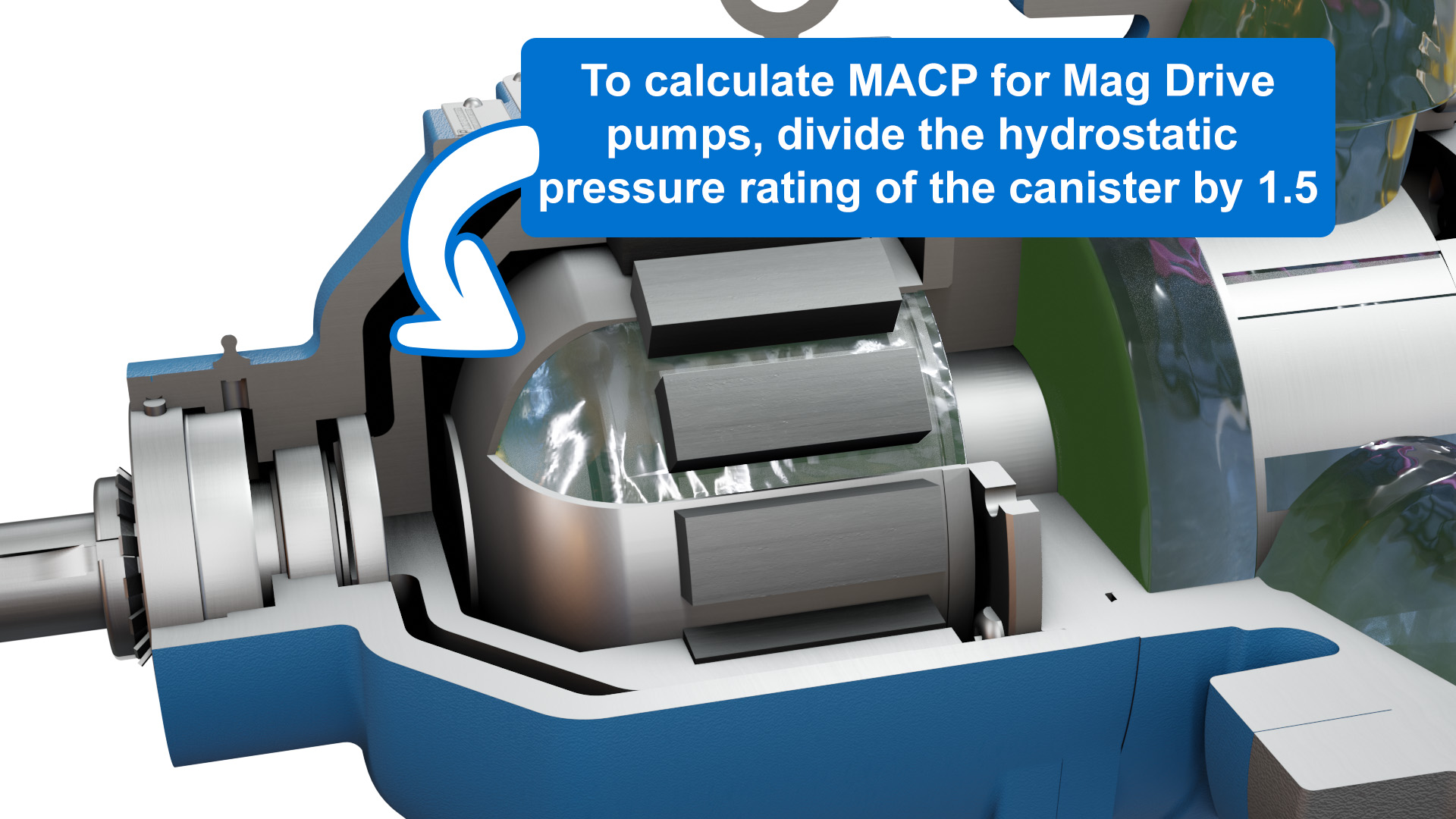

Image of a Mag Drive pump with notes on how to calculate the maximum allowable casing pressure.

Why is knowing maximum allowable casing pressure important?

Knowing the maximum allowable casing pressure is important so that the pump is operated safely. Exceeding the MACP can lead to damaging the pump or system.
