Maximal zulässiger Einlassdruck

Glossary Right Side Image

Other Versions

Maximal zulässiger Saugdruck; MASP

Classification

Definition

Die maximal zulässige Differenz zwischen dem absoluten Druck der Flüssigkeit am Einlass und dem absoluten Umgebungsdruck.
Berechnung: Begrenzt durch dieselben Faktoren wie der maximal zulässige Betriebsdruck (MAWP).

What is maximum allowable inlet pressure (MASP)?

Maximum allowable inlet pressure, also known as maximum allowable suction pressure (MASP), is the maximum allowable difference between the absolute pressure of the fluid at the inlet port and the absolute ambient pressure.

How to calculate maximum allowable inlet pressure?

Maximum allowable inlet pressure can be established as the lowest pressure limit of the following 3 components:
1) Shaft Seal
2) Joint Seals
3) Port Connections

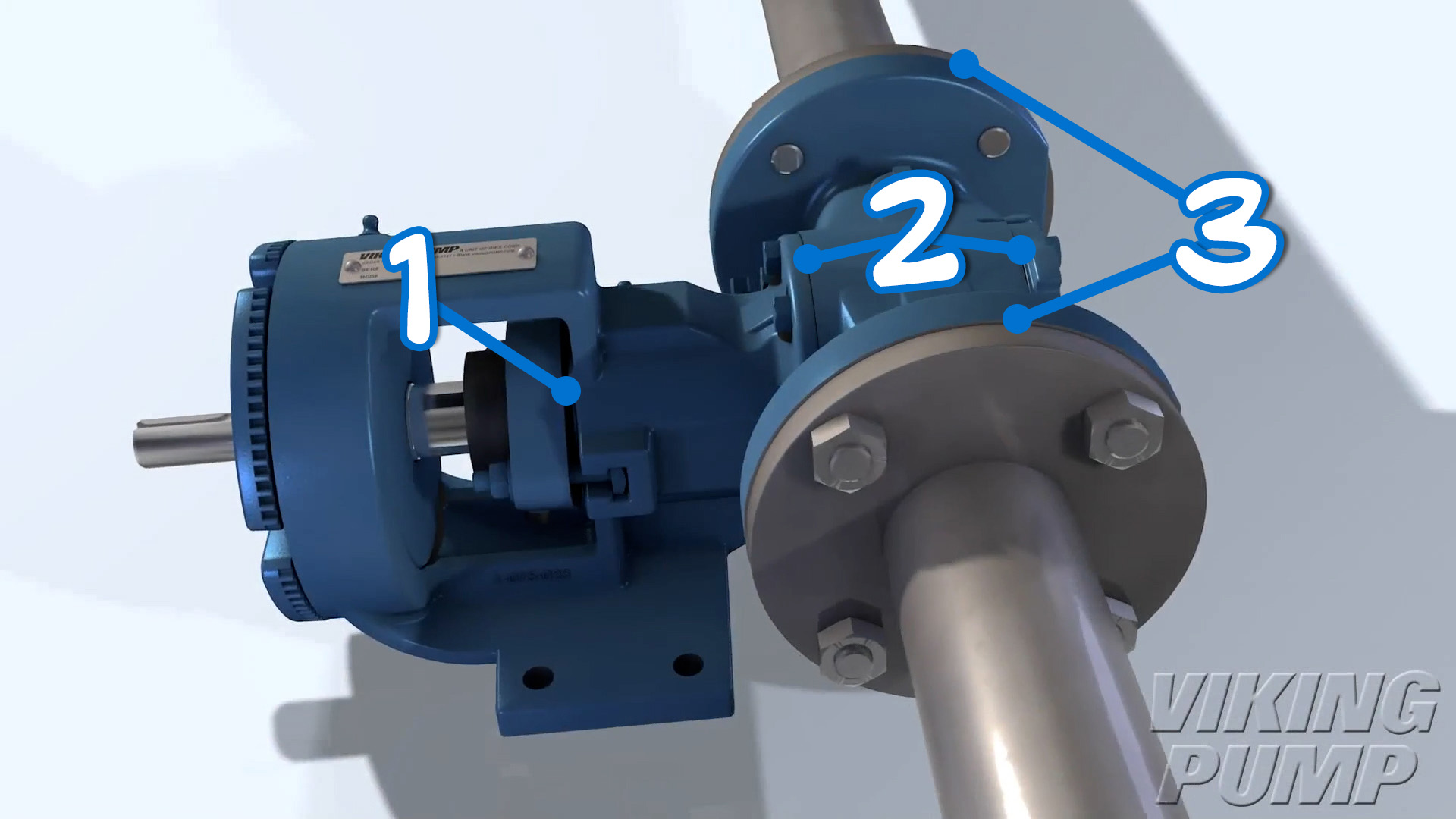

Image showing the pump and system components that are used to calculate the maximum allowable inlet pressure. The lowest pressure limit of these three locations will equal the MASP.

Why is knowing maximum allowable inlet pressure important?

Knowing the maximum allowable inlet pressure is important so that the pump is operated safely. Exceeding the MASP can lead to damaging the pump or system.
