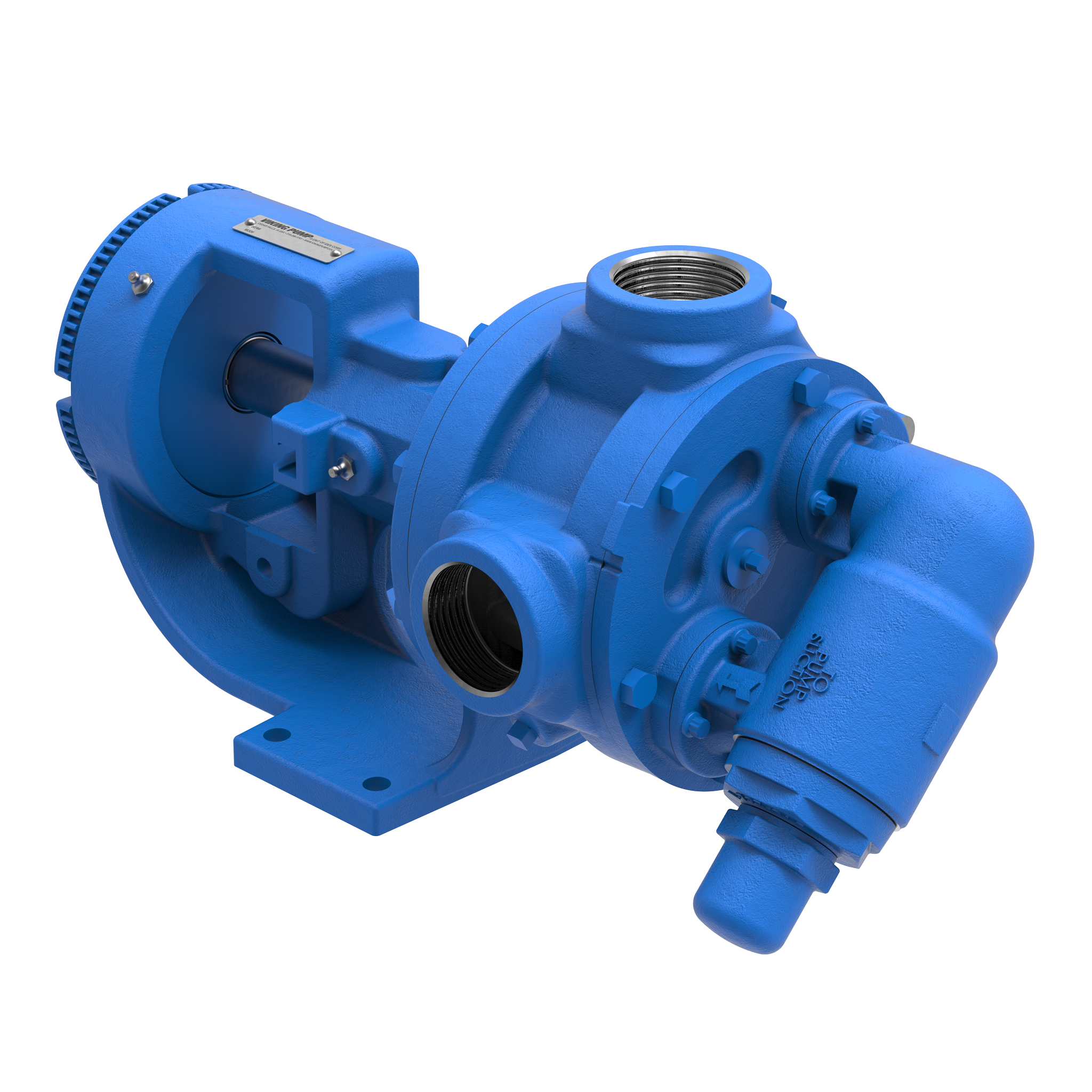

Viking Pump G4124B Model

Section

Capacity

8 GPM
1.8 m³/h

Viscosity

28 to 250,000 SSU
0.1 to 440,000 cSt

Pressure

200 PSI
14 BAR

Temperature

0 to 350°F
-15 to 175°C

Options

Porting

NPT

Right Angle (90°) (Rotatable Casing)

Other port options available

Drives

R Offset Gear Reducer Drive

P Purchased Gear Reducer Drive

D Direct-Mounted Drive

V Drive | V-Belt Drive

Mounting

Foot Mount

Sealing

Component Mechanical Seal

Cartridge Mechanical Seal

TSM / Catalog / Flyers / Brochures

Service Manual | 1400

Service Manual | 1400

Download

Technical Service Manuals

Service Manual | 1461

Service Manual | 1461

Download

Technical Service Manuals

Catalog Section | 1401 | Non-Jacketed

Catalog Section | 1401 | Non-Jacketed

Download

Catalog Sections

Flyer | Form 1401 | 124A / 4124A / 4124B / 324A / 4324A Series

Flyer | Form 1401 | 124A / 4124A / 4124B / 324A / 4324A Series

Download

Product Flyers

Liquid Flyer | Adhesives

Liquid Flyer | Adhesives

Download

Application Flyers

Liquid Flyer | Caulks

Liquid Flyer | Caulks

Download

Application Flyers

REPAIR RESOURCES

Exploded Diagram for Series 4124B - 4224B - 4624B - Sizes G/H/HL/AK/AL/K/KK/L/L…
Viking Pump Universal Seal Series with Behind the Rotor Seal Disassembly, Repair & Reassembly


G4124B with Relief Valve - 1" NPT RH	PDF	STEP

G4124B with Plain Head - 1" NPT RH	PDF	STEP
